3.3.2 Cutting multiple copies of a graphic on the same roll
If the same graphic design has been printed on a roll with equal distance between these
graphics, this feature can be used.

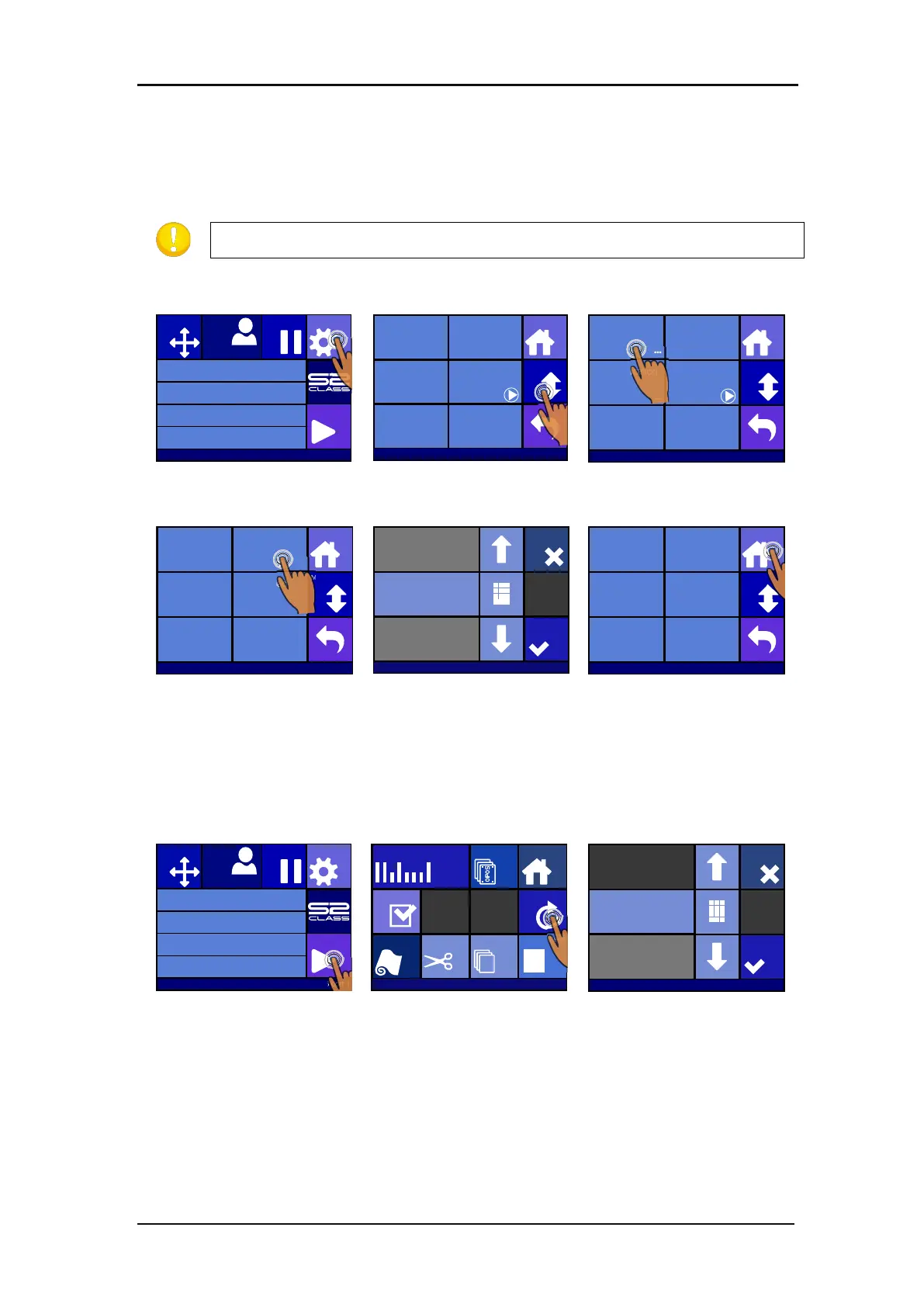

Power on the cutter and load the media.
1.
Press Settings
2.
Press More
3.
Press general
4.
Press Recut offset.
5. Use the arrows to
change the value. Then
press apply.
6. Press Home to get online
again.
7. Make the first copy as you would make a normal OPOS job.
The cutter will stop after the first contour has been cut and will come online again.
8.
Press Actions
9.
Press Replot
10.
Use the
arrows to
change the value. Press
apply.
Knife pressure 95 gr
Velocity 800 mm/s
Tool Tangential knife
Media size 50000 x 718 mm
Actions
Settings
Configuration 1
Pause
Origin
USB port 1
Settings
More
Home
Tool
Tangential knife
Velocity
800 mm/s
Knife pressure
95 gr
Calibrate Knife
FlexCut
...
Advanced cutting
...
Settings
More
Home
General OPOS
Communication Length Calibration
Coil setup
...
Factory defaults
...
... ...
...
Settings | OPOS
More
Home
Autoload
English
Language
Metric
Menu units
On
Media sensor
On
Recut offset
40 mm
Cut off margin
10 mm
Old value: 40 mm
New value: 45 mm
Range: 0 ... 40000 mm
Cancel
Apply
Settings | OPOS
More
Home
Autoload
English
Language
Metric
Menu units
On
Media sensor
On
Recut offset
40 mm
Cut off margin
10 mm
Knife pressure 95 gr
Velocity 800 mm/s
Tool Tangential knife
Media size 50000 x 718 mm
Actions
Settings
Configuration 1
PauseOrigin
USB port 1
Replot
Home
OPOS sheet
mode
OPOS Bar co d e
Cut sheet
Cut offLoad
Reset
Cut tests
USB port 1
Old value: 0.45 mm
New value: 0.43 mm
Range: 0.00 ... 1.00 mm
Settings
Cancel
Apply
Test
Value: 1
Range: 999
Cancel
Apply
USB port 1
NOTE: The distance between the multiple copies should be at least 30mm.
