S CLASS™ 2 cutter User’s Manual
Setup 1-27
Tool Installation
The S CLASS 2 cutters use razor-sharp knives. To avoid serious injury,
be careful when installing, removing or handling the knife!

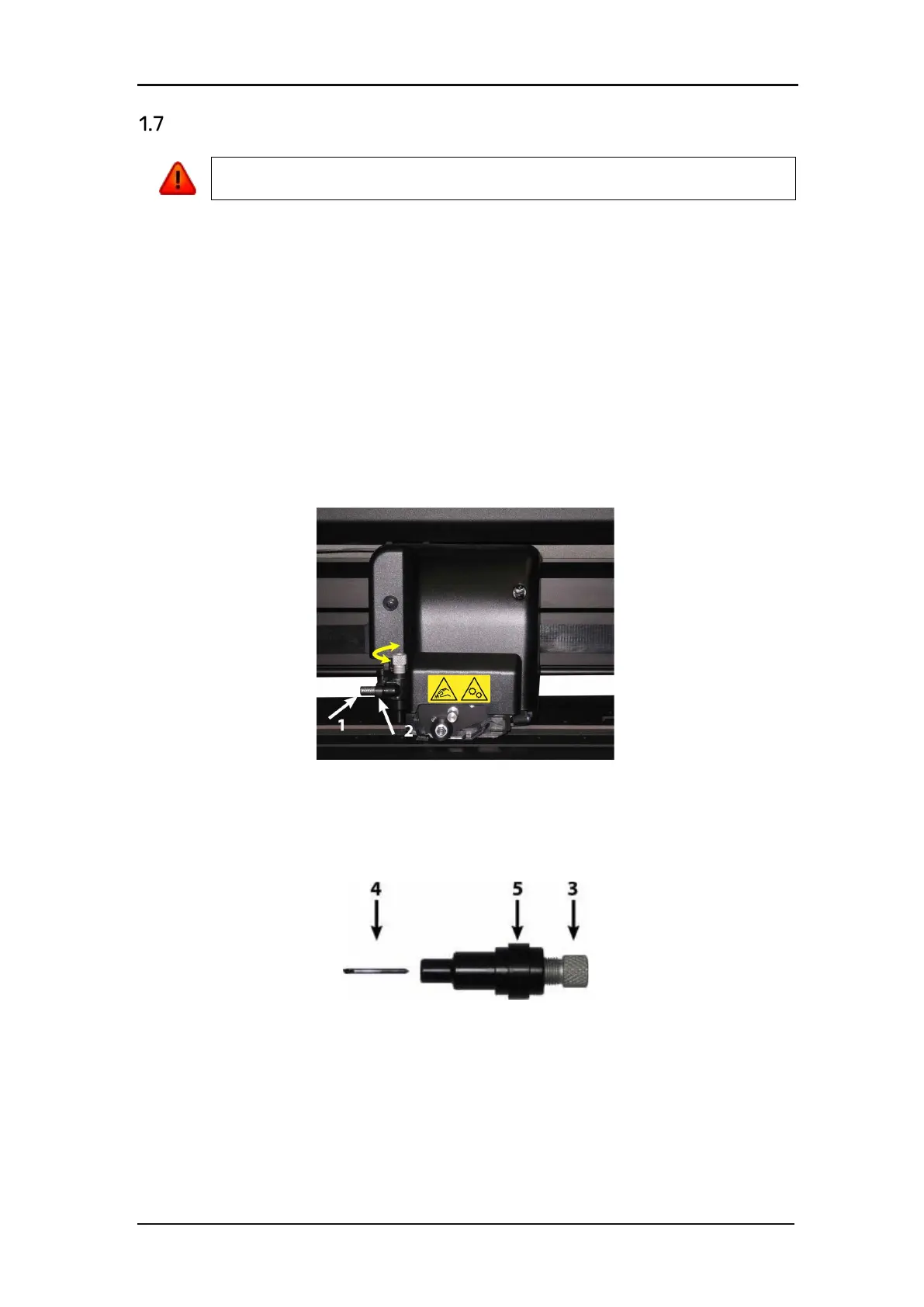

1.7.1 Cutters with drag head
1.7.1.1 Knife installation
A knife is pre-installed in the cutter.
For safety reasons, the knife depth has been set to zero. Simply turn out the knife (see FIG
1-23 yellow arrow clockwise) to start cutting. Please find the complete description of the knife
removal and knife installation below.
Removing the drag knife
1. Loosen the head clamp screw (1), swing the clamp arm back and remove the knife holder
from the clamp (2).
FIG 1-24
1-23 REMOVING THE DRAG KNIFE HOLDER FROM THE CLAMP
2. Turn the knurled adjustment knob (3) clockwise to push the knife (4) out of the holder (5).
FIG 1-25
1-24 REMOVING THE KNIFE FROM THE STANDARD DRAG KNIFE HOLDER
3. Carefully pull the knife from the holder.
