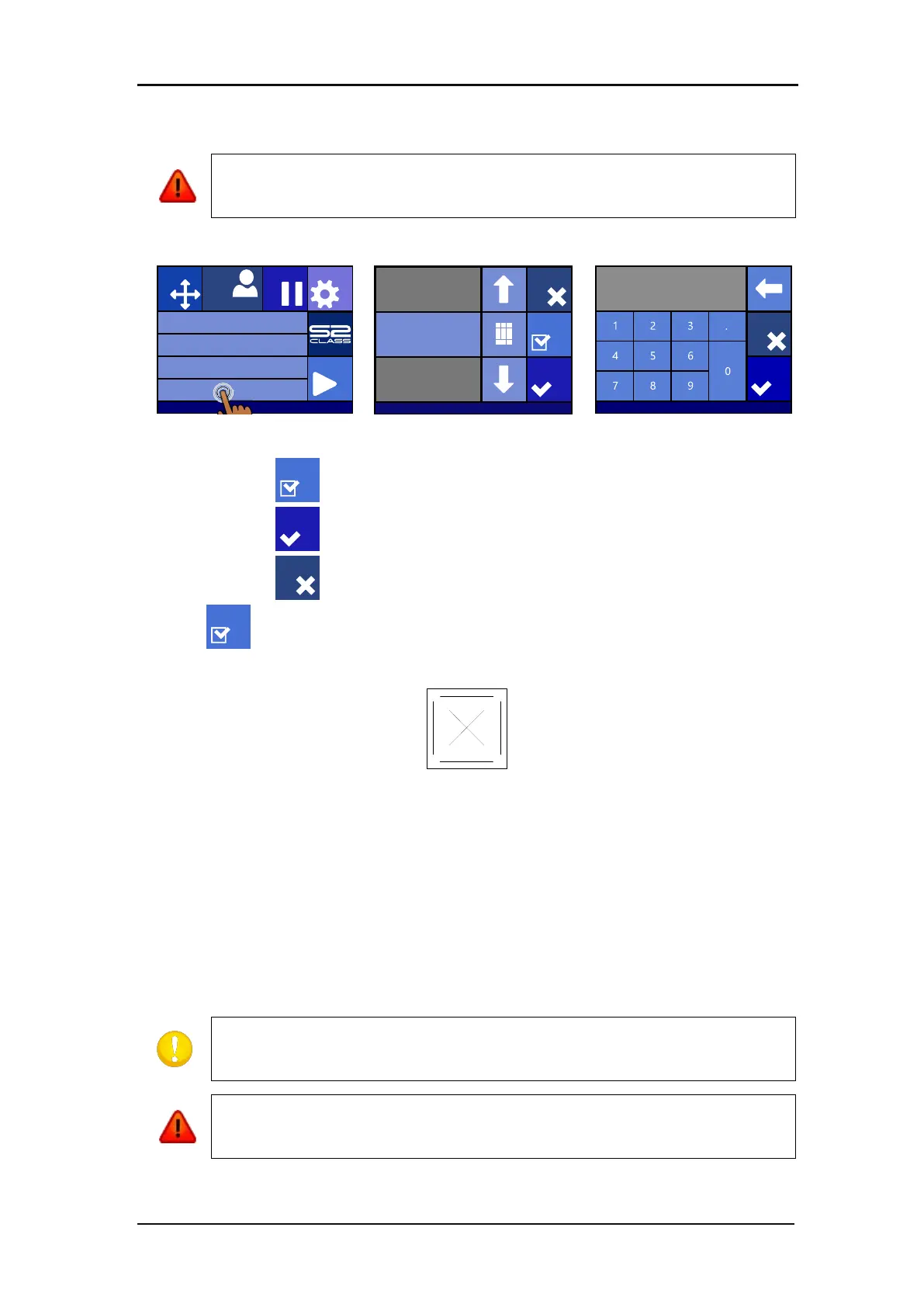

Setting the knife depth and pressure:
Each keystroke can initiate an internal test or movement of the head
or media. Keep fingers and other body parts away from the cutting area. There are
1. Power on the cutter and load the media.
Press on pressure
Press the arrow up or down
Or fill in the new value after
1. Press to perform the internal knife pressure test.
2. Press to confirm the chosen knife pressure and exit the menu.
3. Press to leave the pressure unchanged.
Once is pressed, the current knife pressure value will be set automatically to the
new value and the cutter will cut the knife pressure test pattern.
FIG 1-28
1-27 KNIFE PRESSURE TEST PATTERN
Peel out the rectangle and inspect the media backing.
The knife depth is set correctly when the test pattern cuts completely through the vinyl. and
the blade tip visibly scratched the front side of the media backing when the vinyl is removed.
The blade should never cut in the backing but should only slightly scratch the silicon coating
and first few fibers of the backing material. Because the knife pressure setting depends on the
thickness and type of the media, adjusting the knife pressure will require some practice. In
general, the knife depth must be increased when using thicker types of vinyl and decreased
when using thinner types of vinyl.
After setting the cutting depth and/or the
knife pressure, perform a
thorough visual check of the knife blade, protruding from the knife holder and test
the cutting results on a scrap of vinyl media.
Do not operate the cutter if the knife blade cuts through the media
backing, as this will seriously damage the cutter's rubber cutting strip and the
Knife pressure 95 gr
Velocity 800 mm/s
Tool Tangential knife
Media size 50000 x 718 mm
Actions
Settings
Configuration 1
Pause
Origin
IP: 192.168.1.7
Old value: 85gr
New value: 95gr
Range: 0 ... 600gr
IP:192.168.1.7
Cancel
Apply
Test
Apply
9▌
Eth. 192.168.1.7
Cancel
