Summa S2 SERIES - Replacement of the Separation Knife Blade; Razor Blade for Automatic Separation of Media

S CLASS™ 2 cutter User’s Manual
Setup 1-36
1.7.3 Replacement of the separation knife blade
The tool carriage also holds the separation knife. With this knife (razor blade), the job can be
cut off automatically, after it is finished.
NOTE:
This separation knife should only be used with standard vinyl (max 0.25mm
thick).

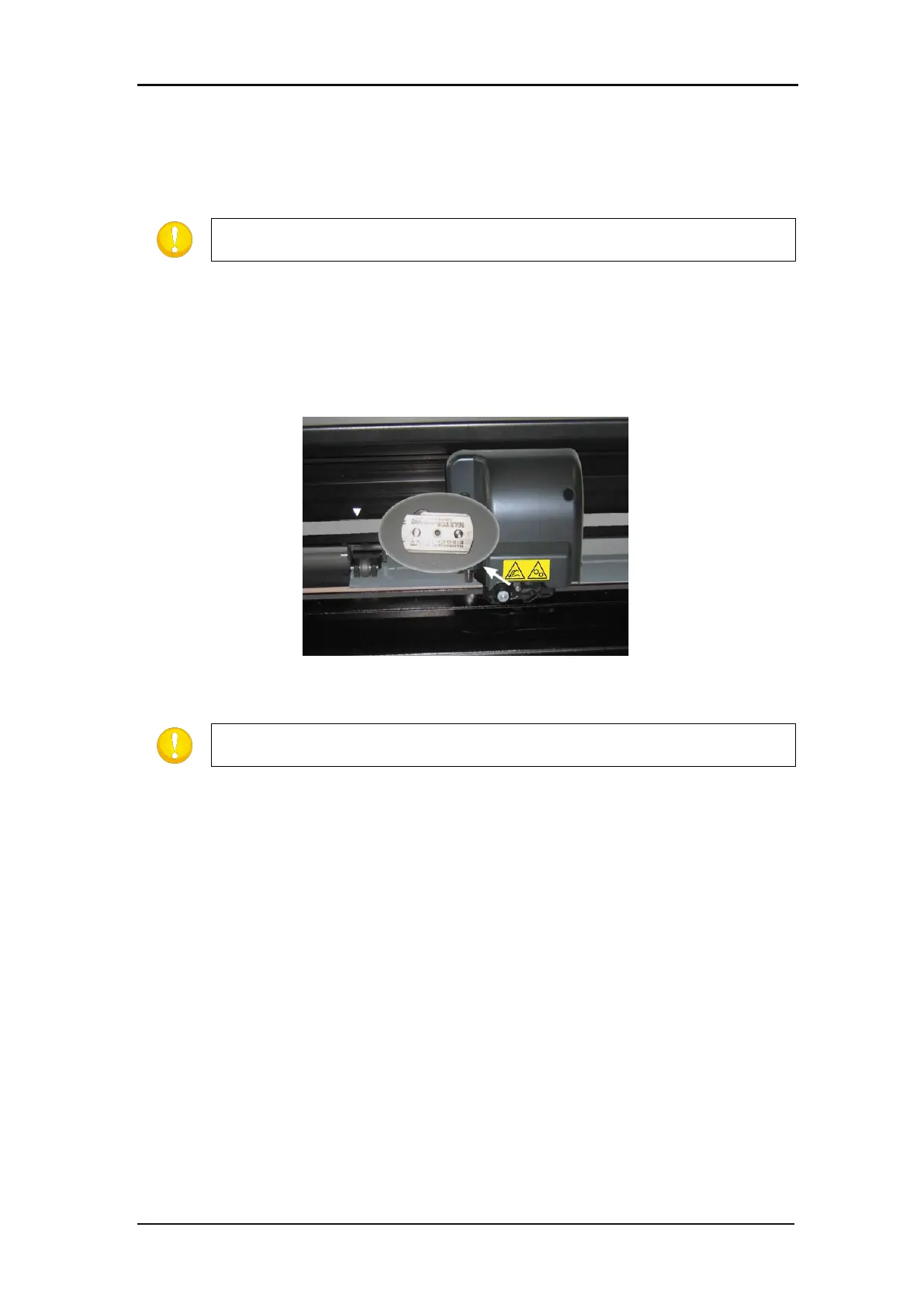

1. Remove the razor blade holder by turning on the knurled screw at the bottom of the tool
carriage.
2. The razor blade is kept in its place by a small magnet. Turn it around or replace it when it
is worn down; figure 1-b.
1-35
1-34 RAZOR BLADE FOR AUTOMATIC SEPARATION OF MEDIA
NOTE:
The assembly is tilted under an angle of +/- 30° when it is put back on the
machine. Mind the position of the assembly before replacing the razor blade.
