Summa S2 SERIES - 2.4 How to make sure the sign has the correct size (Length Calibration)

S CLASS™ 2 cutter User’s Manual
Basic Operation 2-14
How to make sure the sign has the correct size
(Length Calibration)
The S CLASS 2 cutters are friction-feed machines. This means that the cutting length depends
on the thickness of the material.
The cutters have been calibrated in the factory for standard 2-mil cast or 3-mil calendared
vinyl. Each user (the S CLASS 2 has a total of 8) can hold a different calibration factor.
This is very helpful for multi-colored signs. It ensures that the parts in different colors match
up, even if different types of vinyl media are used.
NOTE: For standard use, it is not necessary to calibrate the machine. With standard
vinyl the accuracy is within 0.2%. However, if high accuracy between different vinyl
or colors is needed, then calibration is necessary.
Calibrating the media (Length calibration):
1. Power on the cutter, load the media, and mount the knife (see section 1).
NOTE:
The wider and longer the loaded media, the more accurate the calibration
will be. Use a piece of vinyl of maximum width and a length that is approximately
1.5 times the width.

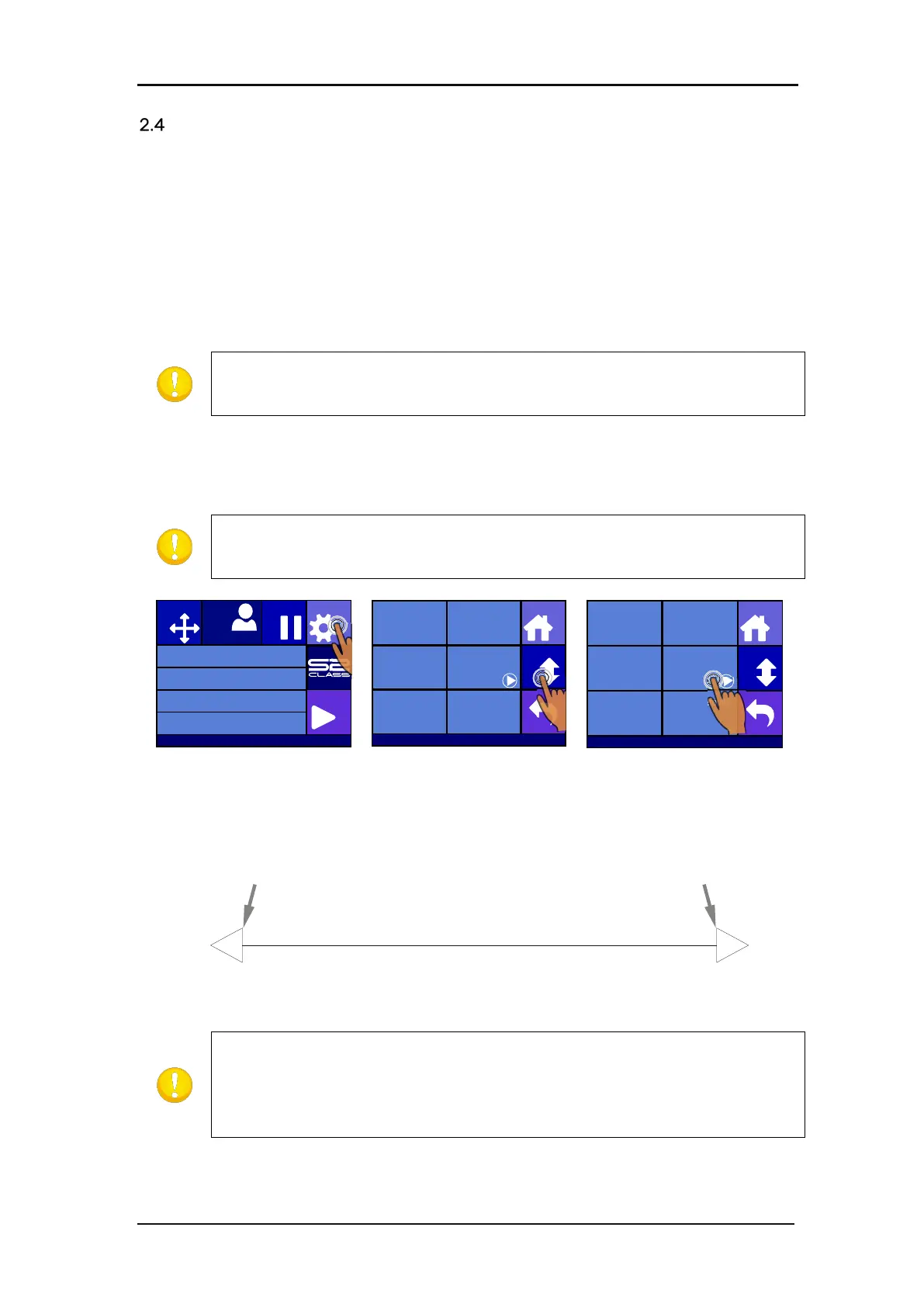

2.
Press Settings
3.
Press More
4.
Press length calibration.
The cutter will reload the media and perform the length calibration test. Take out the media
and measure the length of the cut line with a ruler (measuring device). The length that has
to be entered is the distance between line 1 and line 2 as shown in the figure below.
1 2
FIG 2-7
2-7 LENGTH CALIBRATION PATTERN
NOTE: The cutter will only be as accurate as the accuracy of the calibration itself.
If the ruler (measuring device) is inaccurate, then re-calibrating may worsen the
cutter’s accuracy. The accuracy of the calibration will be reflected directly in the
cuts. Set the cutter to Metric to do the calibration. It is more accurate than the
English unit system (see section Menu Units:).
Knife pressure 95 gr
Velocity 800 mm/s
Tool Tangential knife
Media size 50000 x 718 mm
Actions
Settings
Configuration 1
Pause
Origin
USB port 1
Settings
More
Home
Tool
Tangential knife
Velocity
800 mm/s
Knife pressure
95 gr
Calibrate Knife
FlexCut
...
Advanced cutting
...
Settings
More
Home
General
OPOS
Communication
Length Calibration
Coil setup
...
Factory defaults
...
... ...
...
