S CLASS™ 2 cutter User’s Manual
Setup 1-21

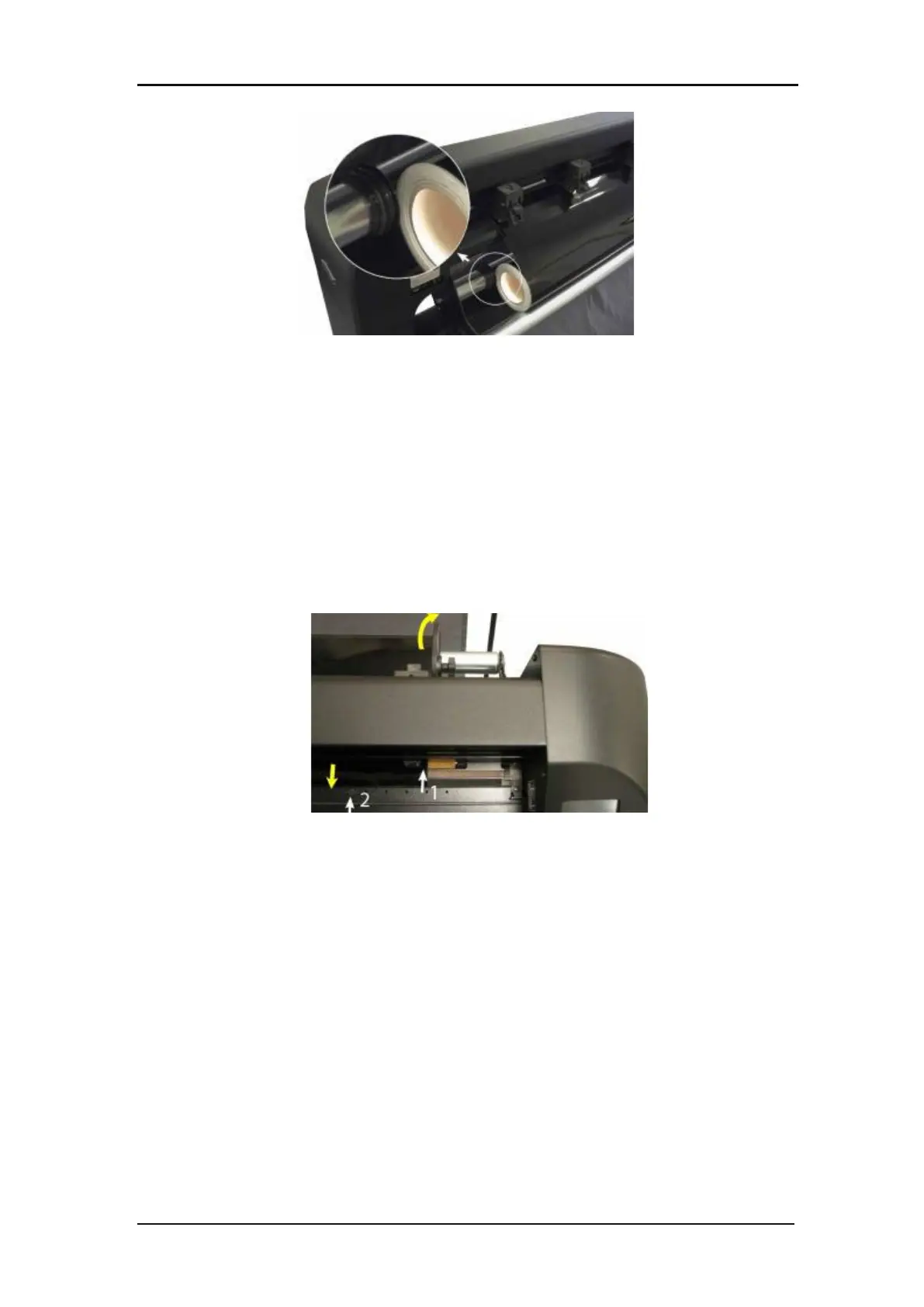

FIG 1-20
1-20 FEEDING ROLL MEDIA WITHOUT USING MEDIA FLANGES
5. Start feeding the media from the rear of the machine. Pass the media underneath the pinch
rollers towards the front of the machine.
6. Position the left media edge on the left-most drive sleeve and check whether the right
media edge is positioned over the long drive sleeve. Then position the left and right pinch
rollers.
The pinch rollers should be positioned over the drive sleeves about 3 to 15 mm (0.1” to
0.6”) away from the media’s outer edges (1). Then pull the media while holding the flange
at the back so the media is tight. Make sure the front media sensor is covered (2).
FIG 1-21
1-21 MEDIA POSITION
In circumstances where the above procedure does not work, because the media is too
narrow to reach the long drive sleeve, try positioning the left media edge over the second
left drive sleeve and position the right media edge somewhere over the long drive sleeve.
Continue moving the left pinch roller toward the long drive sleeve until both pinch rollers
click in their designated position and directly over the edges of the vinyl.
In all cases, both edges of the media must cover a drive sleeve. If this is not the case,
reposition the roll of material to cover the drive sleeve.
7. Make sure that the media follows a straight path from the roll of material. To accomplish
this, slide the media roll and flange guides from the left to the right along the media
support rollers.
