78 SPARCstation 20 Service Manual • July 1996

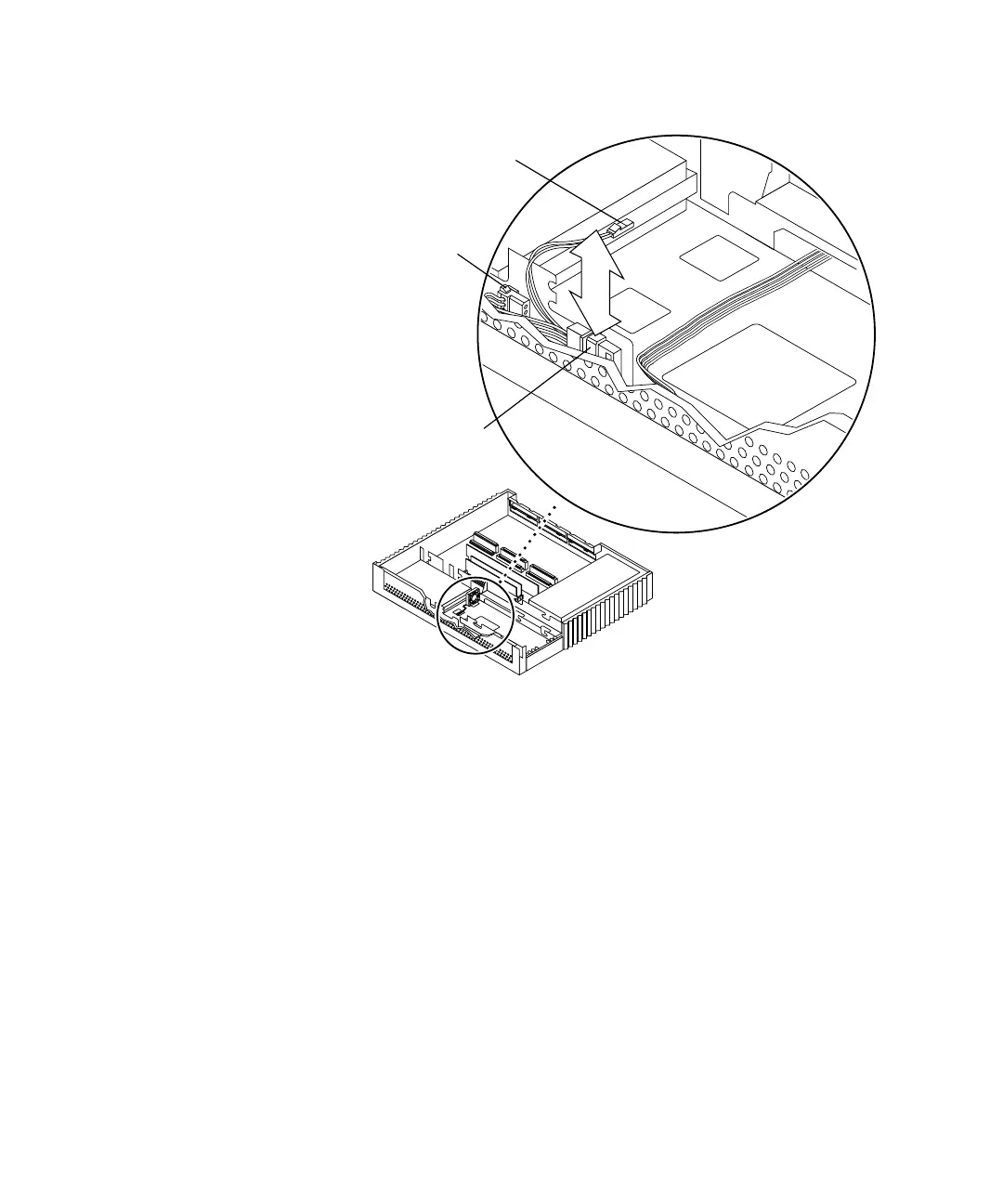

FIGURE 8-20 Lifting Fan DC Cable from the Cable Trough
Fan power
Front
Cable
trough
Right side
connector
CD-ROM drive
DC power connector
Note: Cable restraints and SCSI data
cables are not illustrated.
