Chapter 1 Product Description 3

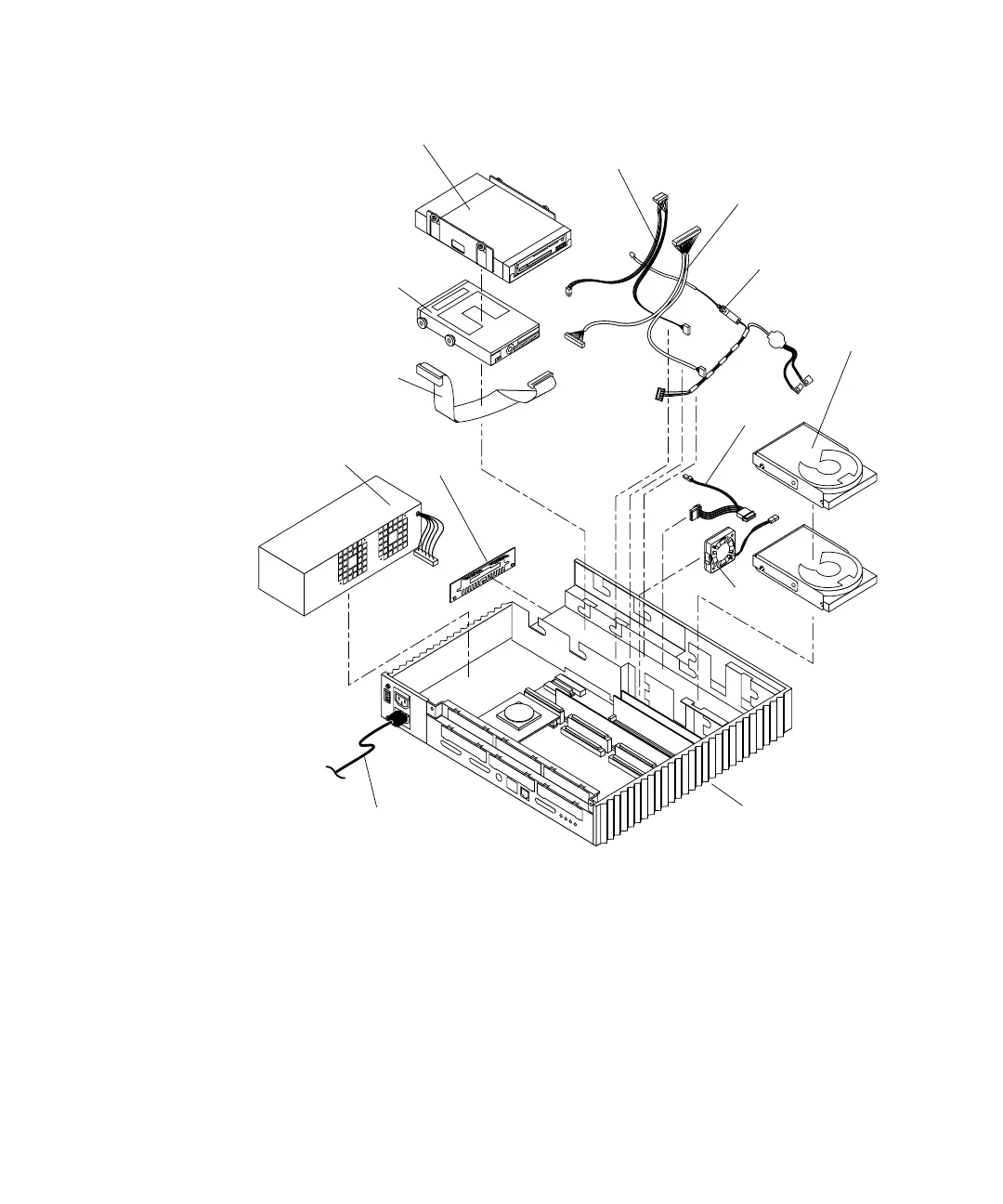

FIGURE 1-2 SPARCstation 20 System Exploded View
Interior View
FIGURE 1-3 shows an interior view of the major subassemblies and the system board.
Diskette data
Diskette
Power
Chassis
Disk
Fan
cable
supply
drive (2)
Speaker/LED
SCSI data cable
Fan DC
power cable
External power cord
Diskette filler
panel
cable
drive
CD-ROM drive
DC power harness
(SunCD 2Plus or SunCD 4)
