Sun Microsystems SPARCstation 20 - FIGURE 8-13 Mounting the Fan Assembly

Chapter 8 Removing and Installing Subassemblies 71

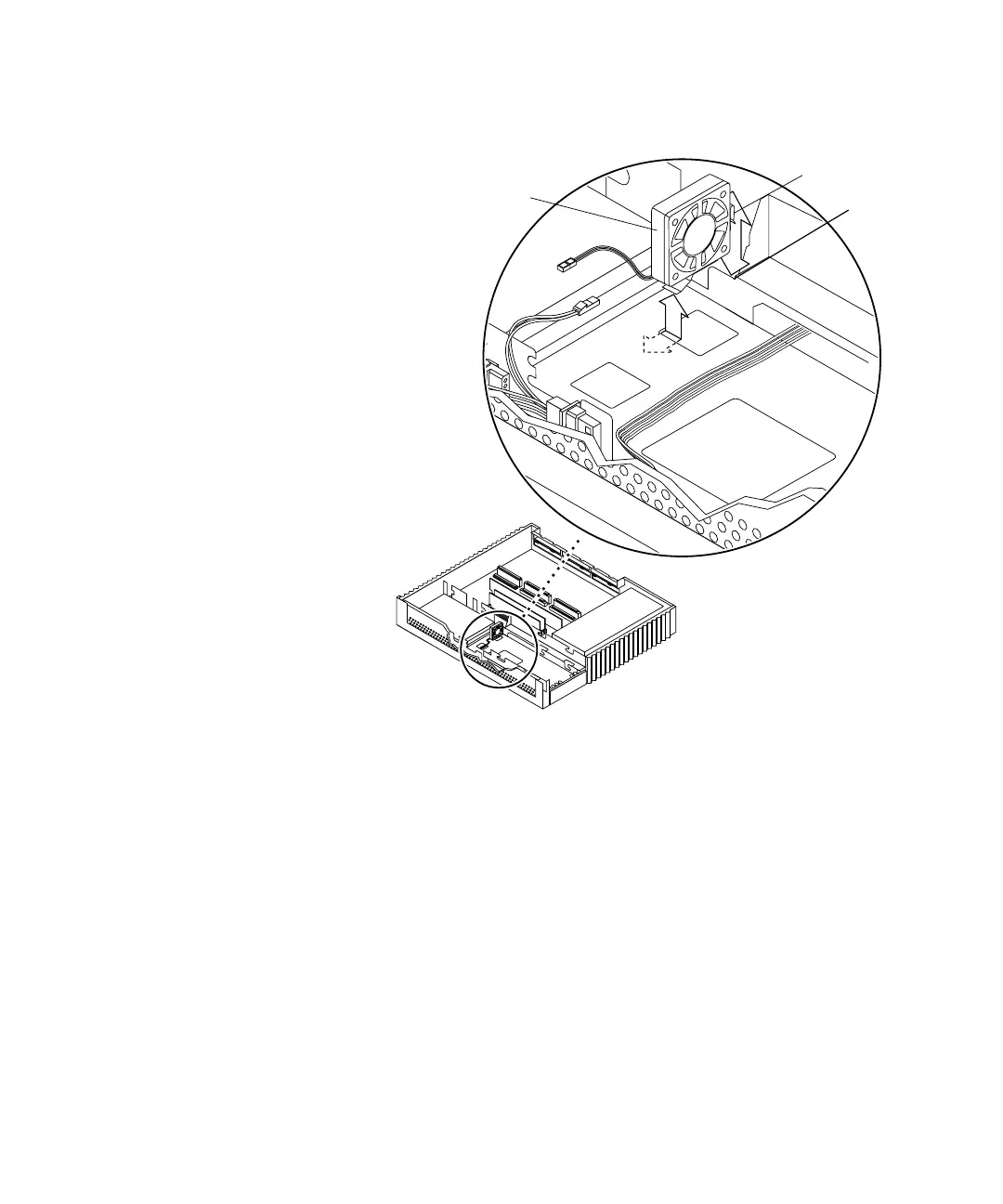

FIGURE 8-13 Mounting the Fan Assembly
3. Place the notched tip of the fan installation tool over the side mounting clip and
press down (
FIGURE 8-14).
Locate side
mounting
clip against
this surface.
Front
Right
side
Fan
assembly
Side mounting clip
Note: Cable restraints and SCSI data
cables are not illustrated.
