Chapter 8 Removing and Installing Subassemblies 75

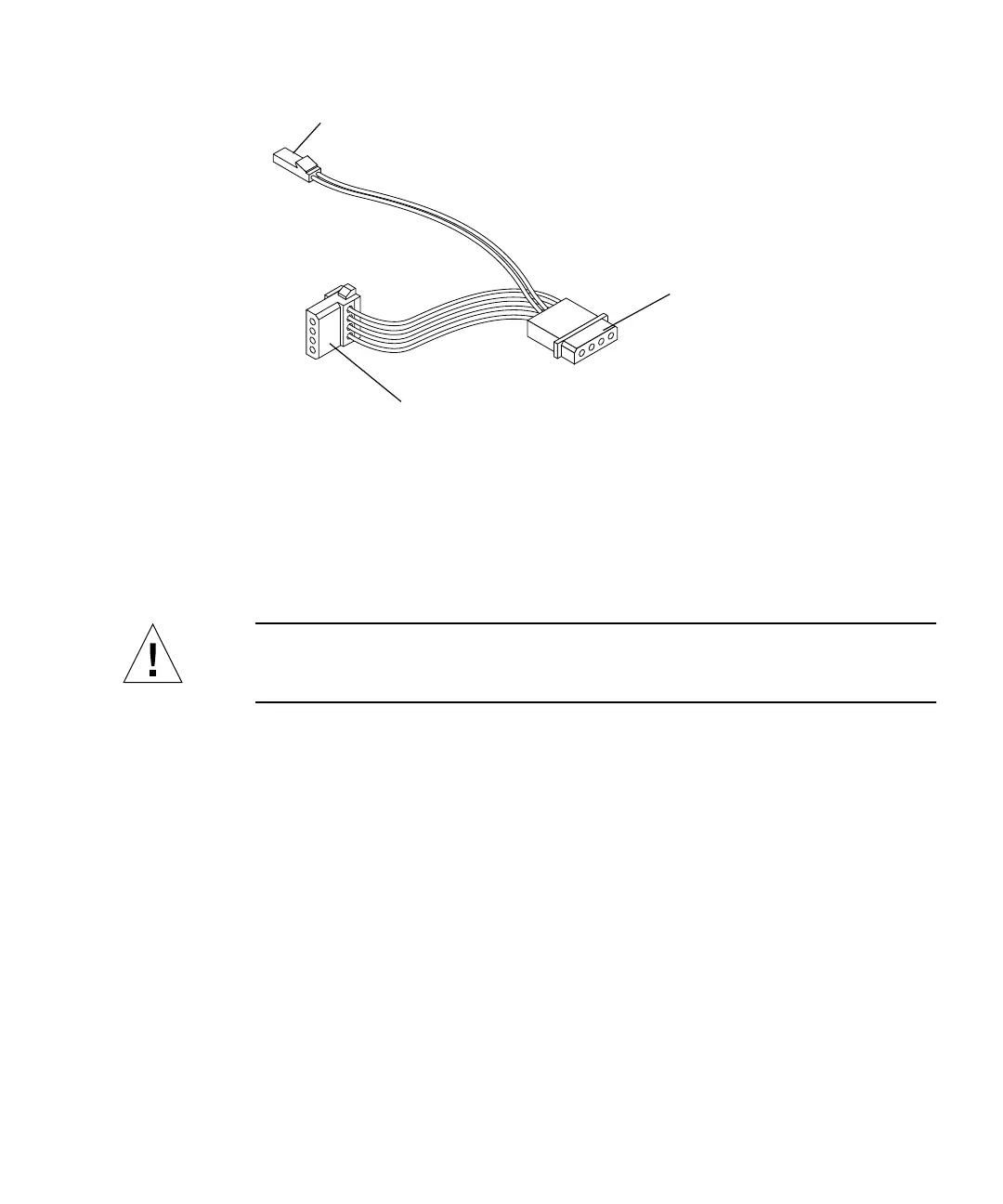

FIGURE 8-17 Fan DC Power Harness
1. Remove power from the system.
See “Removing Power from the System” on page 45.
2. Remove the cover and attach a wrist strap.
See Chapter 7.
Caution – Use proper ESD grounding techniques when handling components. Wear
an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive
components in antistatic bags before placing it on any surface.
3. Detach the fan DC power harness from under the cable restraint near the CD-
ROM drive data cable (
FIGURE 8-18).
Fan DC power connector
CD-ROM drive connector (optional)
CD-ROM drive
DC power connector
