Sun Microsystems SPARCstation 20 - FIGURE 12-1 Selected Frus

186 SPARCstation 20 Service Manual • July 1996

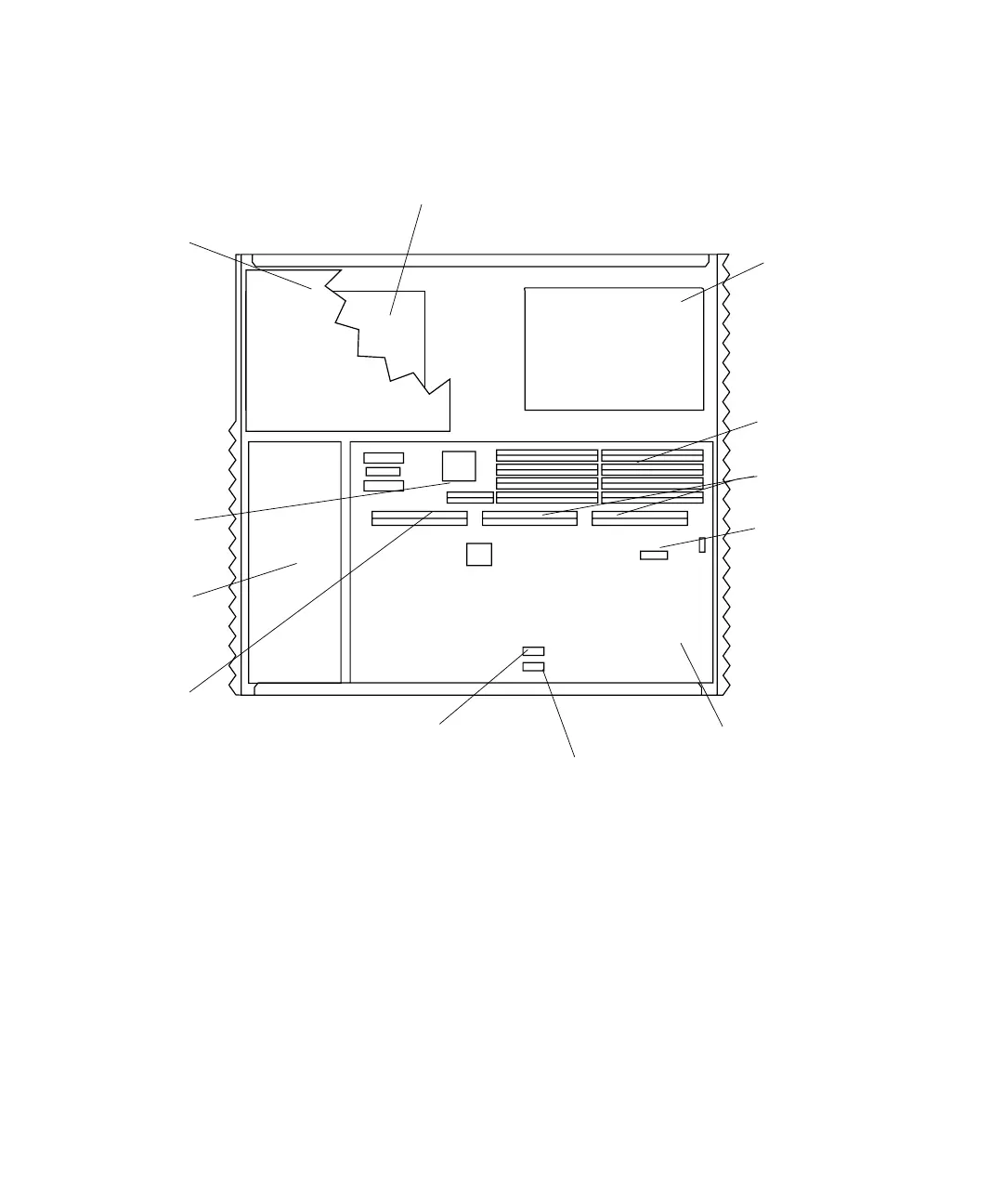

FIGURE 12-1 Selected FRUs
Diskette drive (bottom)
MBus module
slots
Power
supply
CD-ROM drive
(top)
DSIMM module
slots
SBus card
slots
AVB slot
NVRAM/TOD
OpenBoot PROM
System board
Hard disk
drive (2)
(stacked)
NVSIMM/VSIMM
module slots
