Sun Microsystems SPARCstation 20 - FIGURE 8-3 Power Supply Captive Screws; FIGURE 8-4 Connecting the DC Power Connector to the System Board

Chapter 8 Removing and Installing Subassemblies 59
FIGURE 8-3 Power Supply Captive Screws
5. Connect the DC power connector to the system board (FIGURE 8-4).
6. Remove the wrist strap and replace the cover.
See Chapter 7.
7. Connect the power cord to the rear of the system unit and the wall receptacle.
8. Power on the system.
See “Turning On the Power” on page 47.

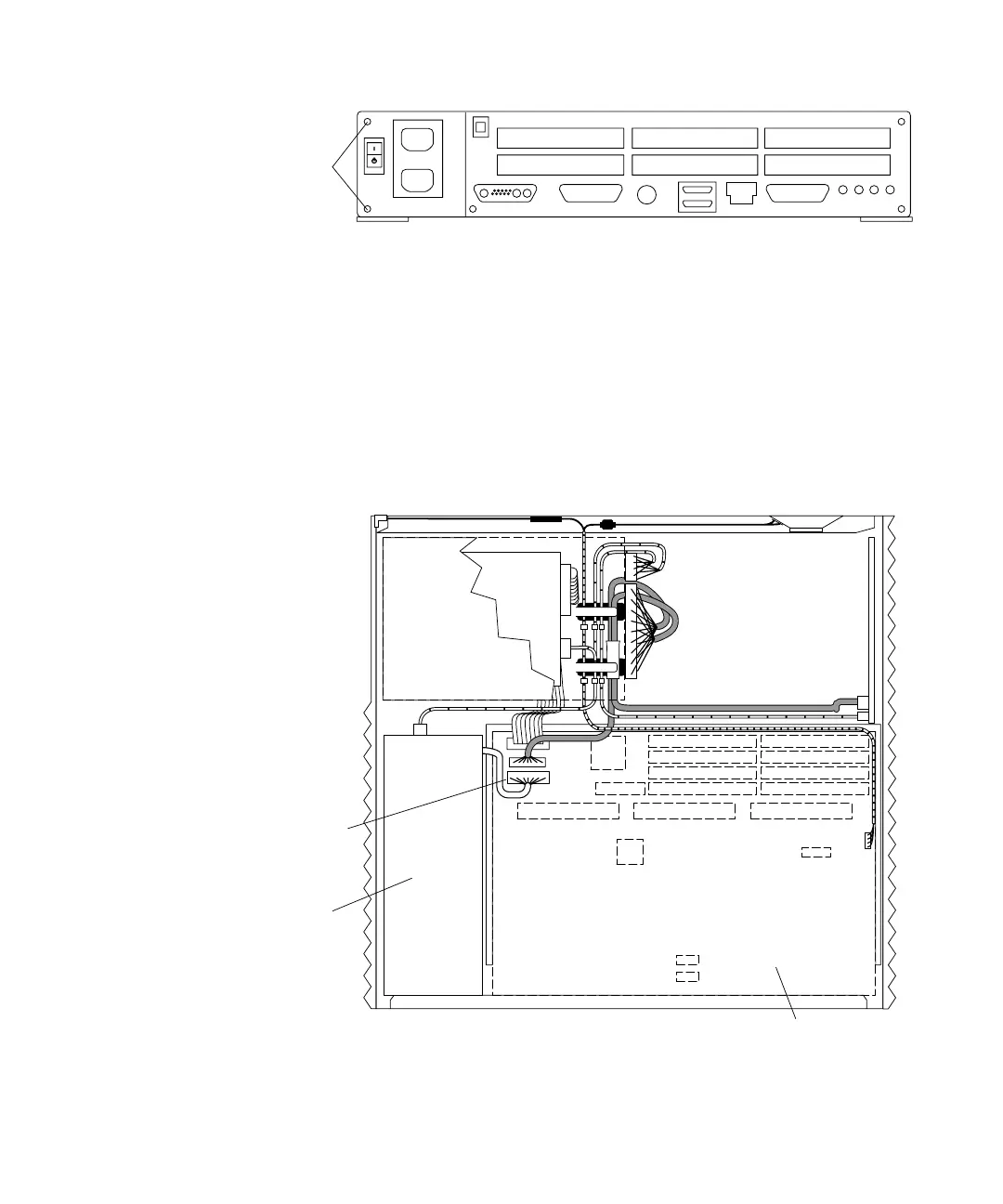

FIGURE 8-4 Connecting the DC Power Connector to the System Board
Captive
screw (2)
DC power
Power
connector
supply
System board
