Chapter 11 System Board and Component Replacement 157

Note – FIGURE 11-17 and FIGURE 11-18 show a double-wide SBus card and a single-

wide SBus card, respectively, being installed.

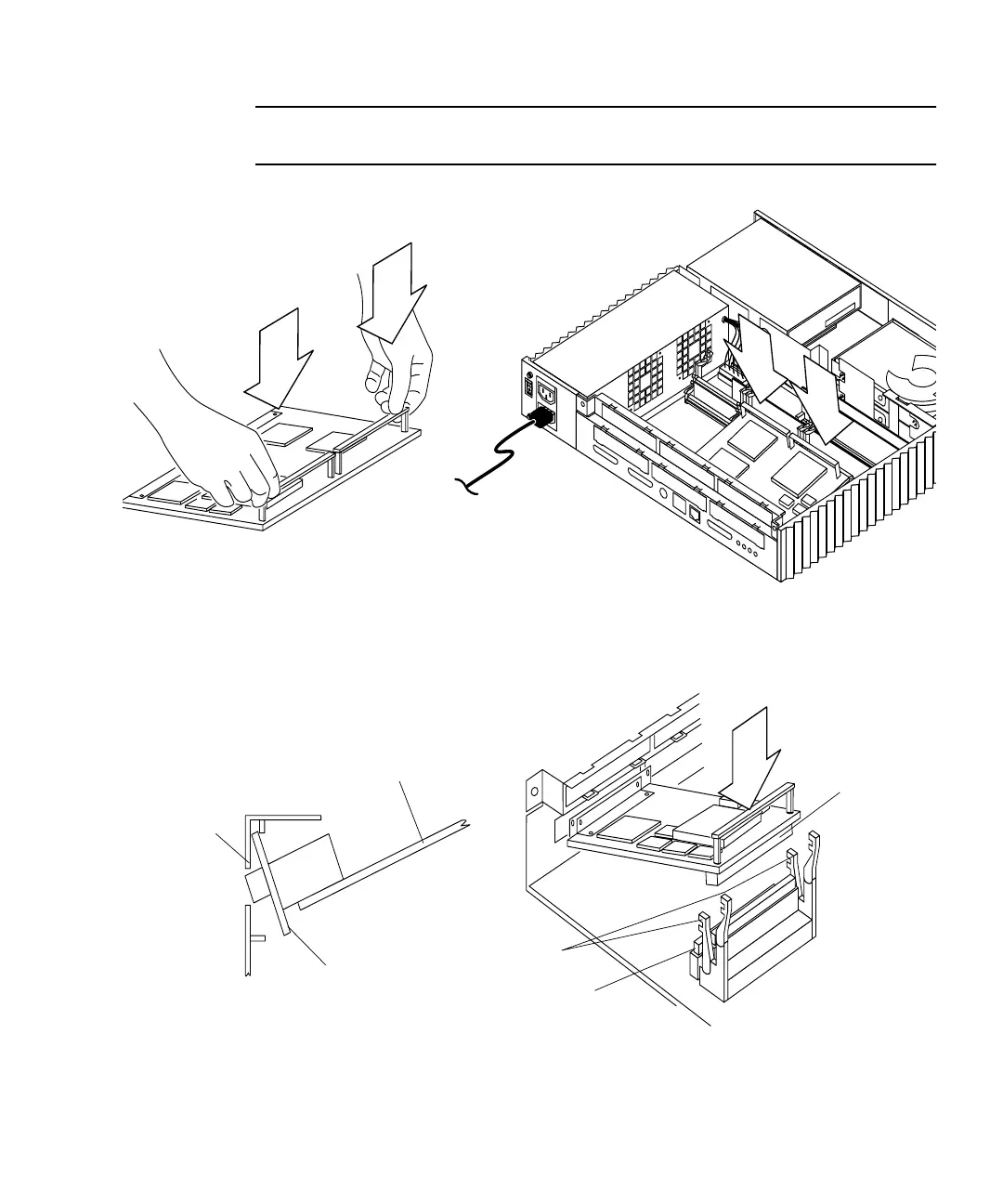

FIGURE 11-17 Installing a Double-Wide SBus Card

FIGURE 11-18 Installing a Single-Wide SBus Card

Side view

back panel

Card back plate

SBus card

Retainers

SBus slot

SBus card

connector
