Chapter 9 Storage Devices 133

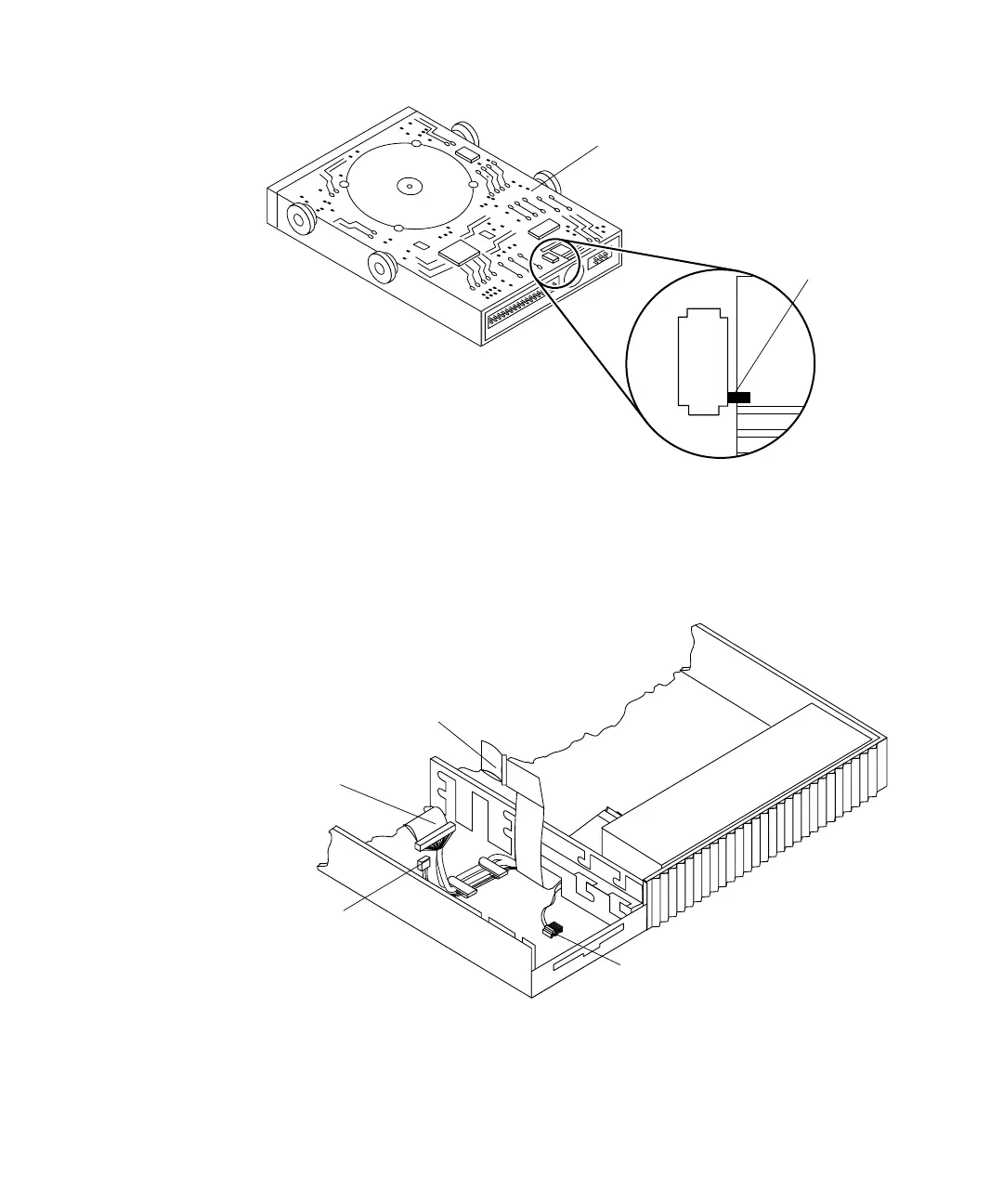

FIGURE 9-16 Setting the Diskette Drive Microswitch
c. Locate the two-wire diskette drive power cable labeled P4. Move the SCSI disk
cable and the CD-ROM drive power cable away from the diskette drive
opening (
FIGURE 9-17 and FIGURE 9-17).
FIGURE 9-17 Moving the SCSI Disk Cable and the CD-ROM Drive Power Cable
10
SW4
Diskette drive
microswitch
PCB side of drive
Diskette drive
power cable (P4)
Data
cable
CD-ROM drive
power cable
SCSI disk
cable
