7. Hold the NVSIMM by the edges and, align the notch with the area between the
two SIMM slots. The surface with the battery must face the system unit back
panel (
FIGURE 11-30).

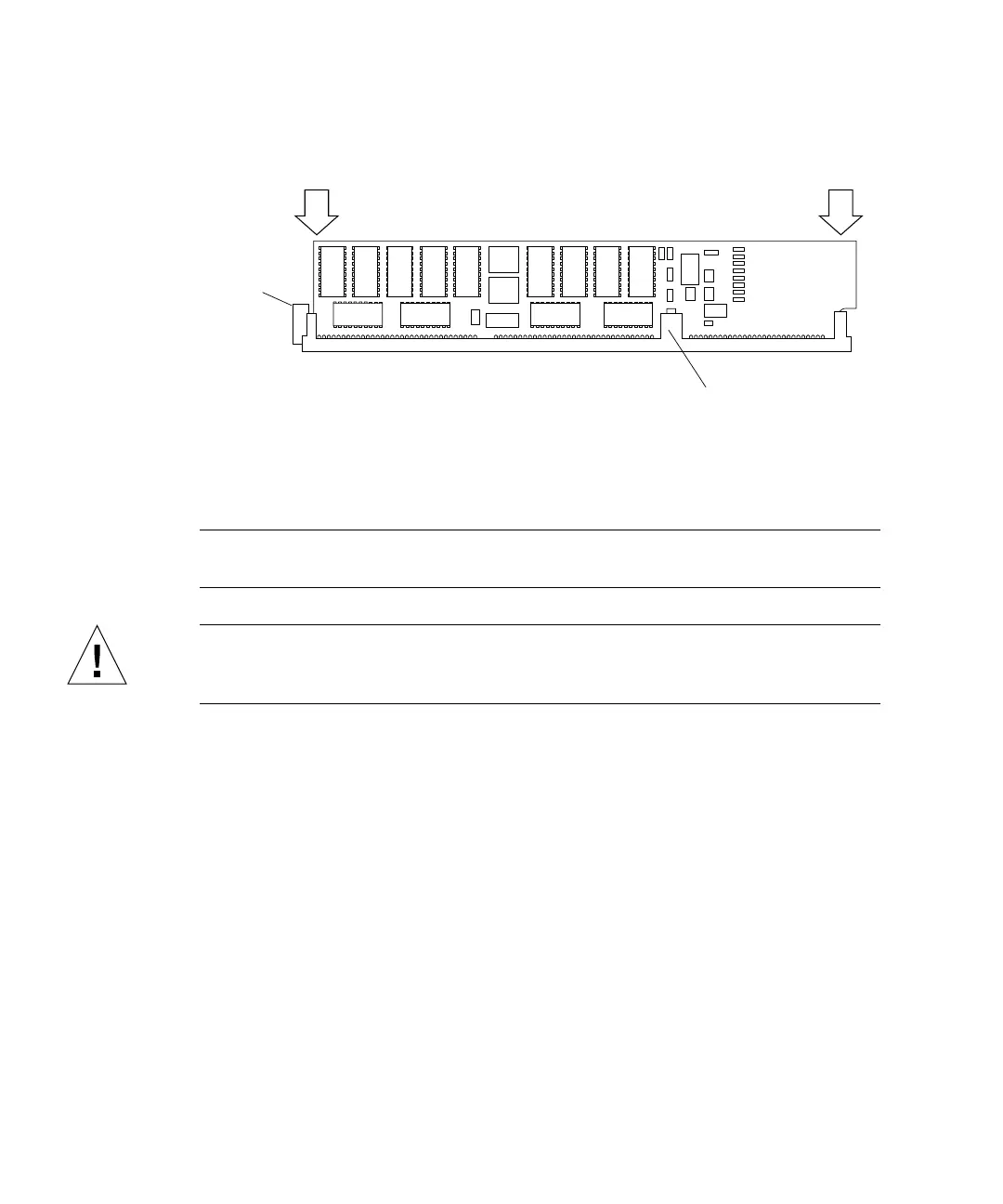

FIGURE 11-30 Aligning the NVSIMM in the Slot, Back View
Note – The notched part of the NVSIMM should be near the center of the system
board.
Caution – Use care when aligning the NVSIMM center notch with the connector
frame. If the center notch is not properly aligned, the NVSIMM could be damaged
when inserted.
8. Place the grooved surface of the insertion tool at a 90-degree angle on the upper
edge of the SIMM (
FIGURE 11-31 and FIGURE 11-32).
Notch location
Ejection
lever
