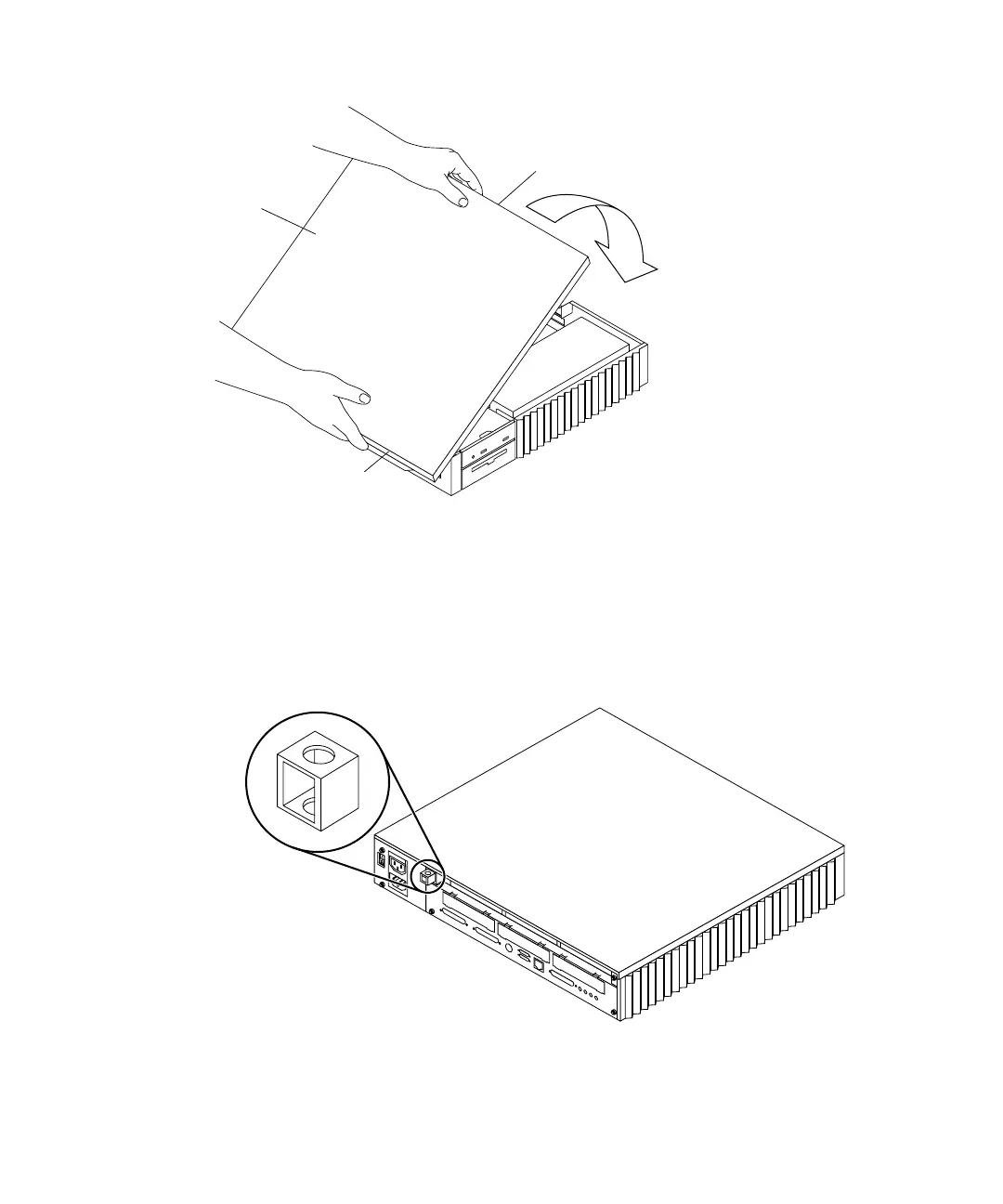

FIGURE 7-4 Replacing the Cover
3. Align the cover hinge tabs with the chassis tab slots on the bottom front of the
system. Ensure that the tabs are locked into the chassis slots.
4. Lower the cover onto the chassis (
FIGURE 7-4).
5. Replace the lock block (
FIGURE 7-5).
FIGURE 7-5 Lock Block
Rear edge
Front edge
Cover
