Chapter 8 Removing and Installing Subassemblies 63

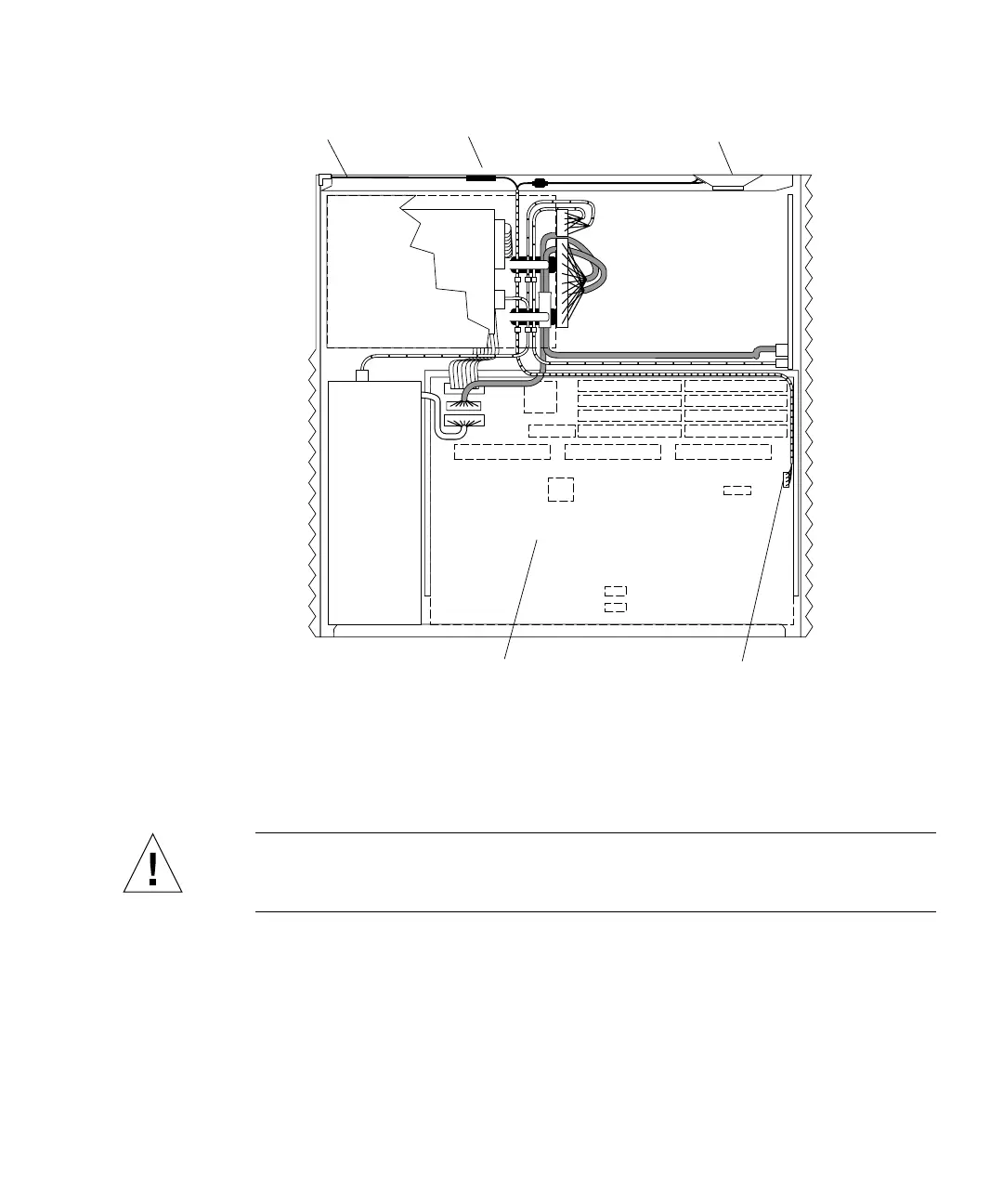

FIGURE 8-7 Speaker/LED Cable
Installing the LED
Caution – Use proper ESD grounding techniques when handling components. Wear
an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive
components in antistatic bags before placing it on any surface.
1. Position the LED near the tabs and light pipe at the corner of the system
(
FIGURE 8-6).
2. Use the tip of a small flatblade screwdriver to work the shrink-wrapped LED
wires through the tabs (
FIGURE 8-6).
3. Route the LED wires along the top front edge of the chassis and connect them to
the Speaker/LED in-line connector (
FIGURE 8-7).
System board
Speaker/LED connector
LED cable
In-line connector
Speaker
Shrink-wrapped
To Next Page
