Suzuki RM-Z250 Owner's Service Manual

CLUTCH 7-11

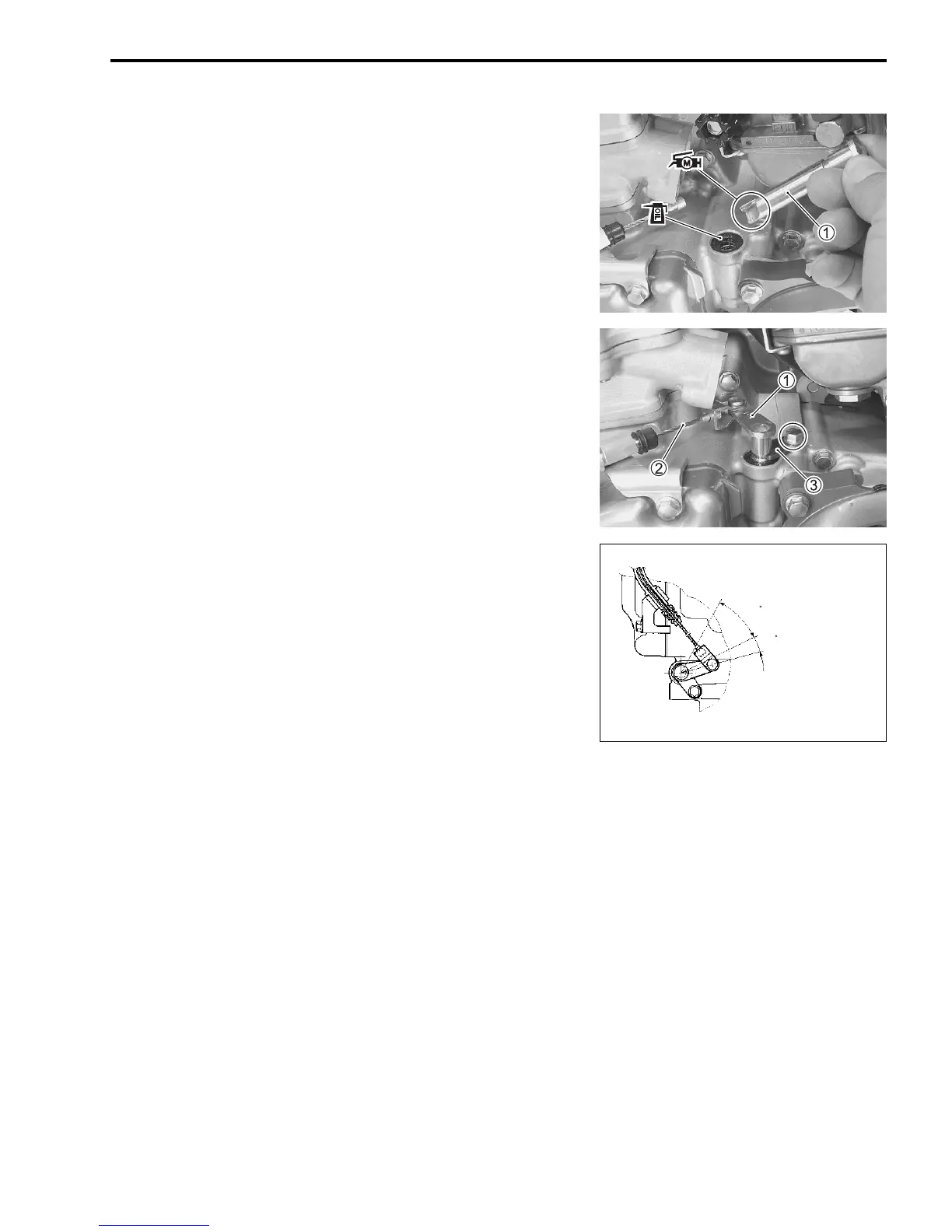

INSTALLATION
• Apply SUZUKI MOLY PASTE to the clutch release camshaft.
% 99000-25140: SUZUKI MOLY PASTE
• Apply engine oil to the oil seal lip.
• Install the clutch release camshaft

1.
• Connect the clutch cable

2 and install the retainer

3.
• Install the cam chain tension adjuster. (!6-31)
INSPECTION AFTER INSTALLATION
• Engine oil level and oil leakage (!2-11)
• Clutch cable play (!2-17)
• Smooth operation of clutch assembly
35 (Moving limit)
11 (Clutch release
set position)

Suzuki RM-Z250 Specifications

General

Displacement	249cc
Fuel System	Fuel injection
Bore x Stroke	77.0 mm x 53.6 mm
Ignition	Electronic (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tires	80/100-21
Rear Tires	100/90-19
Overall Width	830 mm
Ground Clearance	345 mm (13.6 in)
Seat Height	955 mm
