Suzuki RM-Z250 Owner's Service Manual

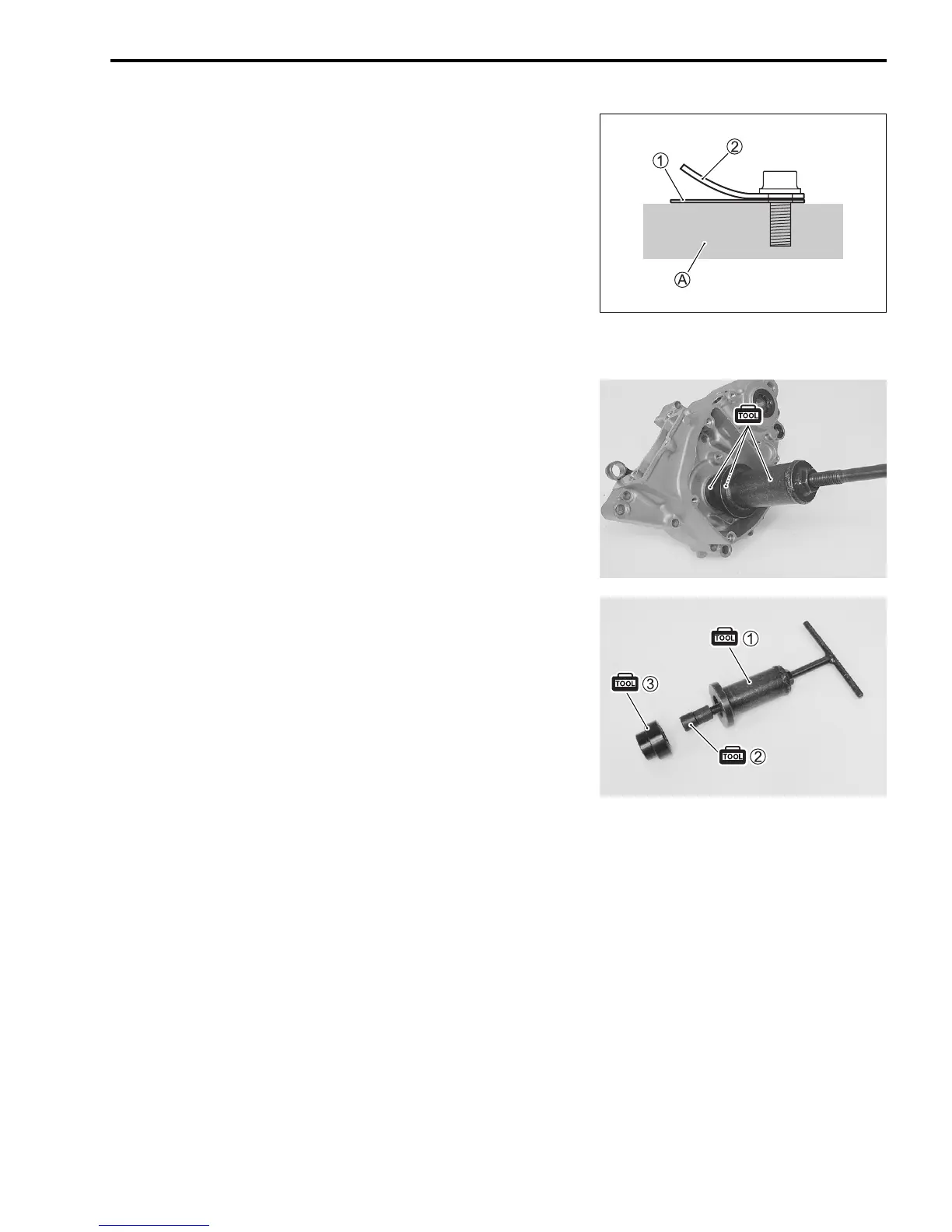

TRANSMISSION AND CRANKSHAFT 10-13
REED VALVE INSTALLATION
• Install the reed valve

1 and reed valve guide

2 direction as
shown.
' Reed valve guide bolt: 4.5 N·m (0.45 kgf-m, 3.0 lb-ft)

1 Reed valve

2 Reed valve guide

A Crankcase
CRANKSHAFT INSTALLATION
• Fit the crankshaft into the left crankcase with the special tools.
NOTE:
Use the attachment (inner driver attachment

3) for crankshaft
bearing inside diameter.
" 09910-32812: Crankshaft installer

1
09911-11310: Crankshaft installer attachment

2
09913-70210: Bearing installer set
(Inner driver attachment 30 mm

3)

Suzuki RM-Z250 Specifications

General

Displacement	249cc
Fuel System	Fuel injection
Bore x Stroke	77.0 mm x 53.6 mm
Ignition	Electronic (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	coil spring, oil damped
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tires	80/100-21
Rear Tires	100/90-19
Overall Width	830 mm
Ground Clearance	345 mm (13.6 in)
Seat Height	955 mm
