17-16 FRONT FORK AND STEERING

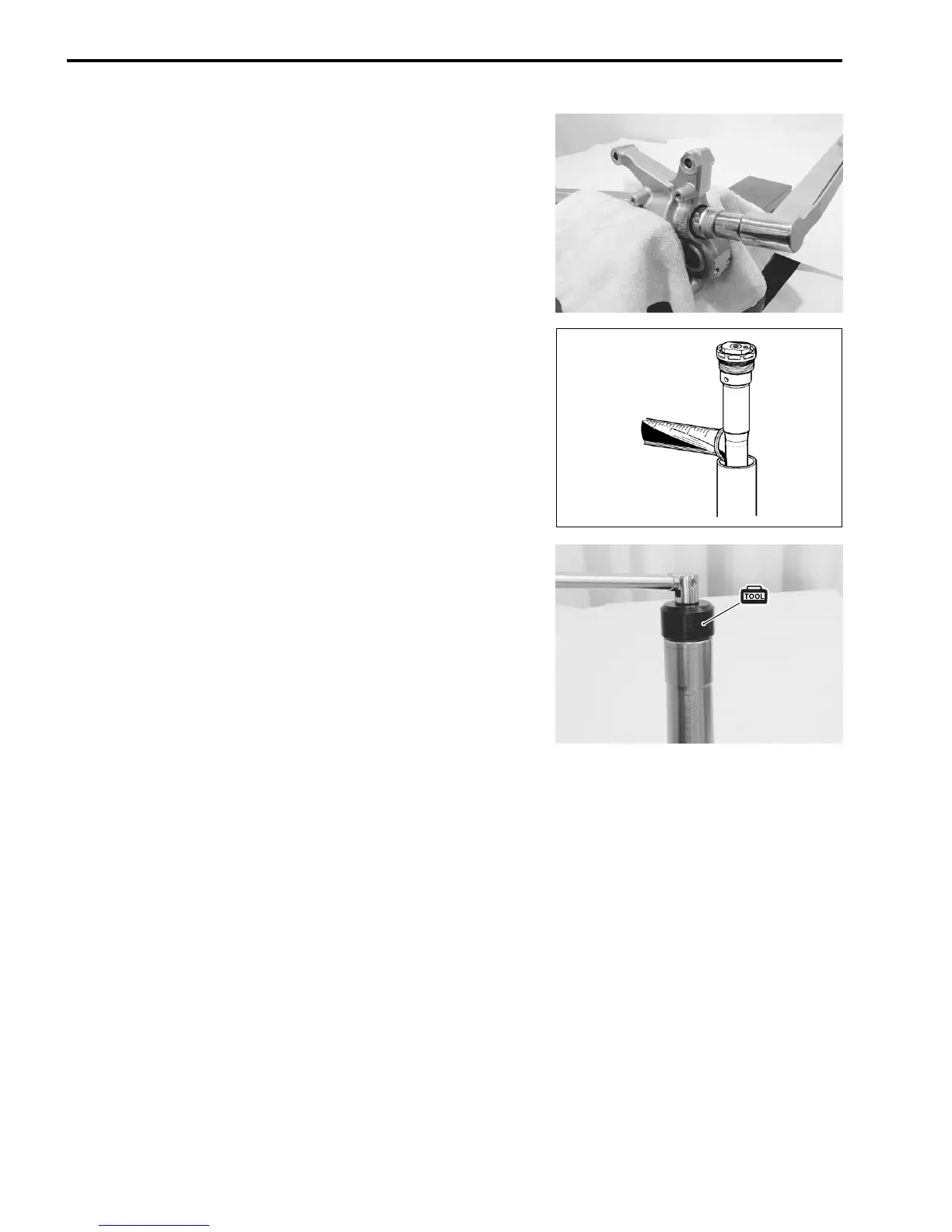

• Tighten the center bolt to the specified torque.
& Center bolt: 70 N·m (7.0 kgf-m, 50.5 lb-ft)
• Loosen and remove the fork cap bolt (sub-tank) from the outer
tube and slowly slide down the outer tube.
" 09941-53630: Front fork top cap wrench
• Pour the specified amount of fork oil into the outer tube.
$ Oil quantity (When standard fork spring is used):
360 ml (12.17/12.68 US/lmp oz)
% 99000-99001-SS5: SUZUKI FORK OIL SS-05
(or equivalent fork oil)
• Raise the outer tube and temporarily tighten the fork cap bolt
(sub-tank).
" 09941-53630: Front fork top cap wrench
