STEERING
4203781 First Edition 7-13
7
Assembly
See Figures 7-18 through 7-21.

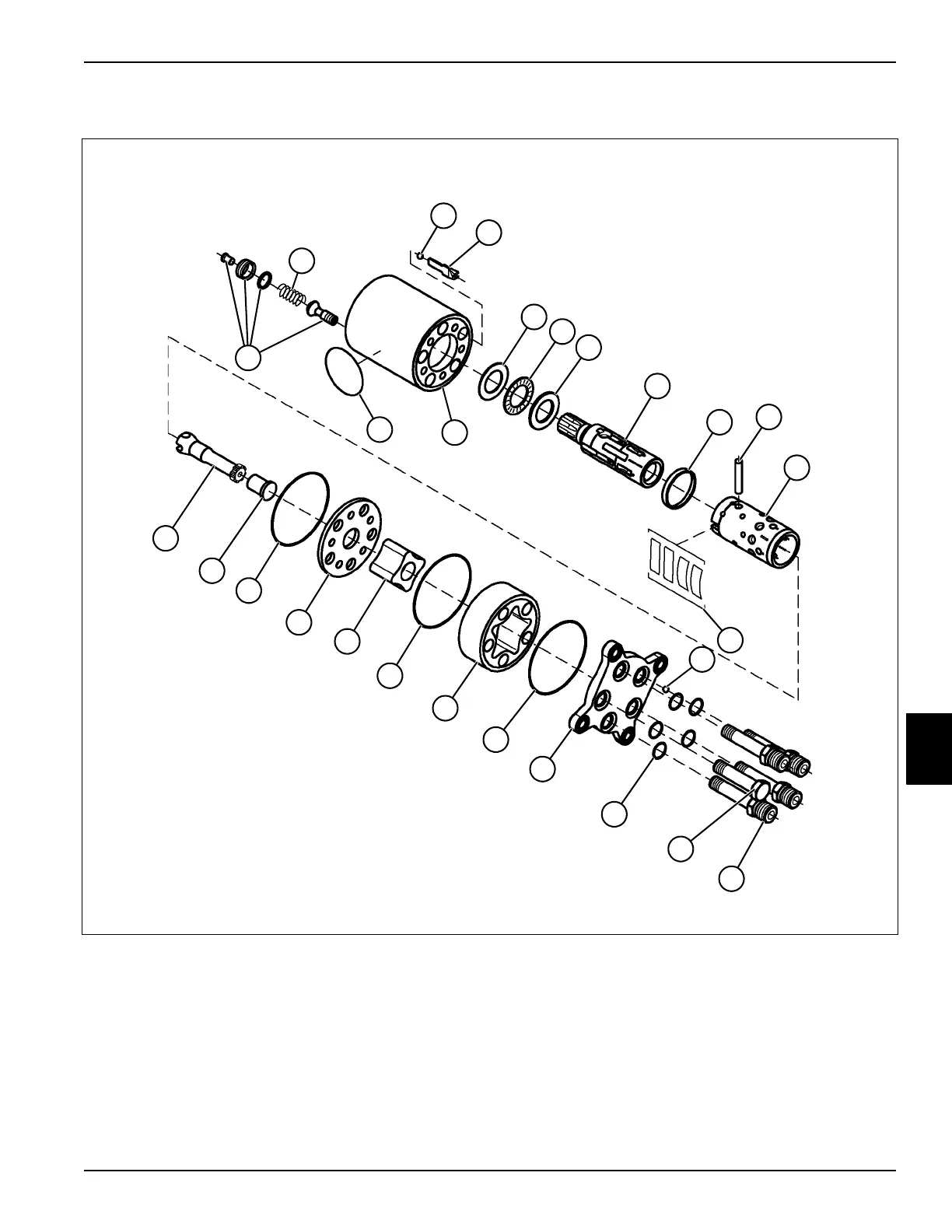

Figure 7-18
1 Emergency Steering Ball 8 Cross Pin 15 End Cover 21 Spacer
2 Ball Stop 9 Sleeve 16 O-Ring (2) 22 Cardan Shaft
3 Thin Bearing Race 10 Spring Set 17 Gearwheel Rim 23 Housing
4 Bearing 11 Check Valve Ball 18 Gearwheel 24 Name Plate
5 Thick Bearing Race 12 Special Screw (4) 19 Distributor Plate 25 Steering Relief Valve
6 Spool 13 Special Screw 20 O-Ring 26 Steering Relief Valve Spring
7 Spring Retaining Ring 14 O-Ring (5)
TN2141
1
2
24
3
4
5
6
7
8
9
10
12
13
14
15
16
19
20
21
22
11
17
23
18
16
26
25
