7-12 673831-Rev A
STEERING
7

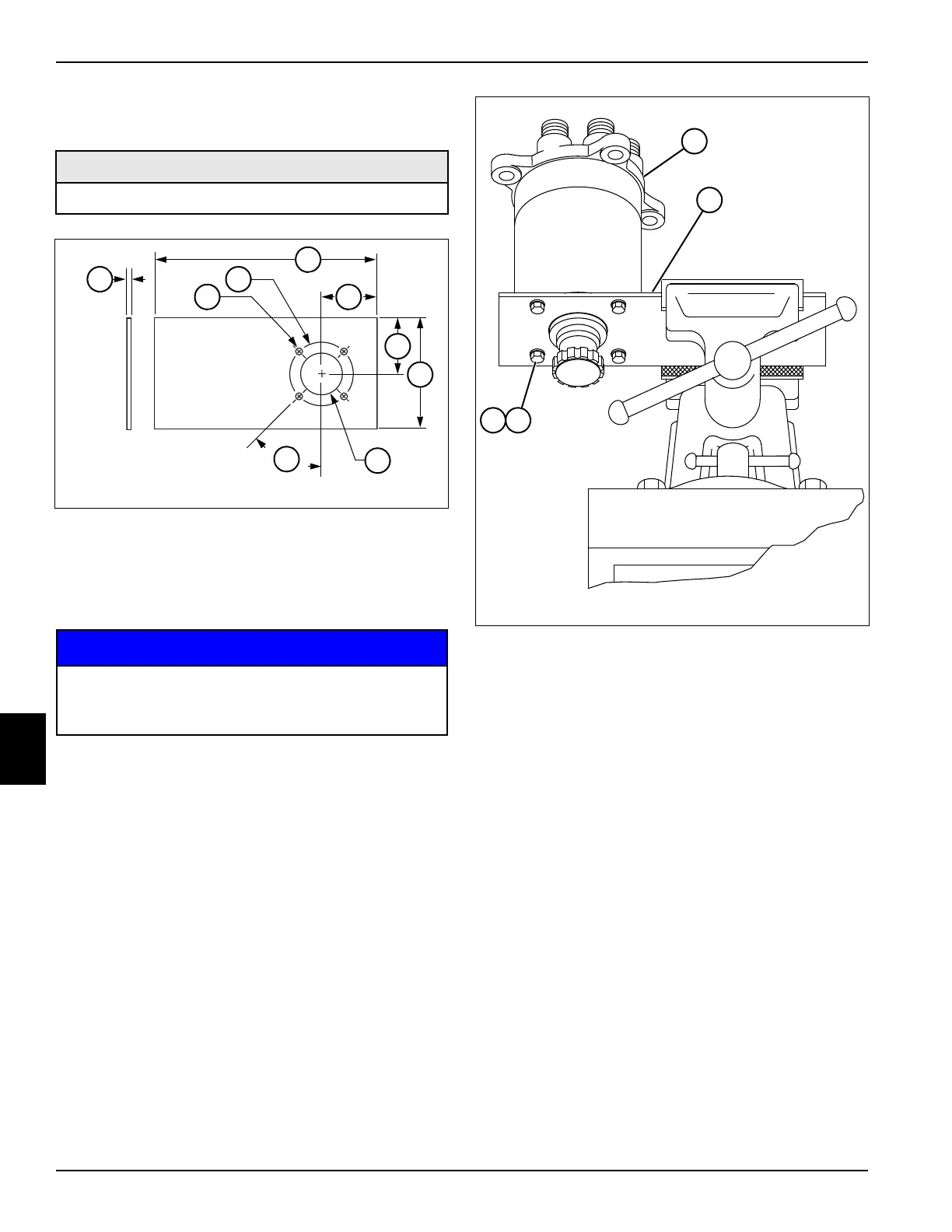

Steering Unit Service Fixture
See Figures 7-18 and 7-19.
Figure 7-18
Figure 7-19
1. Place the steering unit service fixture (2) securely in
a vise.
2. Place the steering unit (1) into the service fixture (2),
input shaft down.
3. Secure the steering unit to the service fixture using
four M6-1 x 20 mm screws and M6 lock washers (3
and 4).
Required Tools or Equipment
Steering Unit Service Fixture
1 0.165 in. (4.2 mm) 6 2.0 in. (50.8 mm)
2 0.250 in. (6.35 mm) Ø Hole (4) 7 4.0 in. (101.5 mm)
32.280 in. (58.0 mm) Ø 8 1.5 in. (3.8 mm) Ø Hole
4 8.0 in. (202 mm) 9 45° (4)
5 2.0 in. (50.8 mm)
Do not clamp the steering unit directly into a vise.
Clamping the steering unit directly into a vise
may damage or distort the steering unit.
TN2143
