Textron Jacobsen SLF530 User Manual

STEERING
673831-Rev A 7-13
7
Disassembly
See Figures 7-20 and 7-21.

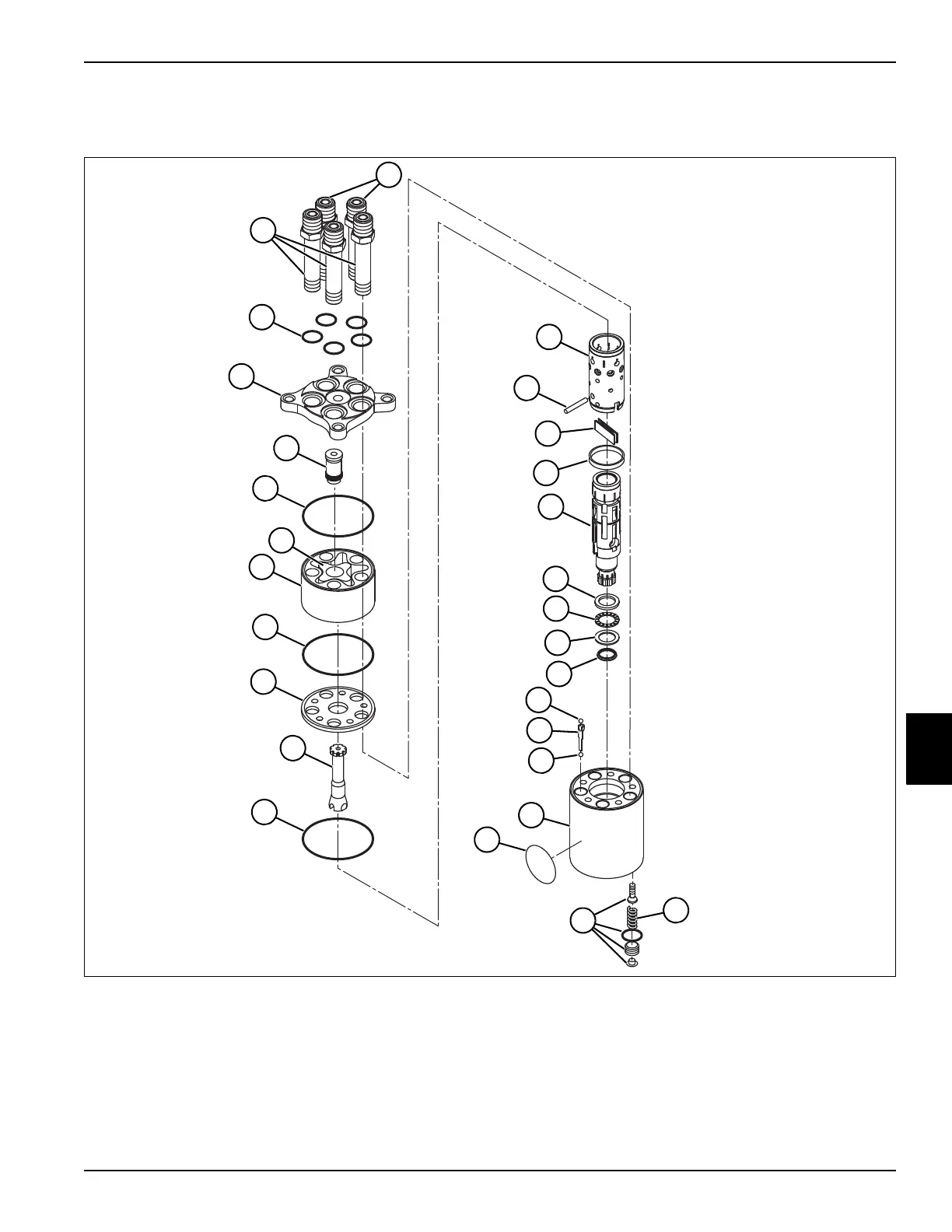

Figure 7-20
1 Special Screw (3) 8 Gearwheel Rim 15 Spring Retaining Ring 22 Ball Stop
2 Special Screw (2) 9 Distributor Plate 16 Spool 23 Emergency Steering Ball
3 O-Ring (5) 10 Cardan Shaft 17 Thick Bearing Race 24 Housing
4End Cover 11O-Ring 18 Bearing 25 Name Plate
5 Spacer 12 Sleeve 19 Thin Bearing Race 26 Steering Relief Valve
6 O-Ring (2) 13 Cross Pin 20 Shaft Seal 27 Steering Relief Valve Spring
7 Gearwheel 14 Spring Set 21 Check Valve Ball
R
L
P
T
TN4339
3
4
5
6
8
6
9
10
11
12
13
14
15
16
17
18
23
20
21
22
24
25
26
27
7
19
2
1
