7-20 673831-Rev A
STEERING
7
Disassembly, Inspection, and Assembly

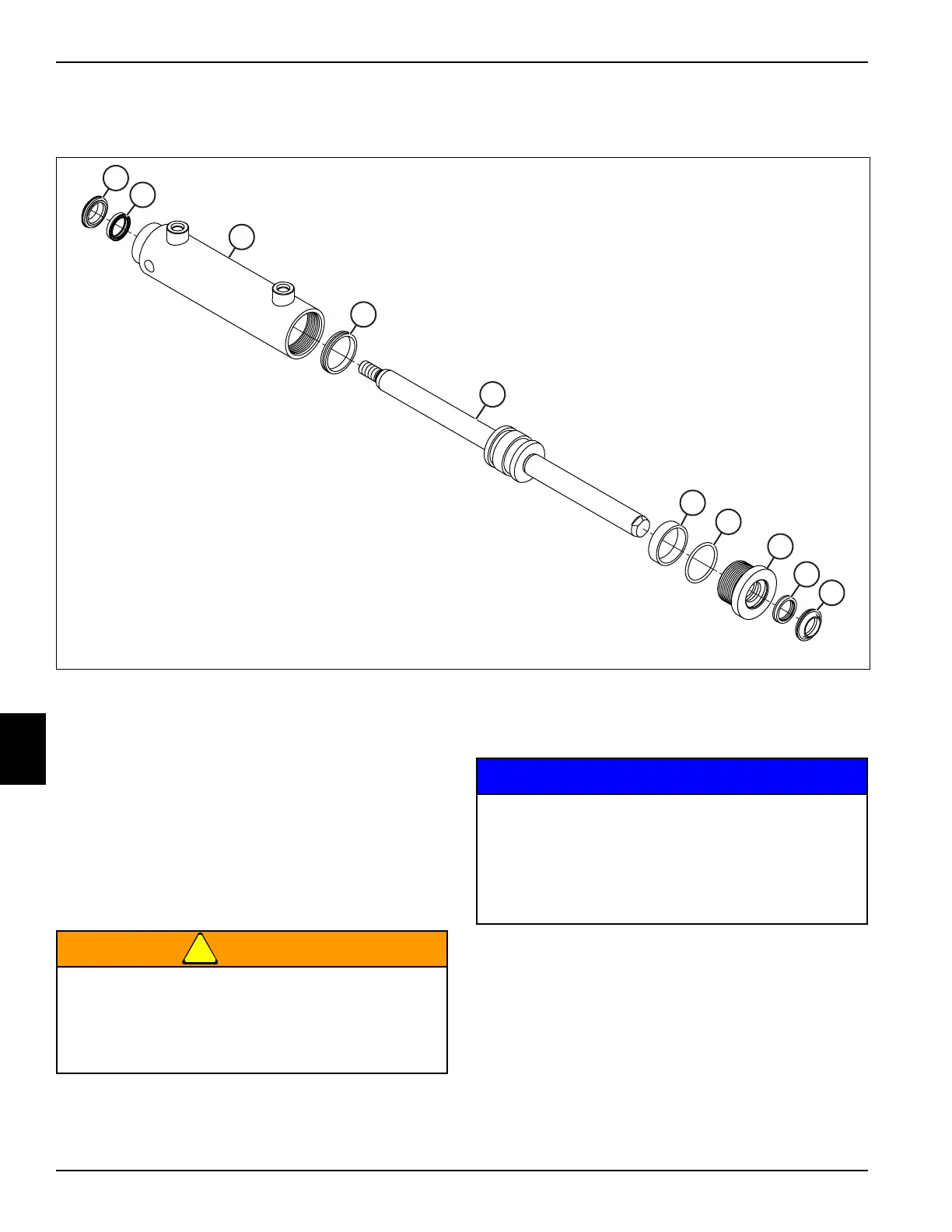

See Figure 7-27.
Figure 7-27
1. Remove gland (5) from barrel (1).
2. Remove rod and piston assembly (2) from barrel (1).
3. Remove the seal (3) and wiper (4) from the rod and
piston assembly (2).
4. Remove O-ring (6), rod seal (7), and wiper (8) from
gland (5).
5. Remove rod wiper (10), and rod seal (9) from barrel
(1).

WARNING
NOTICE
6. Clean all parts using clean solvent, and dry using
compressed air.
7. Inspect all parts for excessive wear, cracks, broken
parts, and damaged threads.
8. Inspect the barrel for dents, score lines, or grooves
inside.
1 Barrel 4 Piston Wiper 7 Gland Rod Seal 10 Barrel Rod Wiper
2 Rod and Piston Assembly 5 Gland 8 Gland Rod Wiper
3 Piston Seal 6 O-Ring 9 Barrel Rod Seal
MAR0213
1
2
3
4
5
6
7
8
9
10
Use appropriate eye protection when using
compressed air for cleaning or drying purposes.
Compressed air can cause serious personal
injury. Use safety reduction valves to reduce the
air pressure to a safe level before use.
It is important that all components are absolutely
clean, as contamination can result in serious
damage and/or improper operation.
Never use shop towels or rags to dry parts after
cleaning, as lint may clog passages. Dry parts
using compressed air.
