TOHATSU MFS 25d Service Manual

10
10-11
4st 25/30 2022

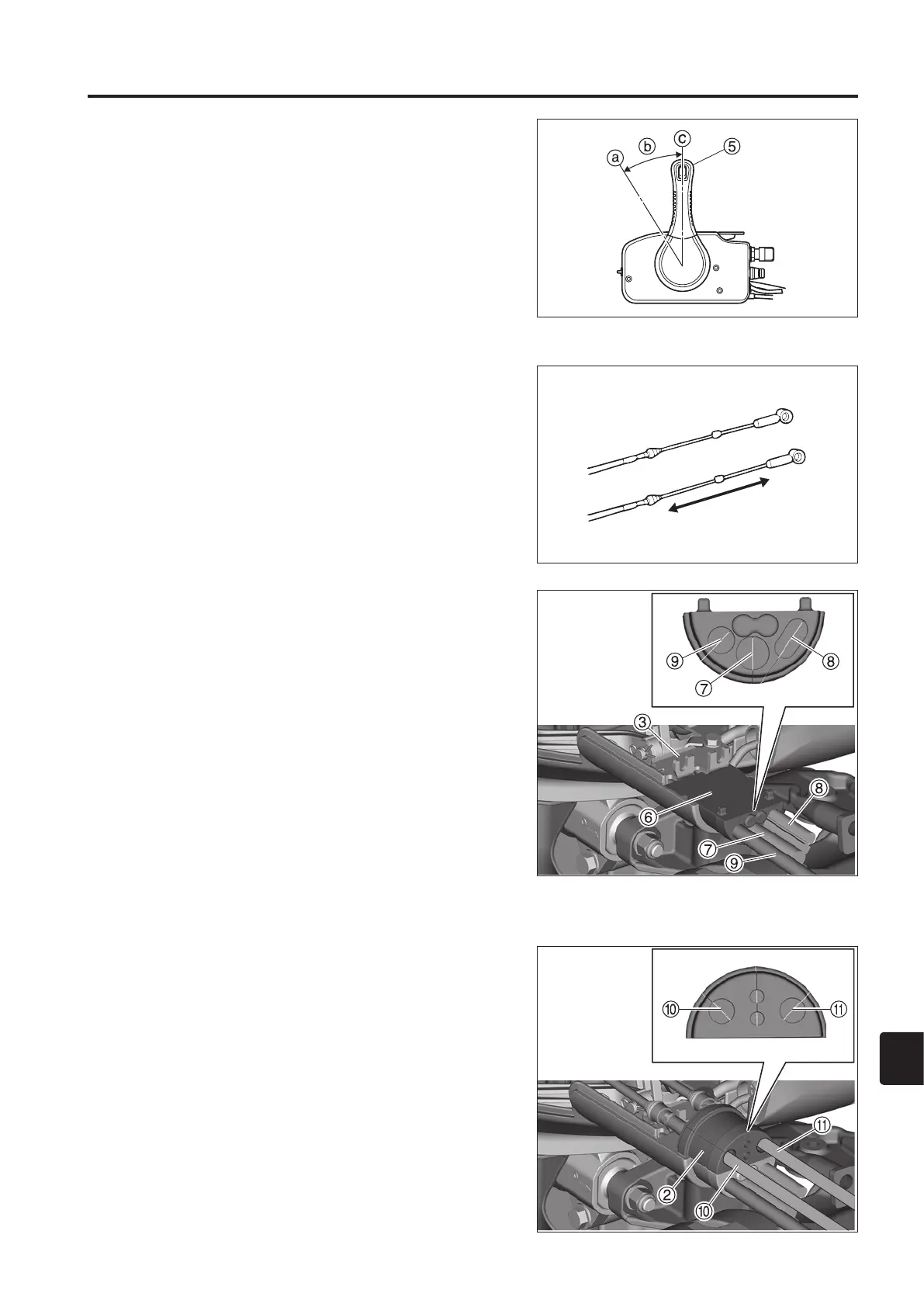

6. The shift cable is the one with the end that moves first
when the control lever 5 is lowered (approx.32°) to the
forward (F) side a until it stops.
7. Pass the main harness 7 through the grommet (lower) 6
and attach the cable clip 3.
8. Pass the shift cable 0 and the throttle cable q through
the grommet (upper) 2 and place the unit temporarily
onto the grommet (lower).
b Approx. 32°
c Neutral position
7 Main harness
8 Battery cable
9 Fuel hose
