10-12
Rigging
r/min
4st 25/30 2022

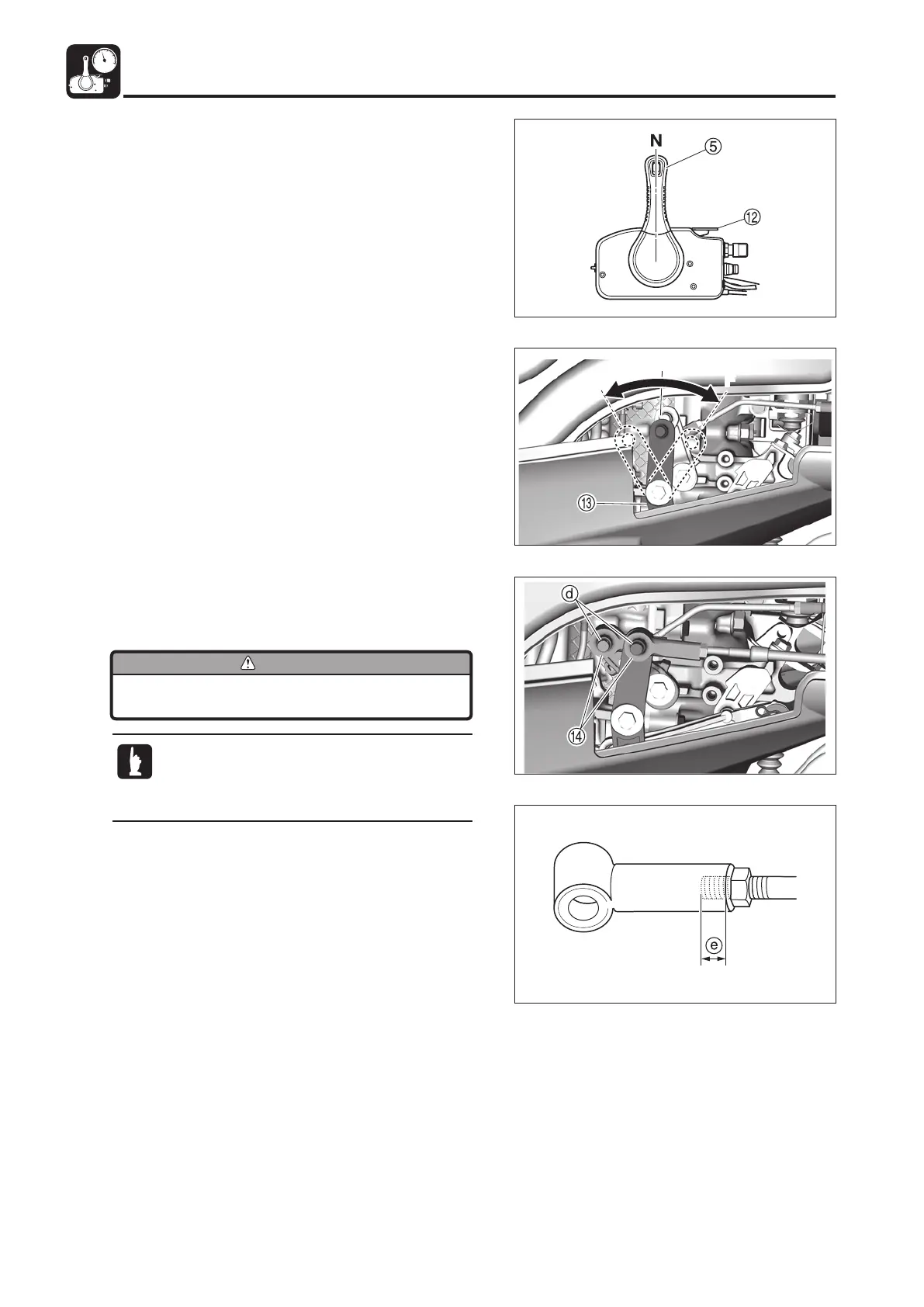

9. With the control lever 5 on the remote control box at the
neutral position, check that the free acceleration lever w is
at the fully closed position.
10. Operate the shift arm e to the forward (F), neutral (N),
and reverse (R) positions to confirm the positions, then set
it to the neutral (N) position.
11. Adjust the screw-in amount of the cable joint r so that its
holes are aligned with the pins b of the throttle arm and
the shift arm.
NN
R
R
F
F
e Cable joint screw-in amount
The cable joint should be screwed in at
least 10 mm.
•
The cable joint is shipped in the outboard motor
packing box.
•
When adjusting the cable joint, secure it with
the cable fully pushed in.
To Next Page
