10
10-13
4st 25/30 2022

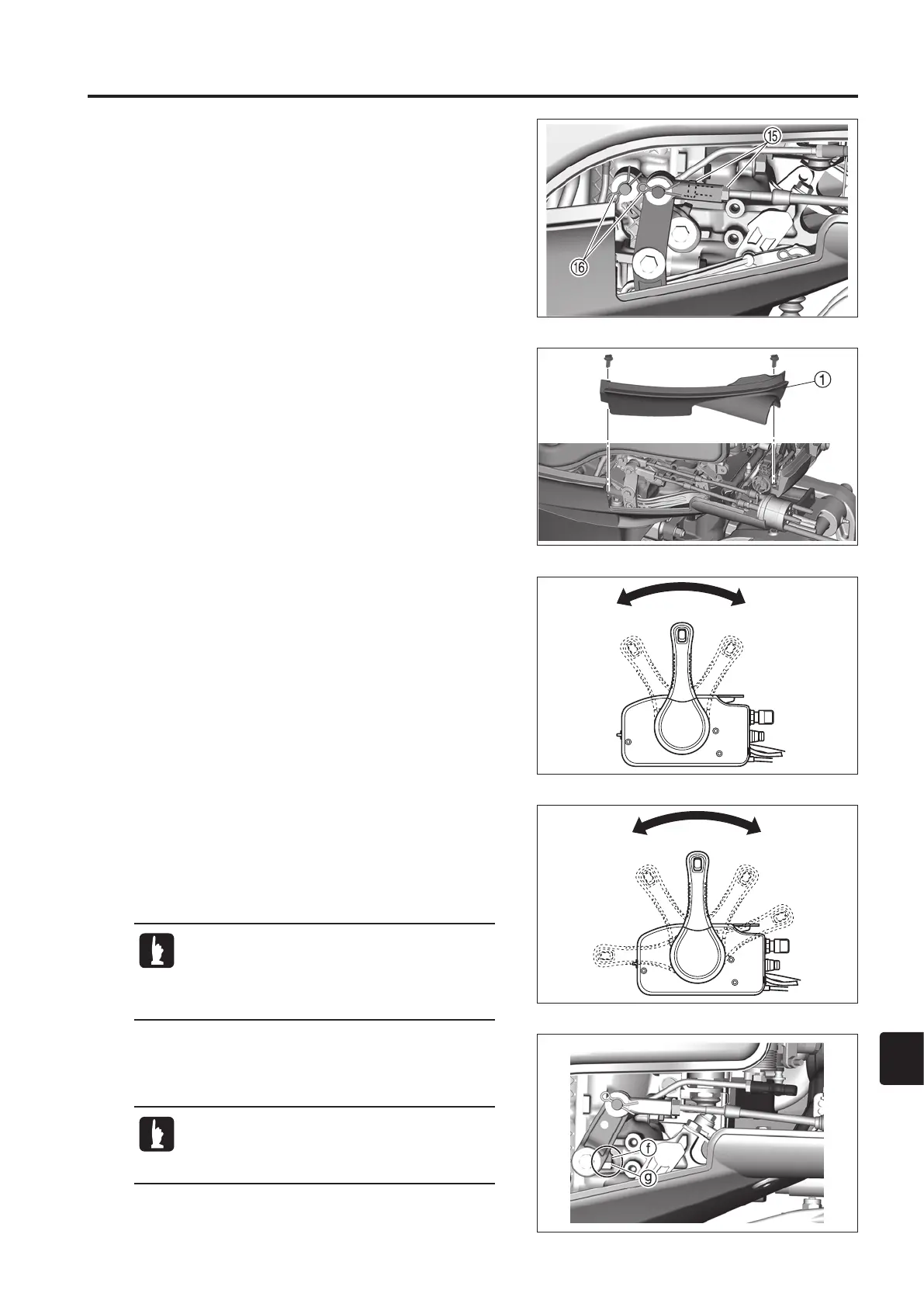

12. Tighten nuts t, then install the cable joint on the pins and
secure them with the washers and snap pins y.
13. Install the remote control stay cover 1.
14. Operate the control lever and check that it moves to the
forward (F), neutral (N), and reverse (R) positions.
15. Check that the outboard motor shifts in when the control
lever is lowered to the forward (F) side until it stops once
(approx. 32°) and that the stopper f on the throttle
armcomes into contact with the protrusion g on the crank
case when the lever is lowered further.
16. Check that the throttle body on the outboard motor side
is fully closed when the control lever is returned to the
neutral (N) position.
N
R
F
N
R
F
If the control lever is in the fully open position but
the stopper on the throttle arm is not in contact
with the protrusion on the crank case, adjust the
screw-in amount of the cable joint.
If the throttle body is not fully closed when the
control lever is in the neutral (N) position, adjust
the screw-in amount of the cable joint.
