3-27
3
4st 25/30 2022

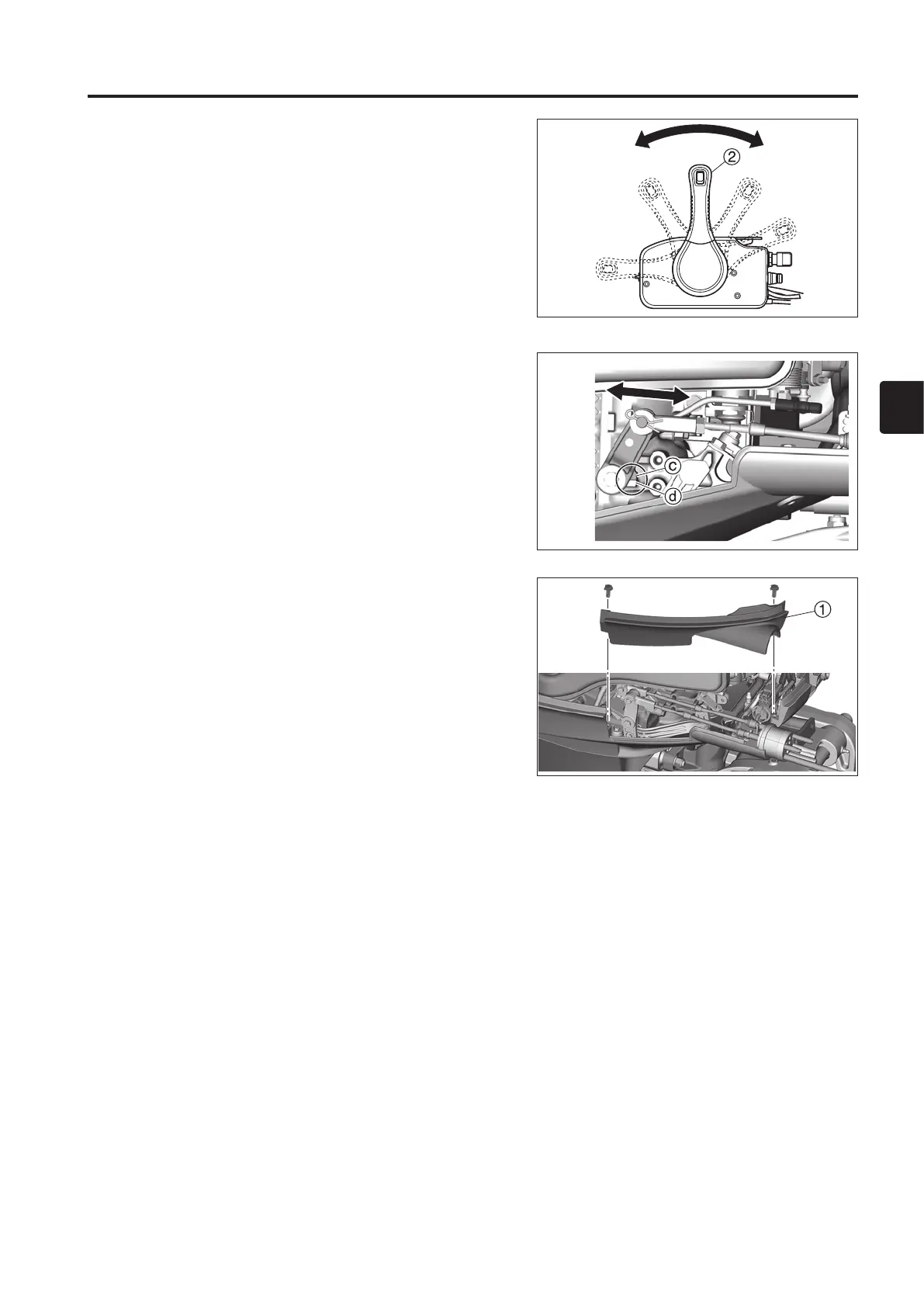

8. Lower the control lever 2 to the Forward (F) side until the
HQJLQHVWRSVDWDSSUR[ÝDQGFKHFNWKDWWKHRXWERDUG
motor shifts in. Lower the lever further and check that the
stopper c of the throttle arm contacts with the projection
d on the crankcase.
Next, check that the throttle valve is fully closed when the
control lever is returned to the neutral position (N). If the
throttle valve is not fully closed, readjust the position of the
cable joint 3 on the outboard motor side and reinstall it.
9. Check if the throttle valve operates smoothly, and repeat
Steps 2 to 7 where necessary.
10. Install the stay cover 1 and then install the top cowl.
N
R
F
