Tormach PCNC 440 - Calibrating Probe Tip

Chapter 8
156
UM10372_PCNC440_Manual_0221A
ACCESSORiES
Automated probing funcons are available to:
• Find the center of a bore
• Find the center of a circular boss
• Find the corner of a vise

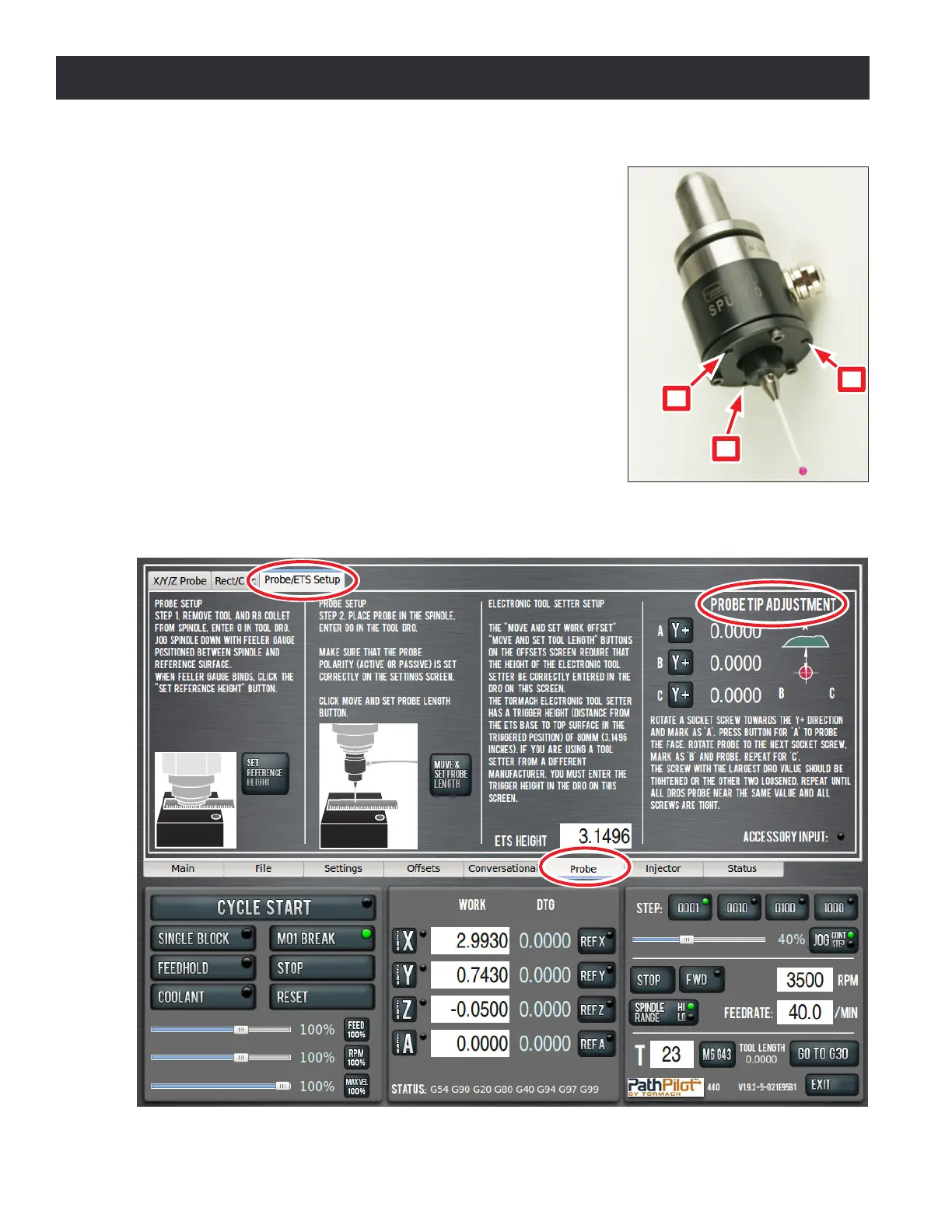

NOTE: The three adjustment set screws are 120° apart (see Figure 8.8).
8.3.5.1 Calibrating Probe Tip
For best results, the probe must be rounely calibrated so the
center line of the probe p is coaxial to the centerline of the
PCNC mill spindle. The calibraon procedure should be done:
• Prior to rst use
• Aer p replacement
• Periodically aer extended usage
1. On the Probe screen, click the Probe/ETS Setup tab (see Figure 8.9).
Figure 8.8
A
B
C
Figure 8.9
