OvERviEw
1. OvERviEw
Tormach PCNC mills are intended for use as general purpose CNC mills. Pictured below is a typical
PCNC 440 mill set up, including several opons.
Item # Component Item # Component
1 Electrical Cabinet 6 Spindle Door
2 Main Disconnect Switch 7 Spindle Door Latch
3
DB-25 Connecon and
Accessory Input
8 Chip Pan
9 Deluxe Stand (oponal)
4 Serial Number Plate
5 Controller Compartment

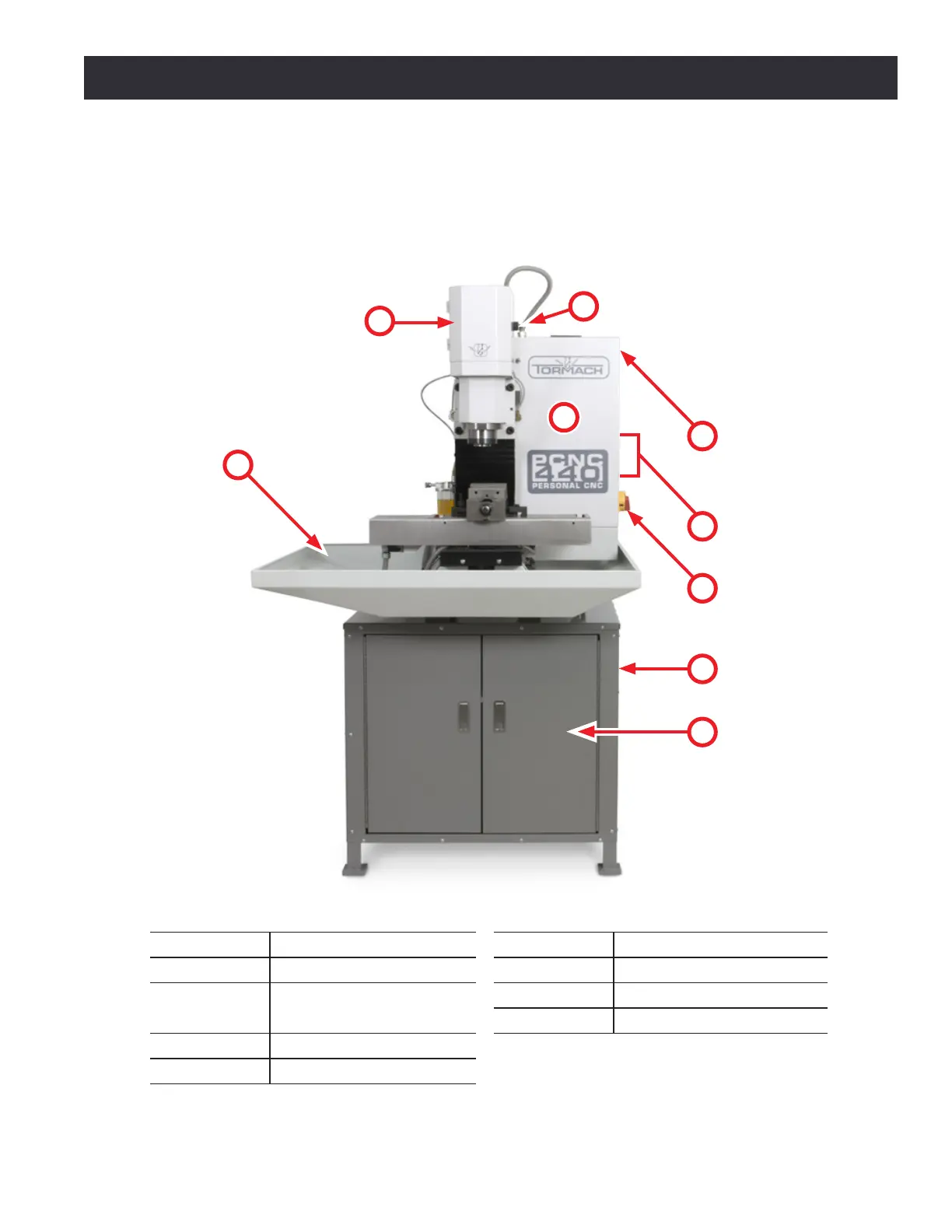

Figure 1.1
5
9
2
4
3
7
8
6
1
