Tormach PCNC 440 - Receiving, Uncrating, and Initial Inspection

Chapter 3
24
UM10372_PCNC440_Manual_0221A
iNSTAllATiON
3. iNSTAllATiON
This chapter covers basic installaon of a PCNC 440 mill, which takes approximately two hours. This
esmate does not include oponal accessories like enclosures, power drawbars, or automac tool
changers (ATC).
Required for set up:
• Power Strip
Recommended for installaon/set up:
• Gloves • Engine Hoist
• Eye Protecon • Socket Set
• Pry Bar • Metric Wrench Set
• Pallet Jack
3.1 Receiving, Uncrating, and Initial Inspection
WARNING! Transport and Li Hazard: The transport, liing, and moving of mill should be done by
qualied professionals. Failure to do so could result in death, serious injury, and/or mill damage.
3.1.1 Shipment Arrival
Depending on products and opons ordered, the PCNC system arrives in two or more shipments:
• PCNC mill (freight)
• Chip pan (freight; shipped separate from mill)
• Stand (freight)
• Accessory shipment (freight and/or parcel service)
IMPORTANT! Specic shipping informaon is displayed on
packing list. Wait unl all shipments are received before
beginning installaon.

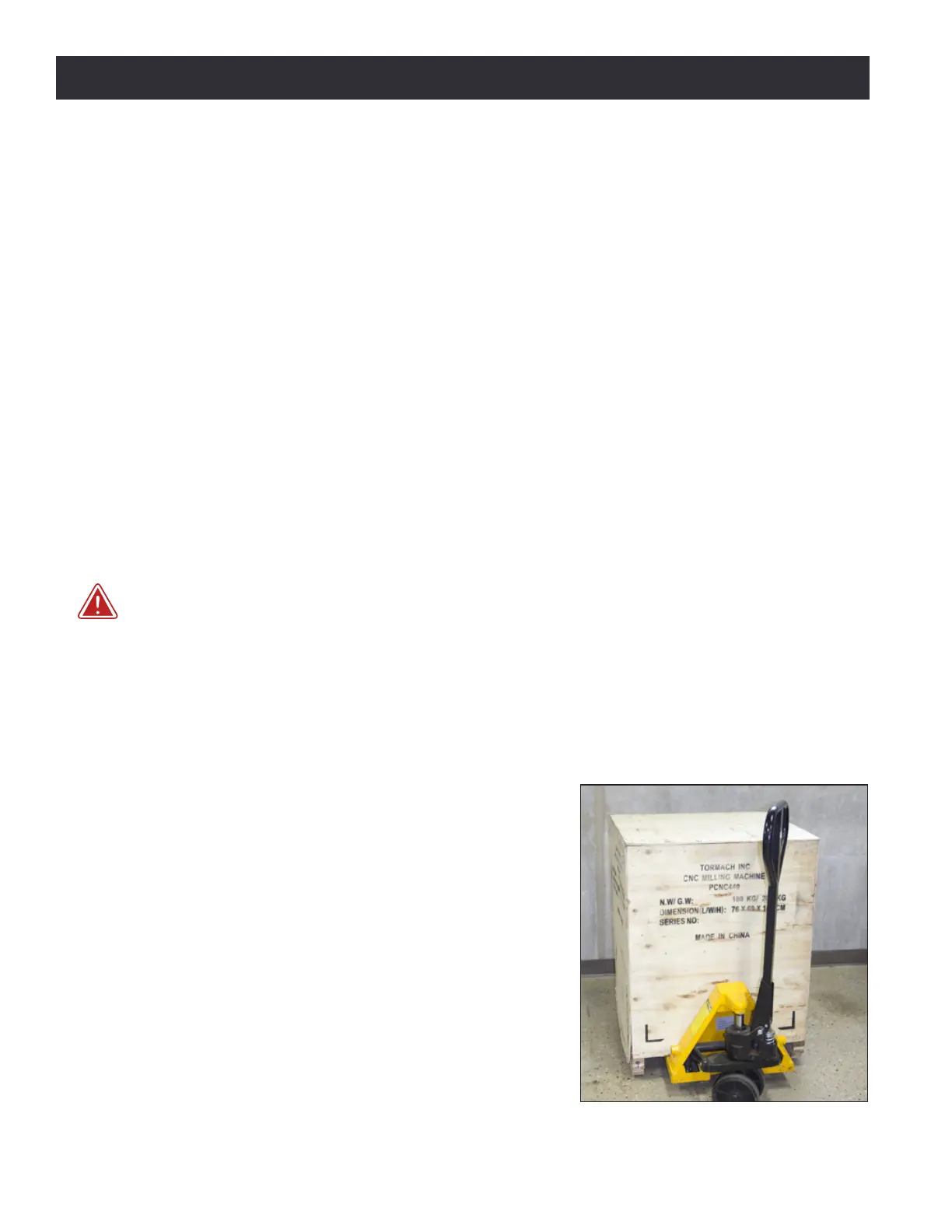

3.1.2 Moving the Crate
The crated mill is shipped on a pallet and can be o-loaded
from a truck with a tailgate li and moved (on smooth
surfaces) using a hydraulic pallet jack to the installaon
locaon (see Figure 3.1).
Figure 3.1
