Tormach PCNC 440 - Initial PathPilot Controller Configuration

Chapter 3
32
UM10372_PCNC440_Manual_0221A
iNSTAllATiON
3.6 Initial PathPilot Controller Configuration
WARNING! Unaended Operaon: Machine is not designed to operate unaended. Do not leave
machine unaended during operaon. When machine is not in use, turn the main disconnect o. Failure
to do so could result in death, serious injury, and/or machine damage.
Power on the PathPilot controller by switching the power strip on (not included); PathPilot controller
will boot. Turn the Main Disconnect switch to On (see Figure 3.15).
The rst me the PathPilot controller is powered on it starts a conguraon process that allows
the operator to congure the PathPilot operang system to the parcular machine (PCNC 1100
mill, PCNC 770 mill, PCNC 440 mill, or 15L Slant-PRO lathe). Follow the on-screen instrucons to
complete controller conguraon. Aer conguraon, PathPilot automacally launches; the
controller automacally loads PathPilot for the selected machine when the controller is powered
on in the future.

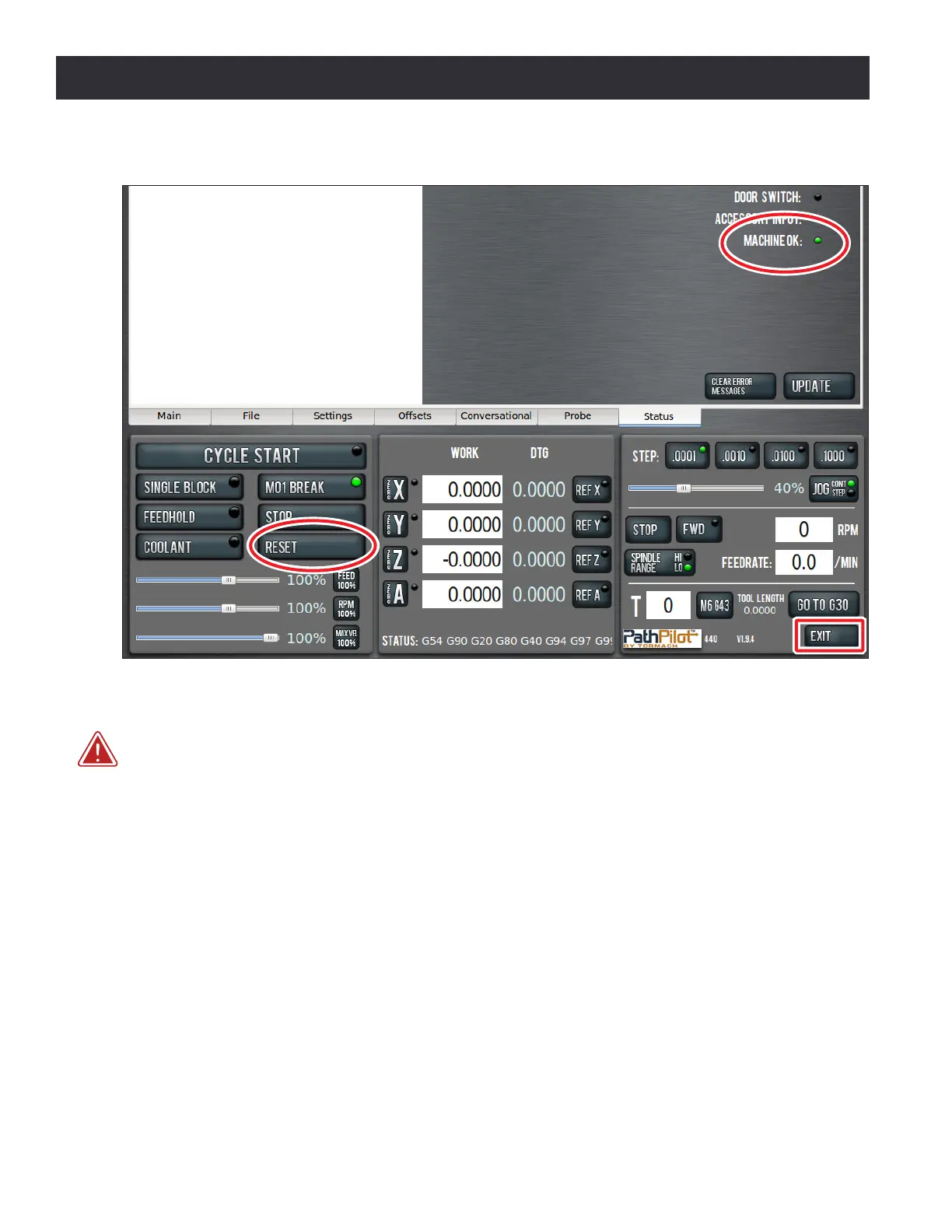

Figure 3.16
PathPilot Interface
