Chapter 6
77
UM10372_PCNC440_Manual_0221A
PATHPilOT iNTERFACE
• -any-
• 6061
4. In the Tool DRO, type the assigned tool number.
5. Click Refresh (to the right of the Sub-type dropdown).
The following machining-related DROs are calculated:
• Spindle RPM
• Feedrate
• Z Feedrate
• Depth of Cut (if milling)
• Stepover (if milling)
• Peck (if drilling)

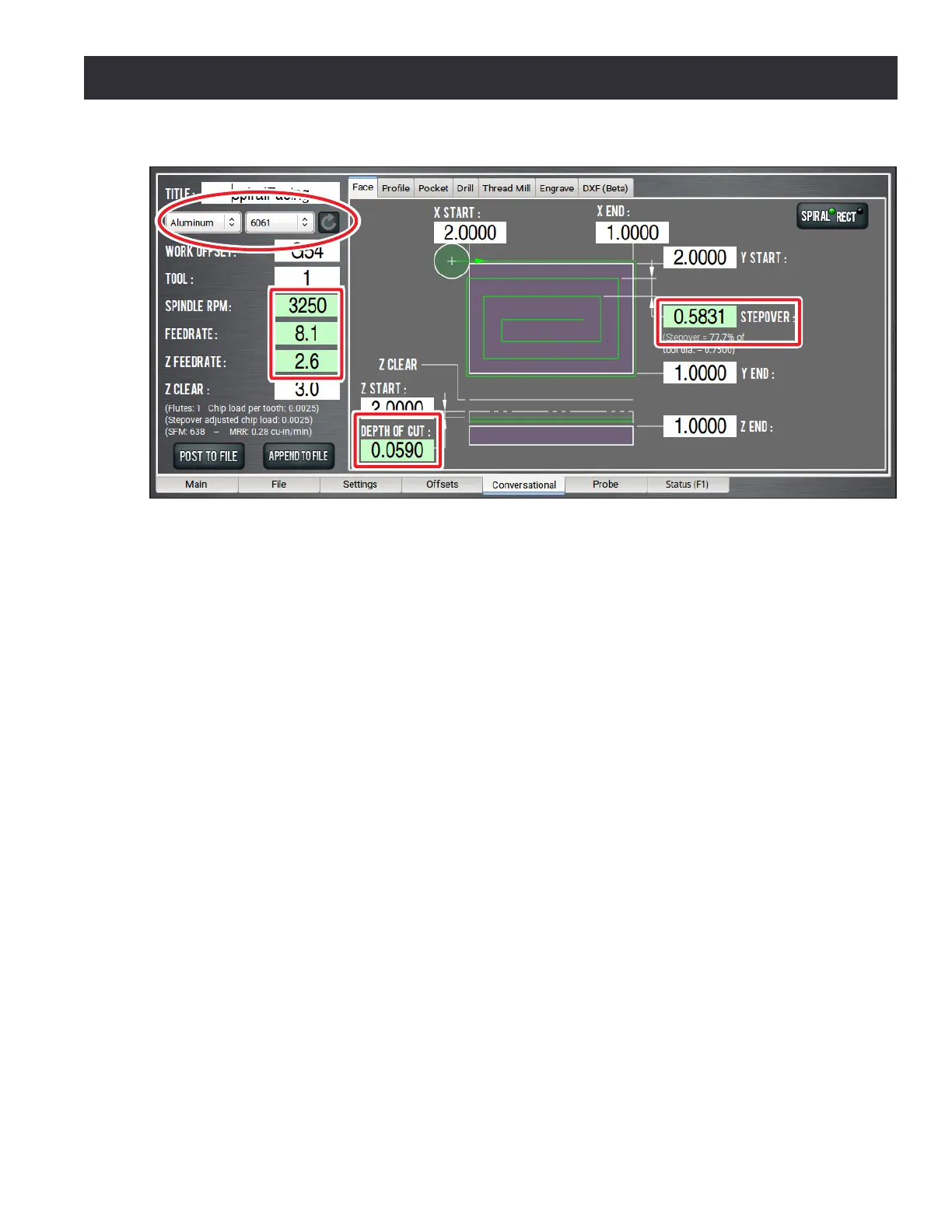

NOTE: Aer PathPilot calculates values for the machining-related DROs, the background turns green (see
Figure 6.23).
Figure 6.23
