Chapter 6
84
UM10372_PCNC440_Manual_0221A
PATHPilOT iNTERFACE
If the pocket diameter is greater than 2x tool diameter, this allows a helical entry which cuts a hole
of 2 x tool diameter in center of pocket. Material clearing is done with a spiral cut out to the pocket
diameter, plus a cut around the perimeter.
XY DROs
X and Y Center – These DROs should be set to the locaon of the pocket center.
Pocket Dia. – Enter value of the pocket diameter. The tool radius is used to set the tool path diameter.
Stepover – This is the tool path oset between each rotaon of the spiral cut. A stepover of 0
creates a single pass (or circular slot) around the perimeter (inside) of the pocket.
Z DROs
Z Start and End – The rst Z pass cuts at Z Start – Depth of Cut adjusted; last Z pass cuts at the Z End
locaon. For a single Z pass at Z End, enter 0 or a full Z range value into the Depth of Cut DRO.
Depth of Cut – The Depth of Cut entered into the DRO is later adjusted to t evenly within the Z
range (Z End – Z Start), so each Z pass has the same depth instead of having a short depth on the last
pass. For a single Z pass at Z End, enter 0 or a full Z range value into the Depth of Cut DRO.
Z Clear – The Z locaon the tool moves or retracts to when starng or ending the Pocket roune.

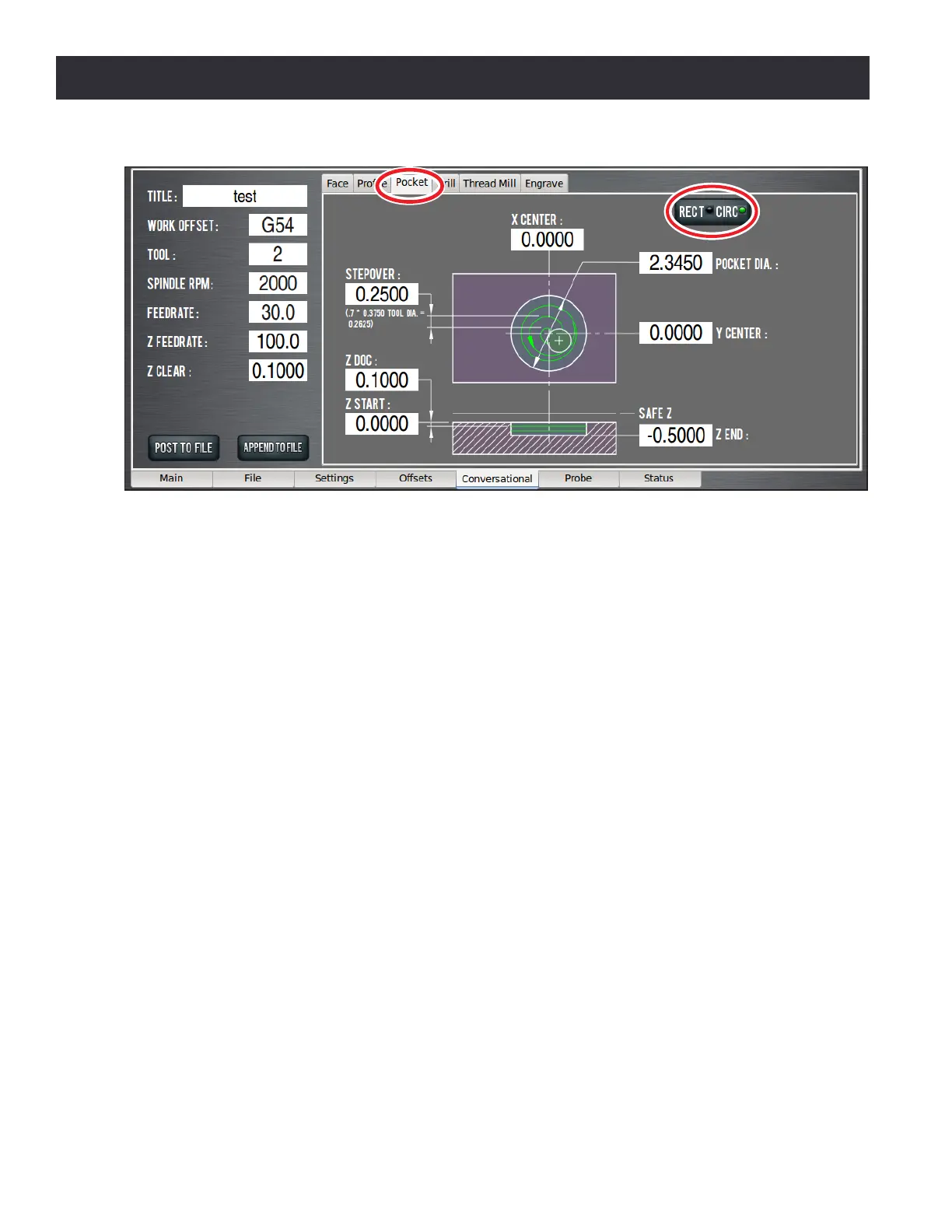

Figure 6.31
