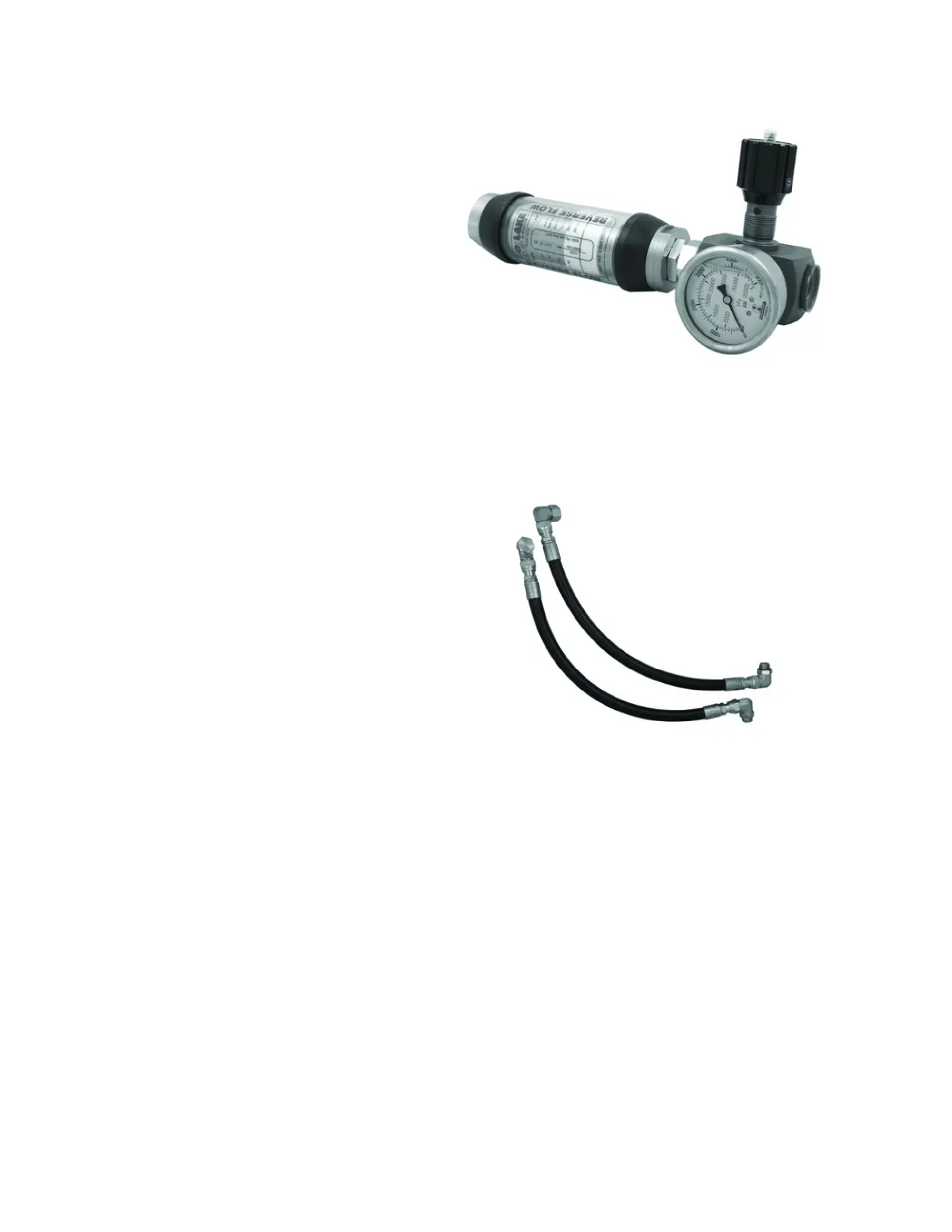

40GPMHydraulicTester(PressureandFlow)

ToroPartNo.AT40002

Usethistestertotestthehydrauliccircuitsandcomponents

forowandpressurecapacitiesasrecommendedinT esting

theHydraulicSystem(page5–47).Thistesterincludesthe

following:

•LoadValve:Turnthevalvetorestricttheowtocreatea

simulatedworkingloadinthecircuit.

•LoadValve:Turnthevalvetorestricttheowtocreatea

simulatedworkingloadinthecircuit.

•PressureGauge:Aglycerinelledpressuregauge0to

35,000kPa(0to5,000psi)toprovideoperatingcircuit

pressure.

•FlowMeter:Thismetermeasurestheactualuidowinthe

operatingcircuitwithagaugeratedat20to150L/minute(4

to40gallons/minute).

Thistesterdoesnotincludethehoses;refertoHydraulic

HoseKit(page5–40).

HydraulicHoseKit

ToroPartNo.TOR6007

Thiskitincludesthettingsandhosesthatareusedto

connectthe40GPMhydraulictester(AT40002)orhigh

owhydrauliclterkit(TOR6011)tothemachinehydraulic

tractionsystemcomponents.

HydraulicSystem:SpecialTools

Page5–40

Groundsmaster

3280-D/3320

05138SLRevB
