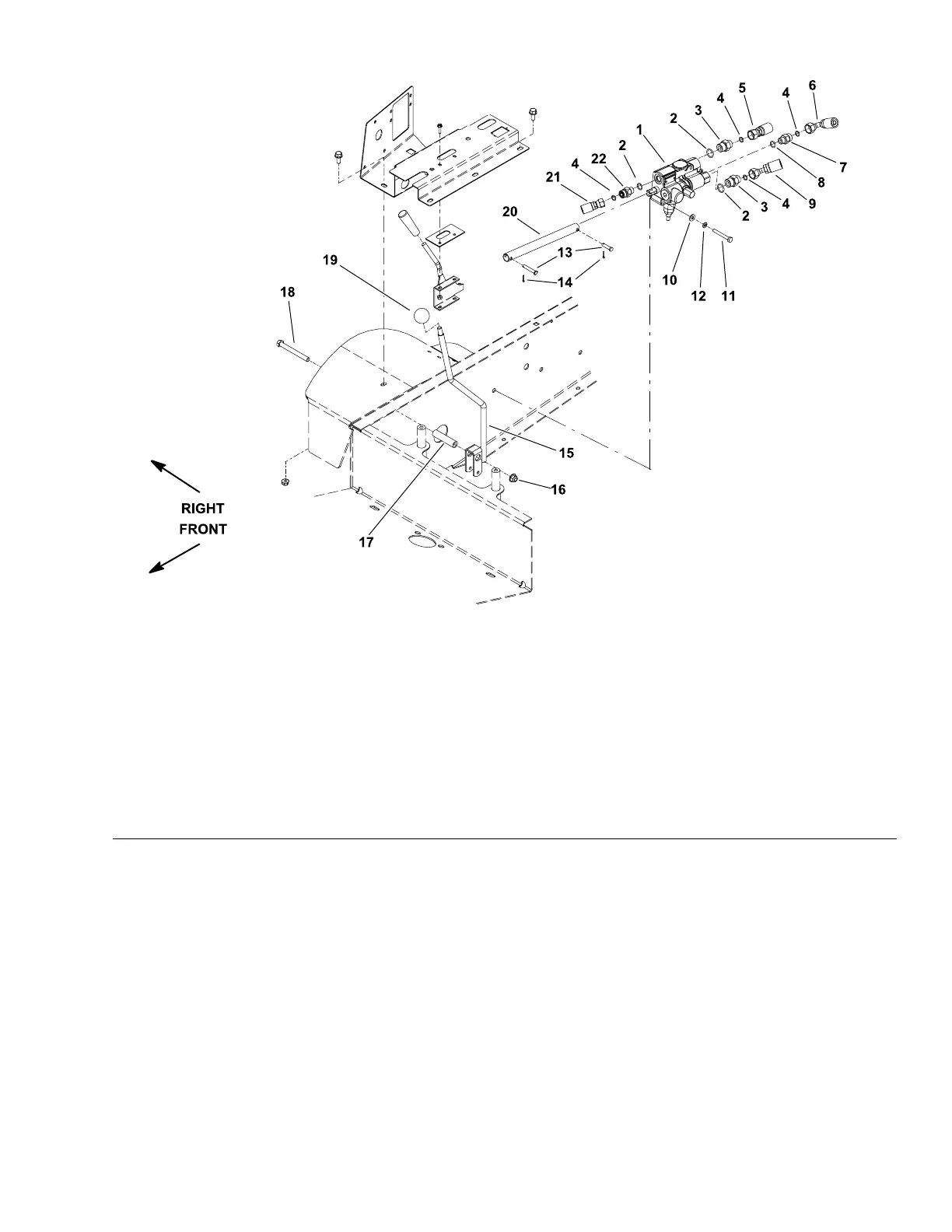

Lift
Control
V
alve
(Machine
Serial
Numbers
below
316000000)
g230840
Figure
102
1.
Lift
control
valve
9.
Hydraulic
hose
17.
Spacer
2.
O-ring
10.
Flat
washer
(2
each)
18.
Bolt
3.
Hydraulic
adapter
1
1.
Bolt
(2
each)
19.
Knob
4.
O-ring
12.
Lock
washer
(2
each)
20.
Link
tube
5.
Hydraulic
hose
13.
Pin
21.
Hydraulic
hose
6.
Hydraulic
hose
14.
Cotter
pin
22.
Check
valve
7.
Hydraulic
îš¿tting
15.
Lift
lever
8.
O-ring
16.
Flange
nut
Groundsmaster
®
3280-D/3320
Page
5–127
Hydraulic
System:
Service
and
Repairs
05138SL
Rev
B
210
