ServicingtheBladeSpindle

DisassemblingtheBladeSpindle

g223663

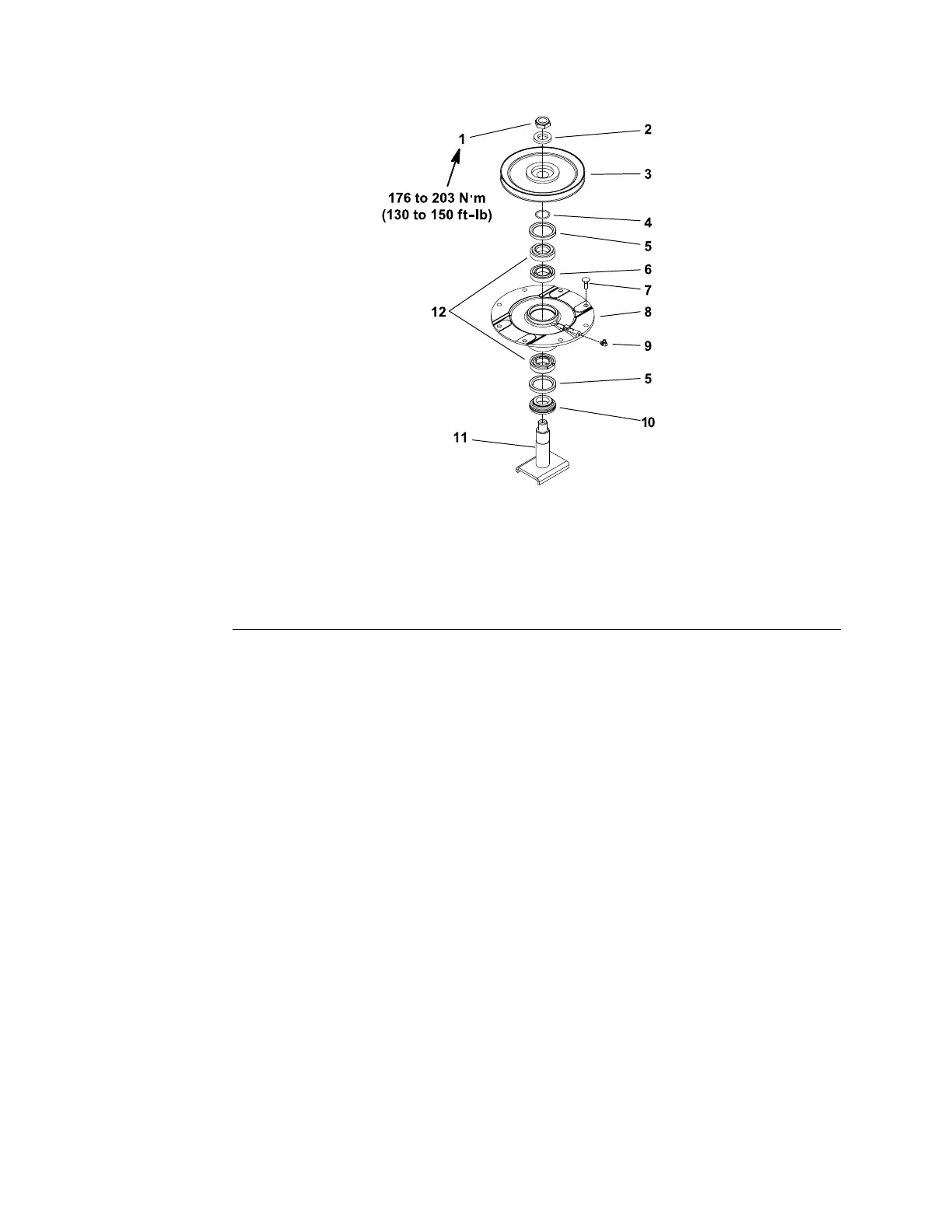

Figure298

1.Locknut

5.Oilseal(2each)9.Greasetting

2.Specialhardenedwasher

6.Bearingspacer

10.Shaftspacer

3.Pulley

7.Ribbedneckbolt(8each)11.Spindleshaft

4.O-ring8.Spindlehousing

12.Bearingset

1.Removethelocknutfromthetopofthespindleshaft.

2.Removethespecialhardenedwasherandpulleyfromtheshaft.

3.Useanarborpresstoremovethespindleshaftfromthespindlehousing.

Note:Ensurethatthespindleshaftspacerremainsonthespindleshaft

whileremovingtheshaft.

4.Removetheoilsealsfromthespindlehousing.

5.Removethebearingcones,O-ring,innerbearingspacer,andspacerring

fromthespindlehousing.

6.Useanarborpresstoremovethe2bearingcupsandouterbearingspacer

fromthehousing.

Note:Thelargesnapringcanremaininsidethespindlehousing.Removing

thelargesnapringisverydifcult.

CuttingUnits:ServiceandRepairs

Page10–10

Groundsmaster

3280-D/3320

05138SLRevB
