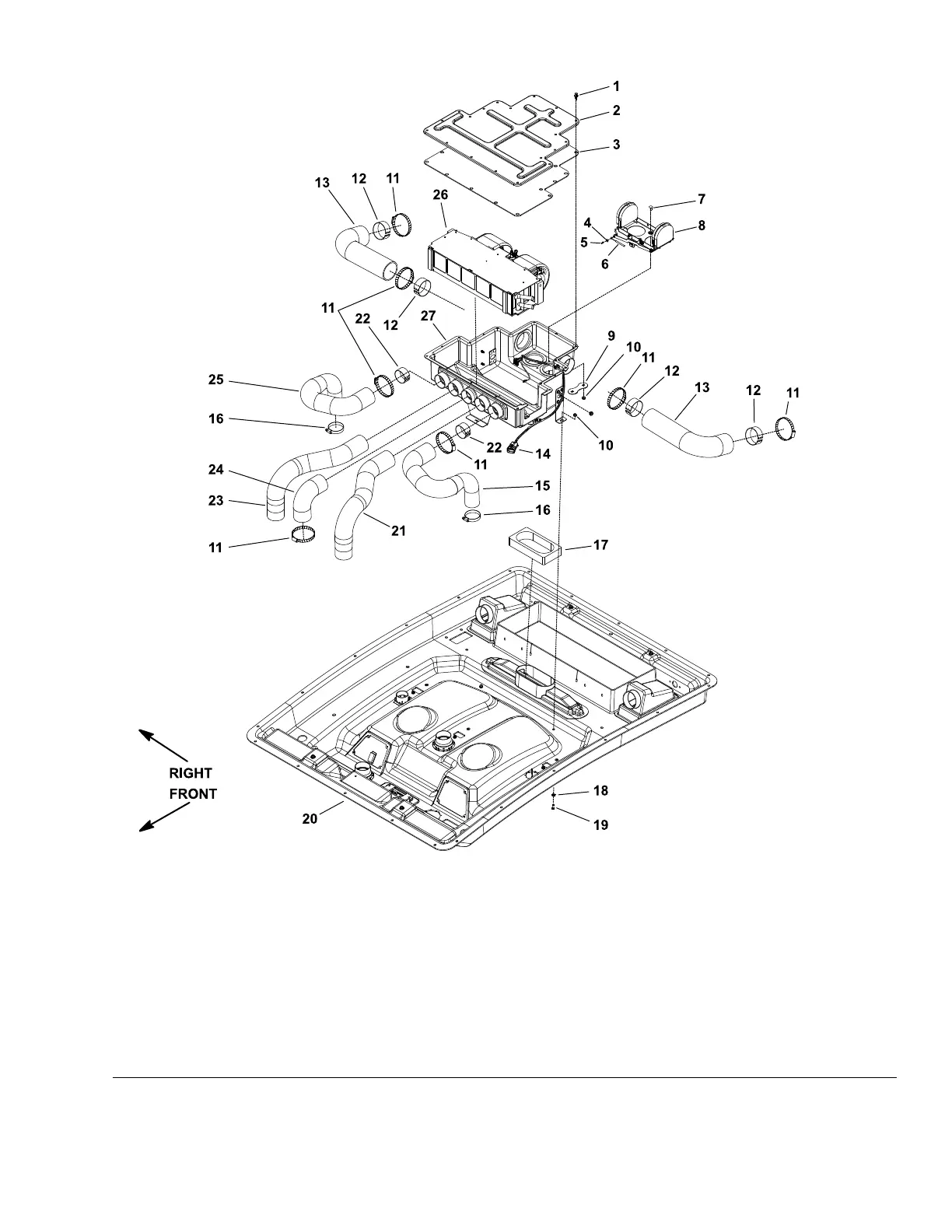

MixingBoxAssembly
g243574
Figure311
1.Rivet(19each)
8.Airdiverterassembly
15.Venthose(left)22.Tubesupport(2each)
2.Mixingboxcover
9.Supportplate16.Hoseclamp(2each)23.Venthose(rightdefrost)
3.Coverinsulation10.Flangenut(4each)17.Mixingboxinletfoam24.Venthose(center)
4.Flatwasher(4each)11.Hoseclamp(7each)18.Flatwasher(2each)25.Venthose(right)
5.Hairpincotter(4each)12.Tubesupport(4each)
19.Button-headscrew
(2each)
26.Heatercore/fanassembly
6.Controlcable13.Intakehose(2each)20.Cabheadliner
27.Mixingbox
7.Carriagescrew(2each)
14.Mixingboxwireharness
21.Venthose(leftdefrost)
Groundsmaster
®
3280-D/3320
Page11–7
OperatorCab:ServiceandRepairs
05138SLRevB
