ServiceandRepairs

Note:RefertotheKubotaWorkshopManual:05SeriesEngine(Groundsmaster

3280-D)ortheBriggsandStratton/DaihatsuEngineRepairManual

(Groundsmaster3320)foradditionalcomponentrepairinformation.

LiftControlValveSolenoidValveCoils(MachineSerialNumber

above311000000)

g227288

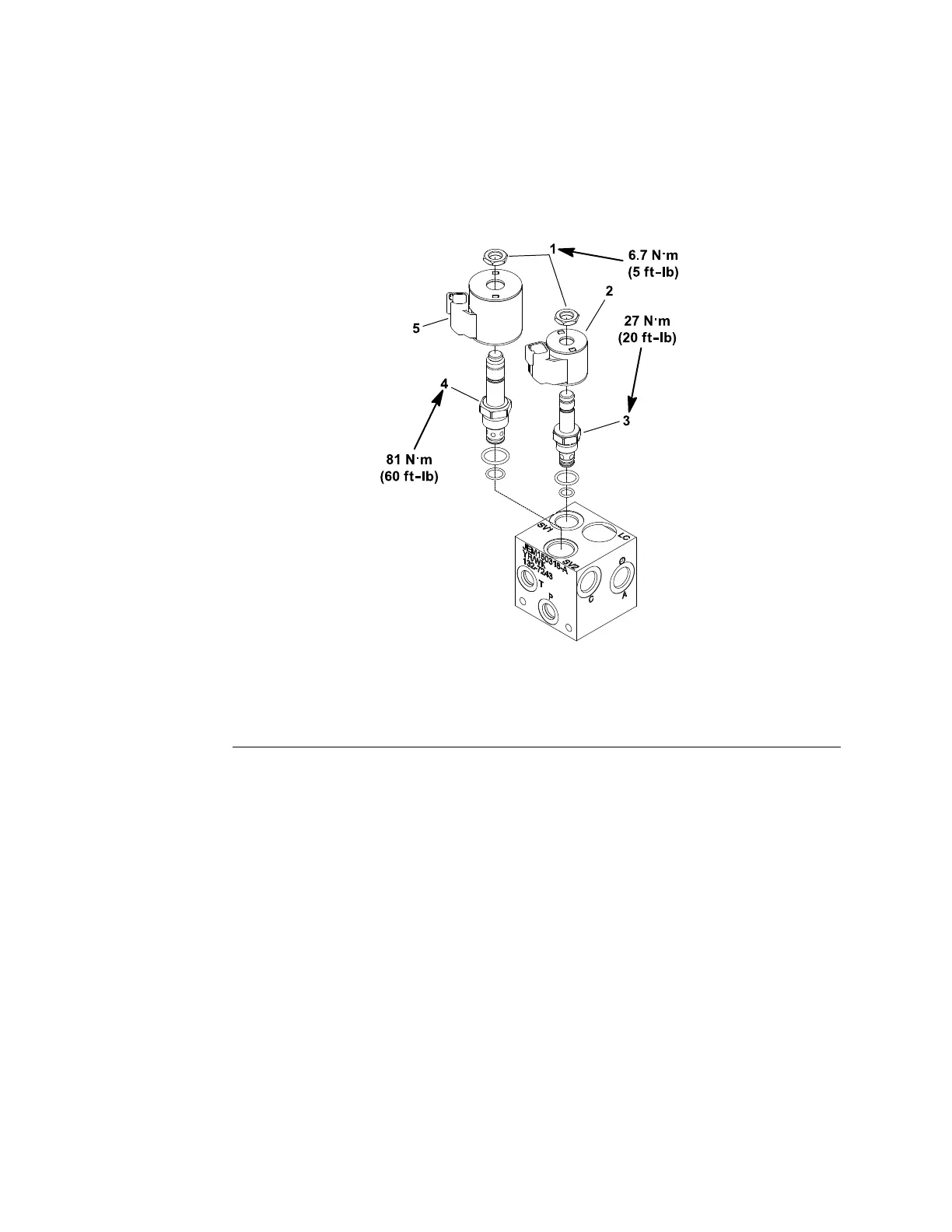

Figure174

1.Nut(2each)3.Solenoidvalve(SV1)5.Solenoidcoil

2.Coil4.Solenoidvalve(SV2)

Youcanreplaceahydraulicsolenoidvalvecoilontheliftcontrolvalve(Figure

174)withoutopeningthehydraulicsystem.

RemovingtheLiftControlValveSolenoidValveCoils

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,settheparking

brake,shutofftheengine,andremovethekeyfromthekeyswitch.

2.Locatethesolenoidvalvecoilthatyoureplace.RefertoFigure174forthe

locationofsolenoidcoilsontheliftcontrolvalve.

3.Disconnectthewireharnesselectricalconnectorfromthesolenoidvalve

coilthatyoureplace.

4.Removethenutfromthehydraulicvalve.

5.Slidethesolenoidcoilfromthevalve.

6.Cleananycorrosionordirtfromthevalve.

ElectricalSystem:ServiceandRepairs

Page6–76

Groundsmaster

3280-D/3320

05138SLRevB
