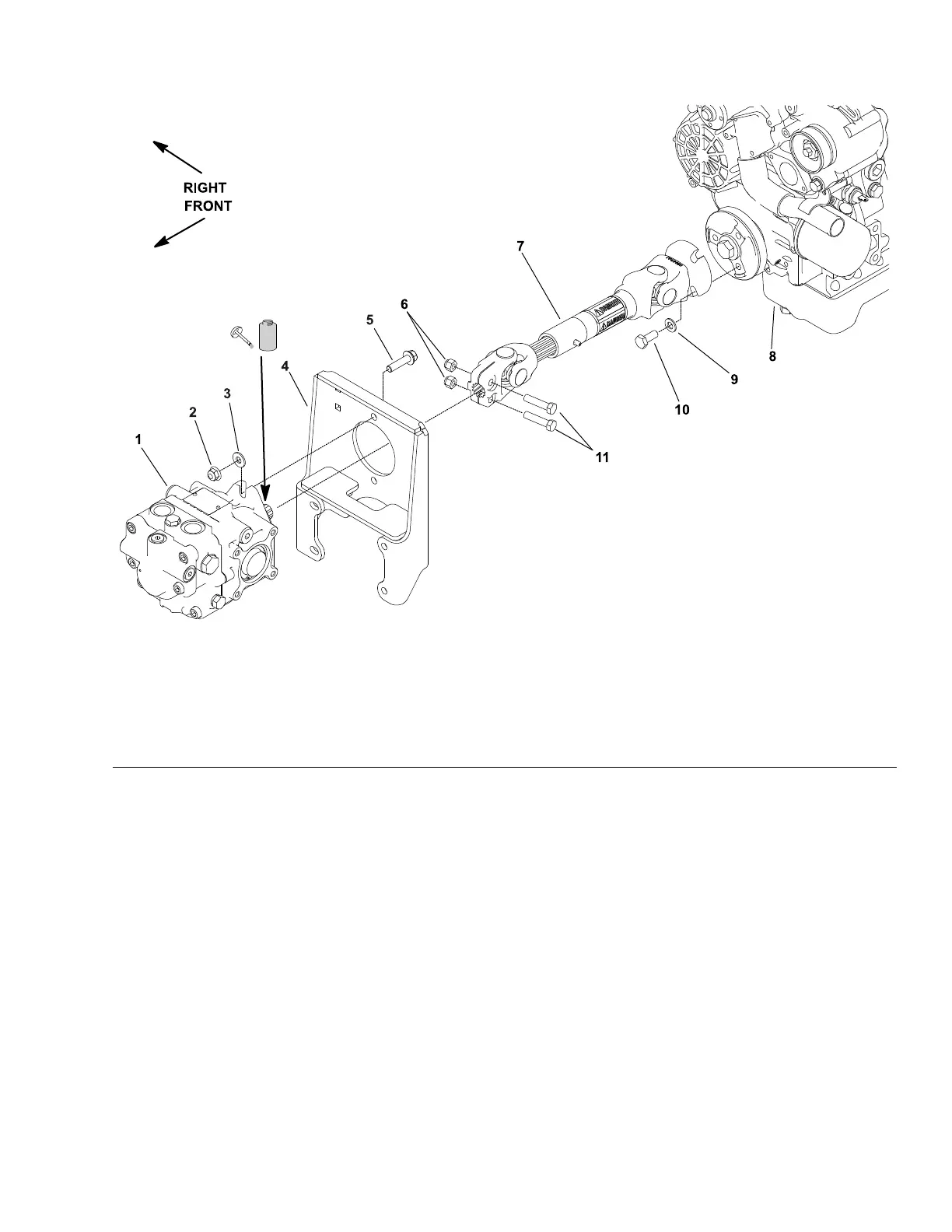

HydraulicPumpDriveshaft(MachineSerialNumberabove

316000000)

g224766

Figure85

1.Hydraulicpump

5.Flange-headscrew(2each)9.Flatwasher(3each)

2.Flangenut(2each)6.Locknut(2each)10.Bolt(3each)

3.Flatwasher(2each)7.Driveshaftassembly11.Bolt(2each)

4.Pumpbracket8.Kubotadieselengine

RemovingtheHydraulicPumpDriveshaft

1.Parkthemachineonalevelsurface,settheparkingbrake,lowerthecutting

deck,shutofftheengine,andremovethekeyfromthekeyswitch.

2.Removethe2locknutsand2atwashersthatsecurethedriveshaftloopto

theradiatorframe,andremovethedriveshaftloop.

3.Removethe2bolts(item11inFigure85)and2locknutsthatsecurethe

driveshaftendyoketothehydraulicpumpinputshaft.

4.Removethe3bolts(item10inFigure85)and3atwashersthatsecurethe

driveshaftangedyoketotheengine.

5.Removethedriveshaftassemblyfromthemachine.

Groundsmaster

3280-D/3320

Page5–97

HydraulicSystem:ServiceandRepairs

05138SLRevB
