Gearbox

g223994

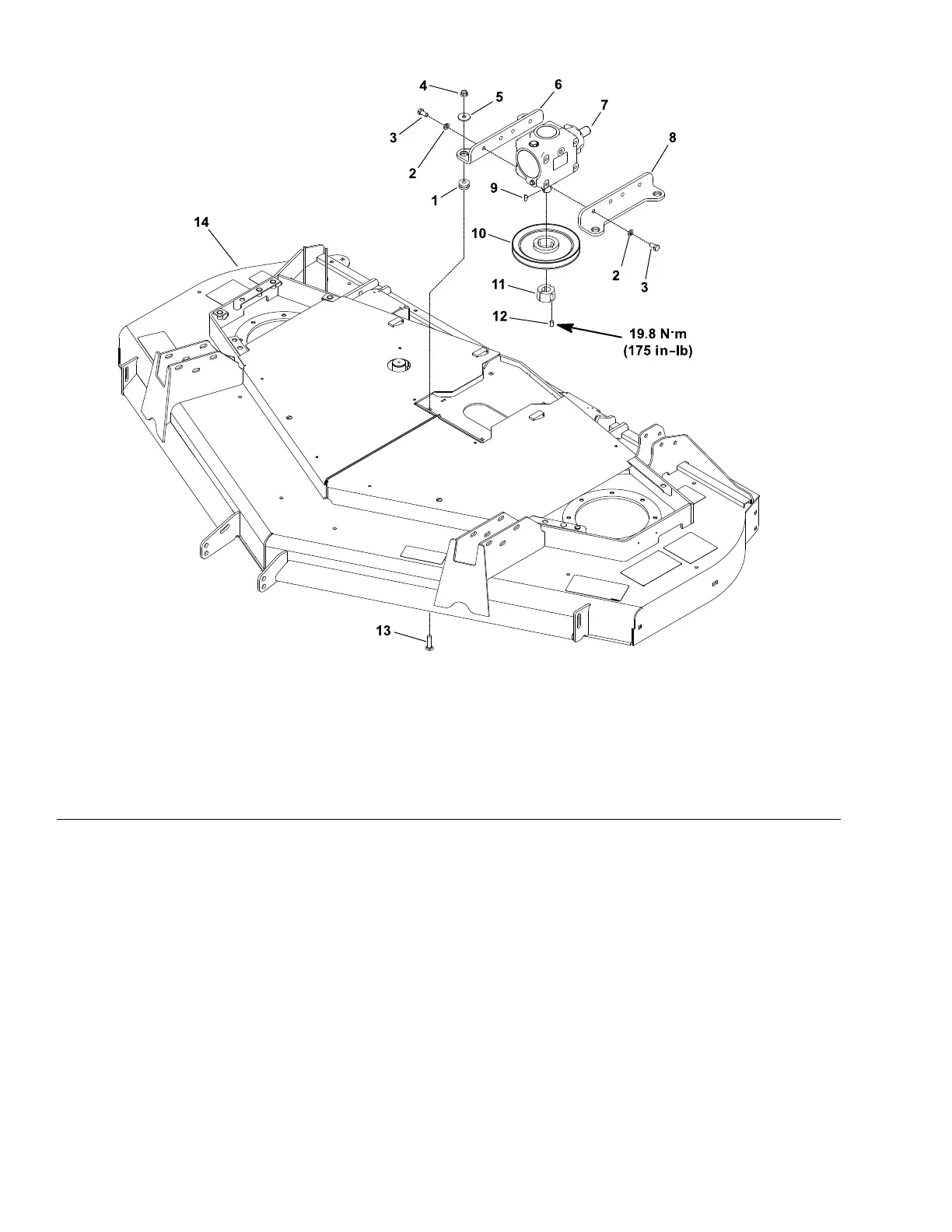

Figure303

1.Mount(4each)

6.Rightgearboxbracket11.Taperlockbushing

2.Lockwasher(4each)

7.Gearbox12.Setscrew(2each)

3.Bolt(4each)8.Leftgearboxbracket13.Carriagescrew(4each)

4.Flangenut(4each)9.Woodruffkey14.Cuttingdeck

5.Washer(4each)

10.Drivepulley

RemovingtheGearbox

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe

engine,settheparkingbrake,andremovethekeyfromthekeyswitch.

2.Removethebeltcoversfromthetopofthecuttingdeck.Removethedrive

beltfromthedeckpulleys;refertotheCuttingUnitOperator’sManual

CuttingUnits:ServiceandRepairs

Page10–14

Groundsmaster

3280-D/3320

05138SLRevB
