Toro 30403 Service Manual

PTOElectricClutch
AnelectricclutchisusedtoengagethePTO.Theelectricclutchismountedon
theenginecrankshaftandengageswhencurrentisappliedtotheclutch.The
clutchalsoincorporatesamagneticbraketostopclutchrotationwhentheclutch
isde-energized.
TestingthePTOElectricClutch
1.Parkthemachineonalevelsurface,lowerthecuttingdeck,settheparking
brake,shutofftheengine,andremovethekeyfromthekeyswitch.
2.Unlatchthehoodandraiseit.
g227535

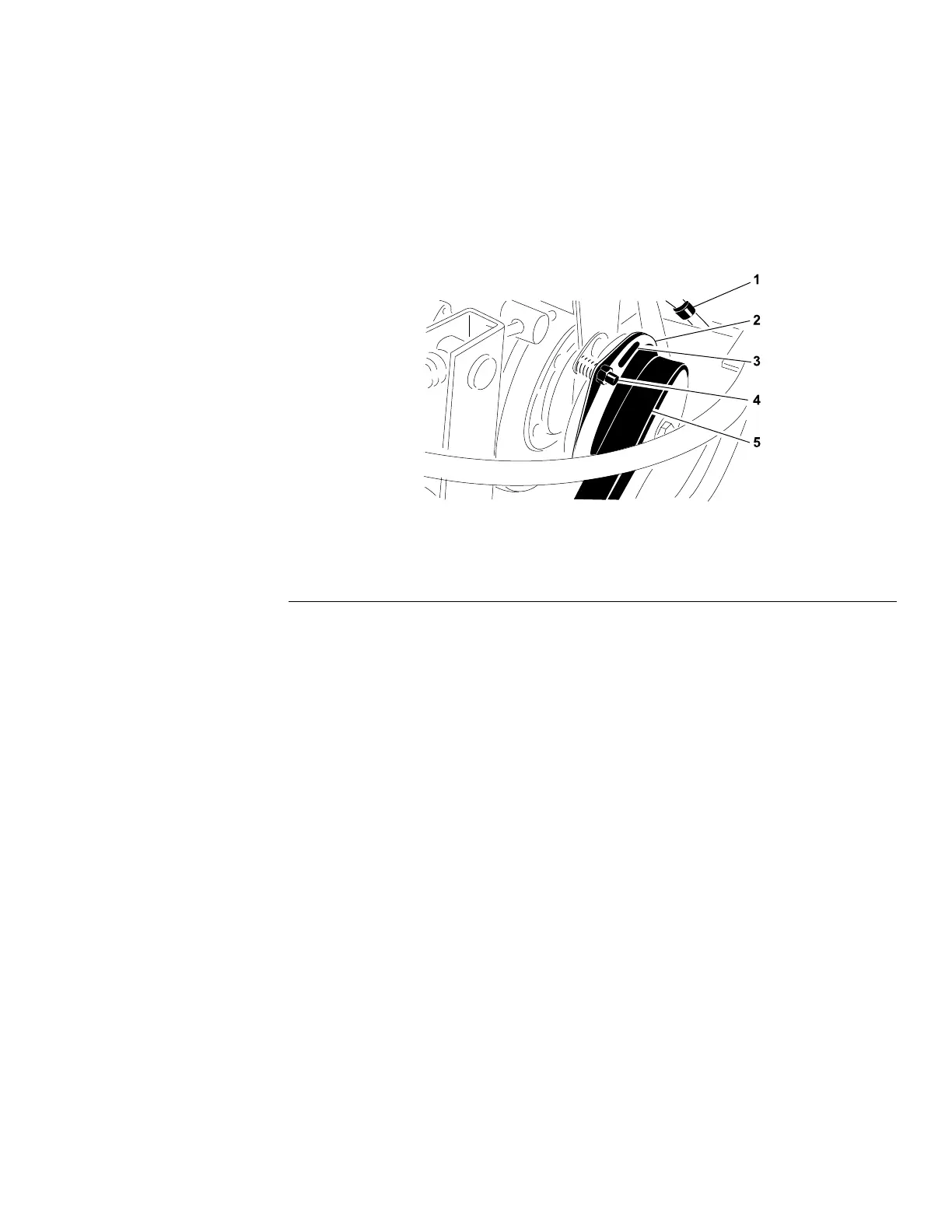

Figure165
1.Electricalconnector
3.Accessslot(3each)5.PTObelt
2.PTOclutch4.Locknut(3each)
3.LocatethePTOelectricclutchontheenginecrankshaft(Figure165).
4.Unplugtheclutchelectricalconnectorfromthemachinewireharness.
Note:Foraccurateclutchresistancemeasuring,theclutchshouldbeat
approximately21°C(70°F).
Note:Beforetakingsmallresistancereadingswithadigitalmultimeter,short
themultimetertestleadstogether.Themeterdisplaysasmallresistance
value(usually0.5ohmsorless).Thisresistanceisbecauseoftheinternal
resistanceofthemultimeterandtestleads.Subtractthisvaluefromthe
measuredvalueofthecomponentthatyouaretesting.
5.Useamultimeter(ohmssetting),checktheclutchcoilresistancebetween
the2terminalsoftheclutchelectricalconnector.Thecoilresistanceshould
beapproximately3.0ohms.Additionally,checkthatthereisnocontinuity
betweeneitheroftheclutchwireconnectorterminalsandtheclutchframe.
6.Usetheaccessslotsintheclutchcover,measurethegapbetweentheclutch
rotorandthearmature(Figure165).Thegapshouldbe0.4mm(0.015inch)
atallthe3accessslots.Ifgapisincorrect,loosenortightenthe3locknuts
evenlytoachievecorrect,uniformgap.
7.Asanadditionaltest,apply12voltstotheterminalsofthePTOelectric
clutch.Theclutchshouldengage.Iftheclutchdoesnotengagewhen
voltageisapplied,replacethePTOelectricclutch.
8.Iftheclutchremovalisnecessary;refertoPTOElectricClutch(page6–78).
9.AfteryoucompletethePTOelectricclutchtesting,connecttheclutch
electricalconnectortothemachinewireharness.
10.Lowerthehoodandsecureitwiththelatches.
Groundsmaster
®
3280-D/3320
Page6–65
ElectricalSystem:TestingtheElectricalComponents
05138SLRevB

Toro 30403 Specifications

General

Brand	Toro
Model	30403
Category	Lawn Mower
Language	English
