Adjustments

AdjustThrottleControl

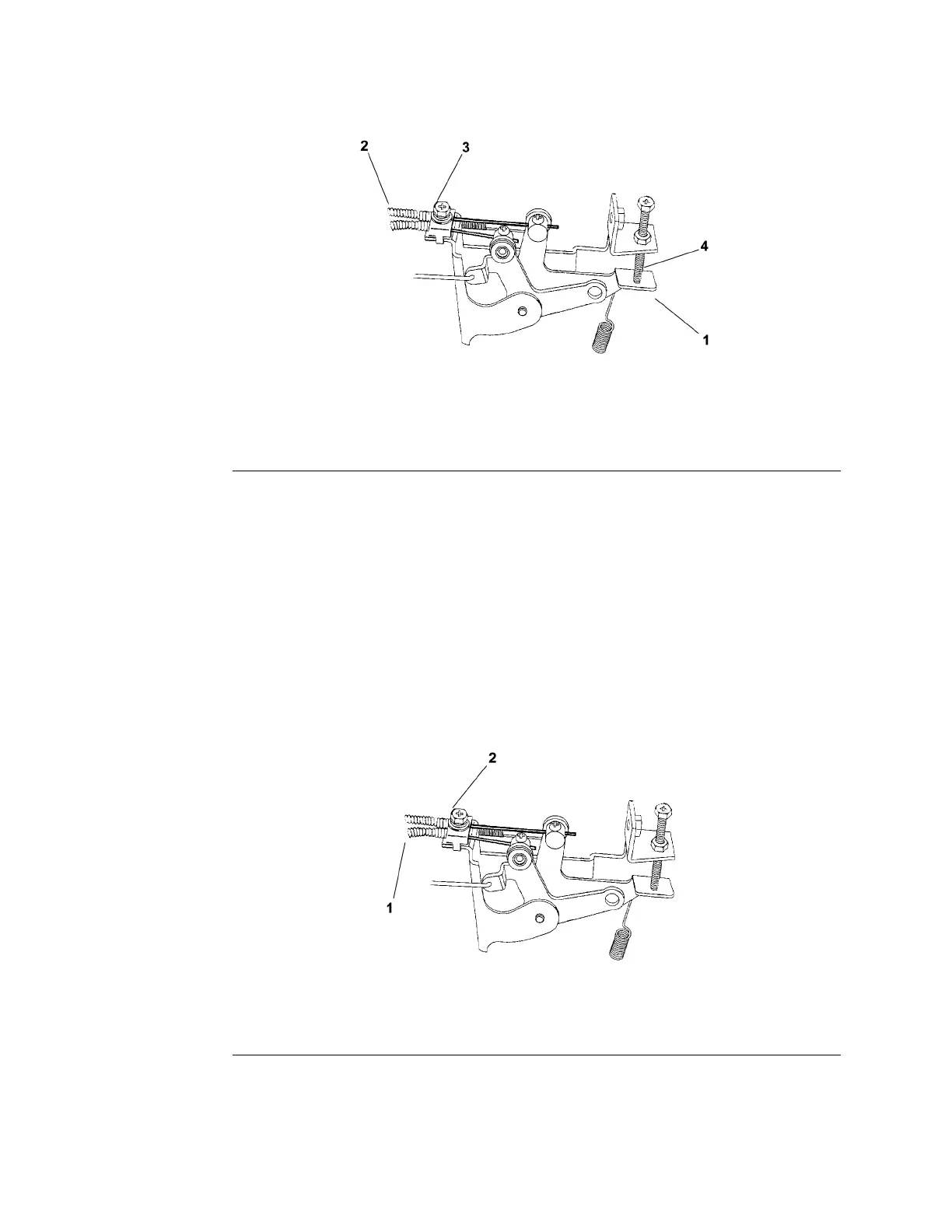

g230313

Figure7

1.Speedcontrollever3.Cableclampscrew

2.Throttlecontrolcable4.Highspeedscrew

Properthrottleoperationisdependentuponproperadjustmentofthrottlecontrol.

Ensurethatthethrottlecontrolisoperatingproperly.

1.MoveremotethrottlecontrollevertoFASTposition.

2.Checkpositionofspeedcontrolleverongovernorbracket.Speedcontrol

levershouldbecontactinghighspeedscrewwhenthrottlecontrolleveris

inFASTposition.

3.Ifnecessary,throttlecontrolcanbeadjustedbylooseningcableclampscrew

andrepositioningcontrolcableuntilspeedcontrollevercontactshighspeed

screwwhenthrottlecontrolleverisinFASTposition.

AdjustChokeControl

g230314

Figure8

1.Chokecable2.Cableclampscrew

Propercoldenginestartingisdependentuponproperadjustmentofchoke

control.Ensurethatthechokecontrolisoperatingproperly.

GasolineEngine:Adjustments

Page3–6

Groundsmaster

3280-D/3320

05138SLRevB
