BladeSpindle

g223993

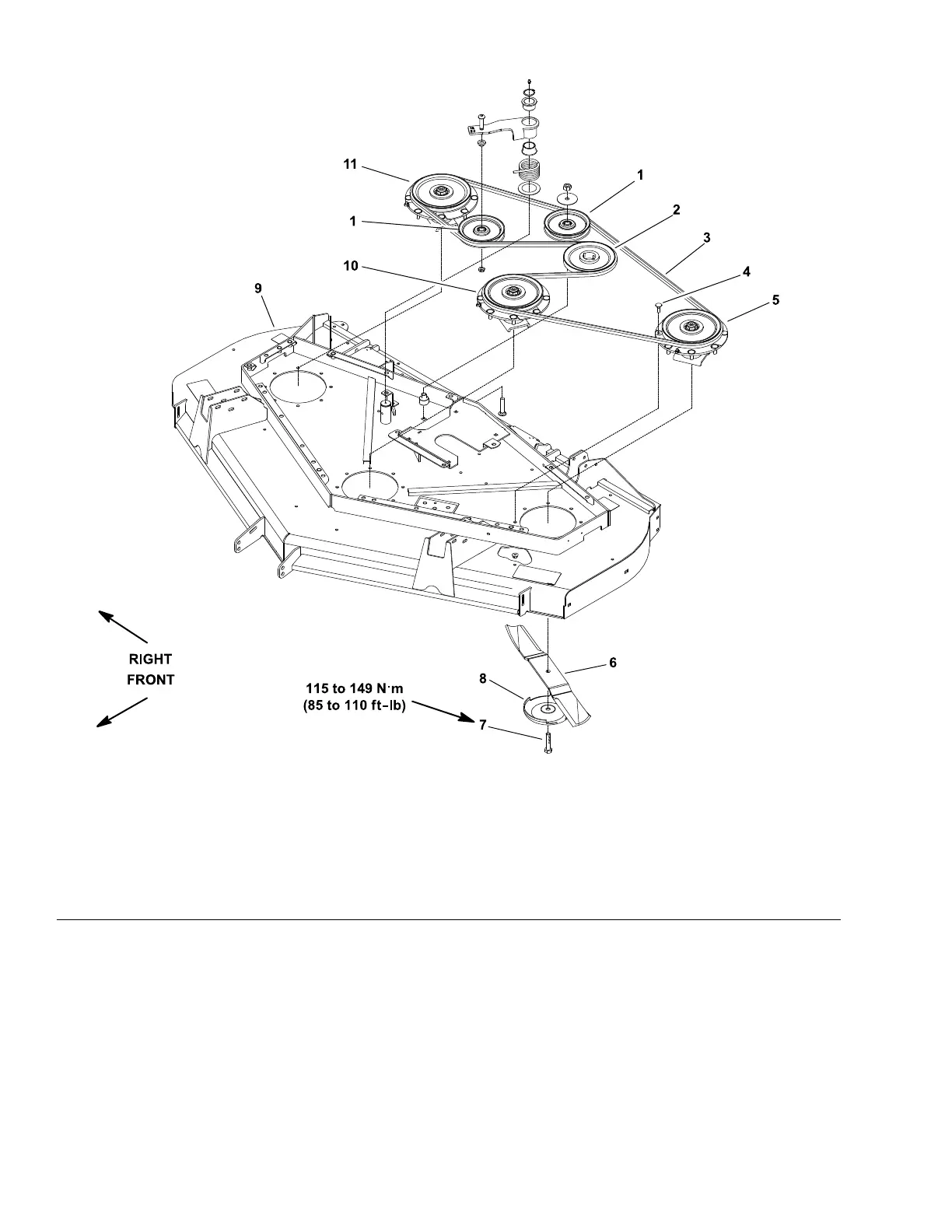

Figure296

1.Idlerpulley(2each)5.Leftspindleassembly9.Cuttingdeck

2.Drivepulley

6.Cuttingblade(3each)10.Centerspindleassembly

3.Drivebelt

7.Bladebolt(3each)

11.Rightspindleassembly

4.Ribbedneckbolt(8eachper

spindle)

8.Anti-scalpcup(3each)

RemovingtheBladeSpindle

1.Parkthemachineonalevelsurface,raisethecuttingdeck,shutoffthe

engine,settheparkingbrake,andremovethekeyfromthekeyswitch.

Supportthecuttingdecksothatitcannotfallaccidentally.

2.Removethebeltcoversfromthetopofthecuttingdeck.Removethedrive

beltfromthedeckpulleys;refertotheCuttingUnitOperator’sManual.

3.Removethecuttingblade(item6inFigure296),anti-scalpcup,andblade

boltfromthespindle;refertotheCuttingUnitOperator’sManual.

CuttingUnits:ServiceandRepairs

Page10–8

Groundsmaster

3280-D/3320

05138SLRevB
