TractionNeutralArmAssembly(MachineSerialNumberabove
316000000)
g225054

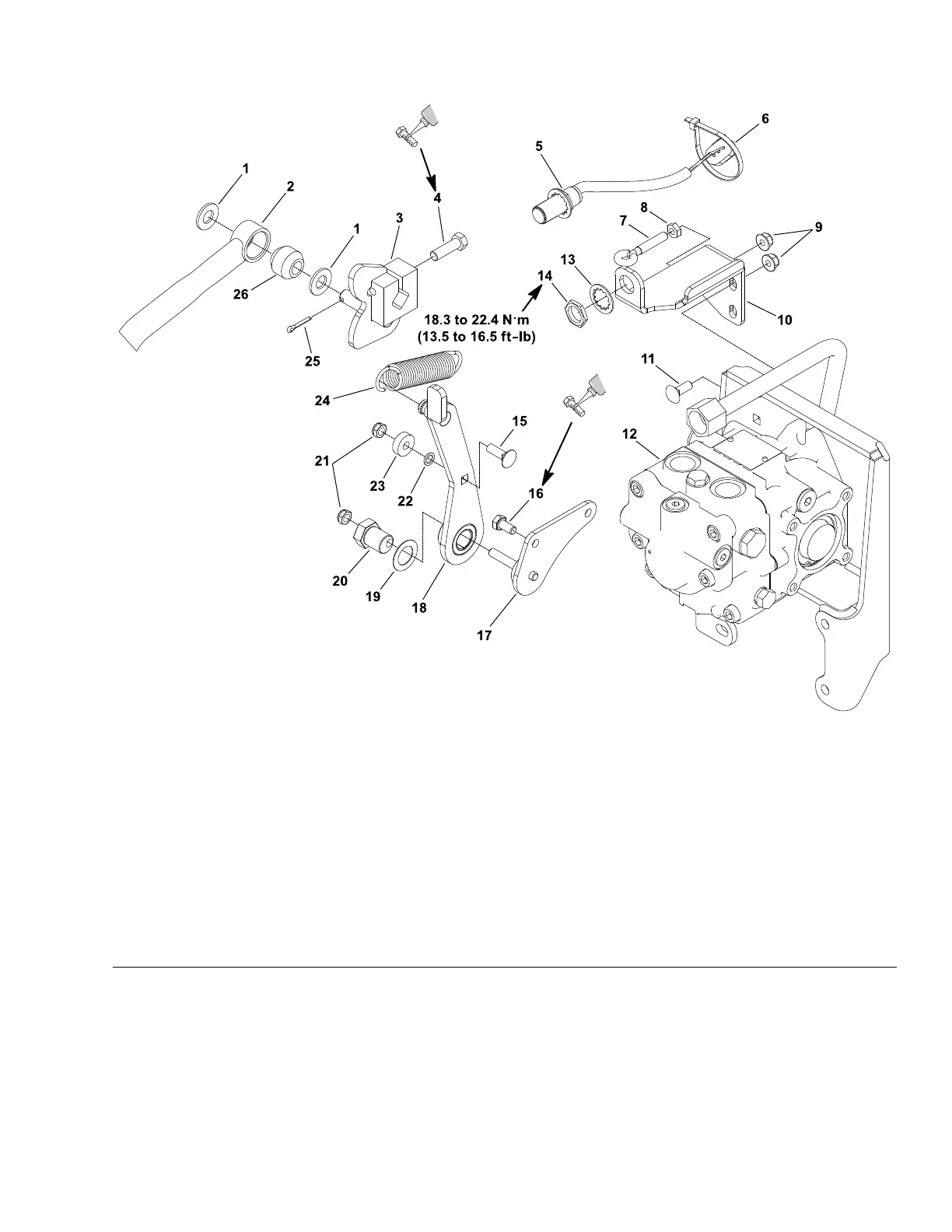

Figure89
1.Flatwasher(2each)10.Sensorbracket
19.Thrustwasher
2.Tractionrod
11.Carriagescrew(2each)
20.Tractionstud
3.Neutralcam12.Hydraulicpump
21.Locknut(2each)
4.Bolt
13.Lockwasher(2each)
22.Bearingspacer
5.Tractionneutralsensor
14.Jamnut(2each)
23.Ballbearing
6.Cabletie15.Carriagebolt
24.Extensionspring
7.Threadeyebolt(right)16.Bolt(2each)25.Cotterpin
8.Jamnut17.Pivot26.Rubberbushing
9.Flangenut(3each)
18.Neutralarm
DisassemblingtheTractionNeutralArmAssembly
1.Disassembletheneutralarmcomponentsonthehydraulicpumpas
necessary(Figure89).
Note:Toremovetheneutralcam(item3inFigure89)fromthehydraulic
pump,thehydraulicpumphastobedisassembled.
Groundsmaster
®
3280-D/3320
Page5–105
HydraulicSystem:ServiceandRepairs
05138SLRevB
