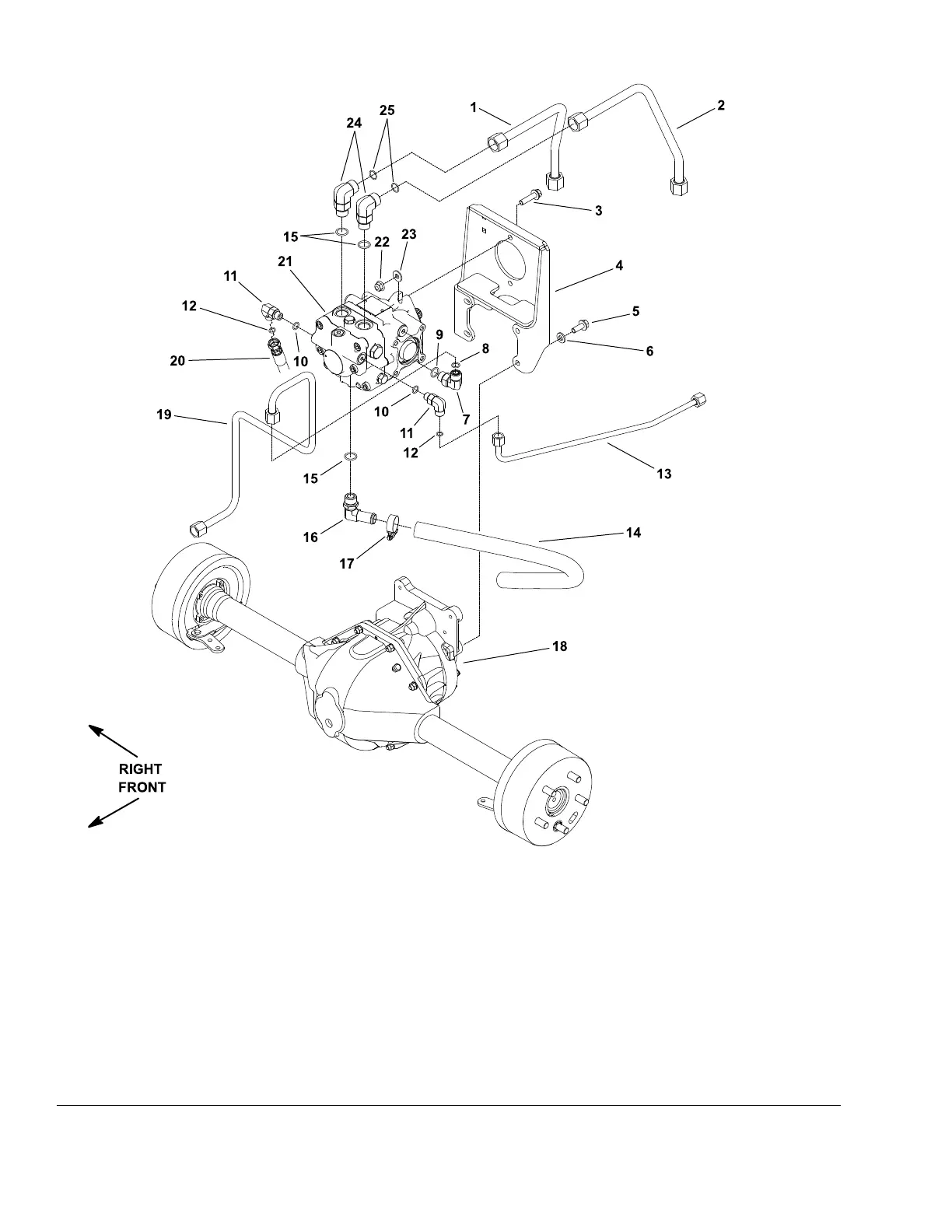

HydraulicPump(MachineSerialNumberabove316000000)

g224765

Figure87

1.Hydraulictube

10.O-ring(2each)

19.Hydraulictube

2.Hydraulictube

11.90°hydraulictting(2each)

20.Hydraulichose

3.Flange-headscrew(2each)12.O-ring(2each)

21.Hydraulicpump

4.PumpBracket13.Hydraulictube

22.Flangenut(2each)

5.Flange-headscrew(4each)14.Suctionhose23.Flatwasher(2each)

6.Hardenedwasher

15.O-ring(3each)24.90°hydraulictting(2each)

7.90°hydraulictting16.90°hydraulictting25.O-ring(2each)

8.O-ring

17.Hoseclamp

9.O-ring

18.Frontaxle

HydraulicSystem:ServiceandRepairs

Page5–100

Groundsmaster

3280-D/3320

05138SLRevB
