PTOSwitch

g226809

Figure133

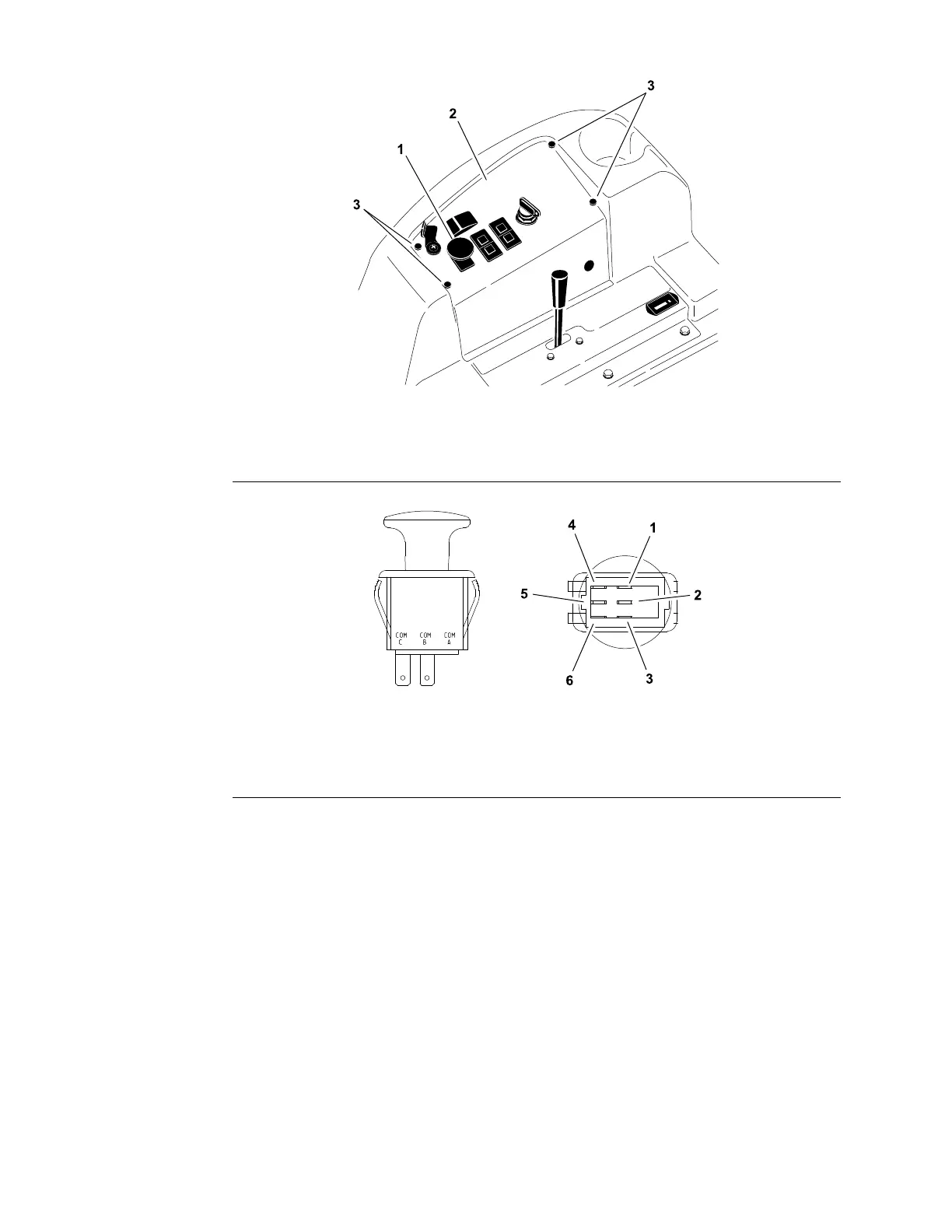

1.PTOswitch2.Controlpanel3.Thumbscrew(4each)

g227536

Figure134

1.COMBterminal3.NCBterminal5.NOCterminal

2.NOBterminal4.COMCterminal6.NCCterminal

ThePTOswitchislocatedonthecontrolpanel(Figure133).PullupthePTO

switchtoengagethePTOelectricclutch.

TheStandardControlModule(SCM)monitorsthepositionofthePTOswitch

(upordown).UsingtheinputsfromthePTOswitchandotherswitchesinthe

interlocksystem,theSCMcontrolstheenergizingoftheelectricPTOclutchand

thus,thePTO.IfthekeyswitchisintheONpositionandthePTOswitchis

engaged,theSCMPTOswitchinputLEDshouldbeilluminated.

ElectricalSystem:TestingtheElectricalComponents

Page6–32

Groundsmaster

3280-D/3320

05138SLRevB
