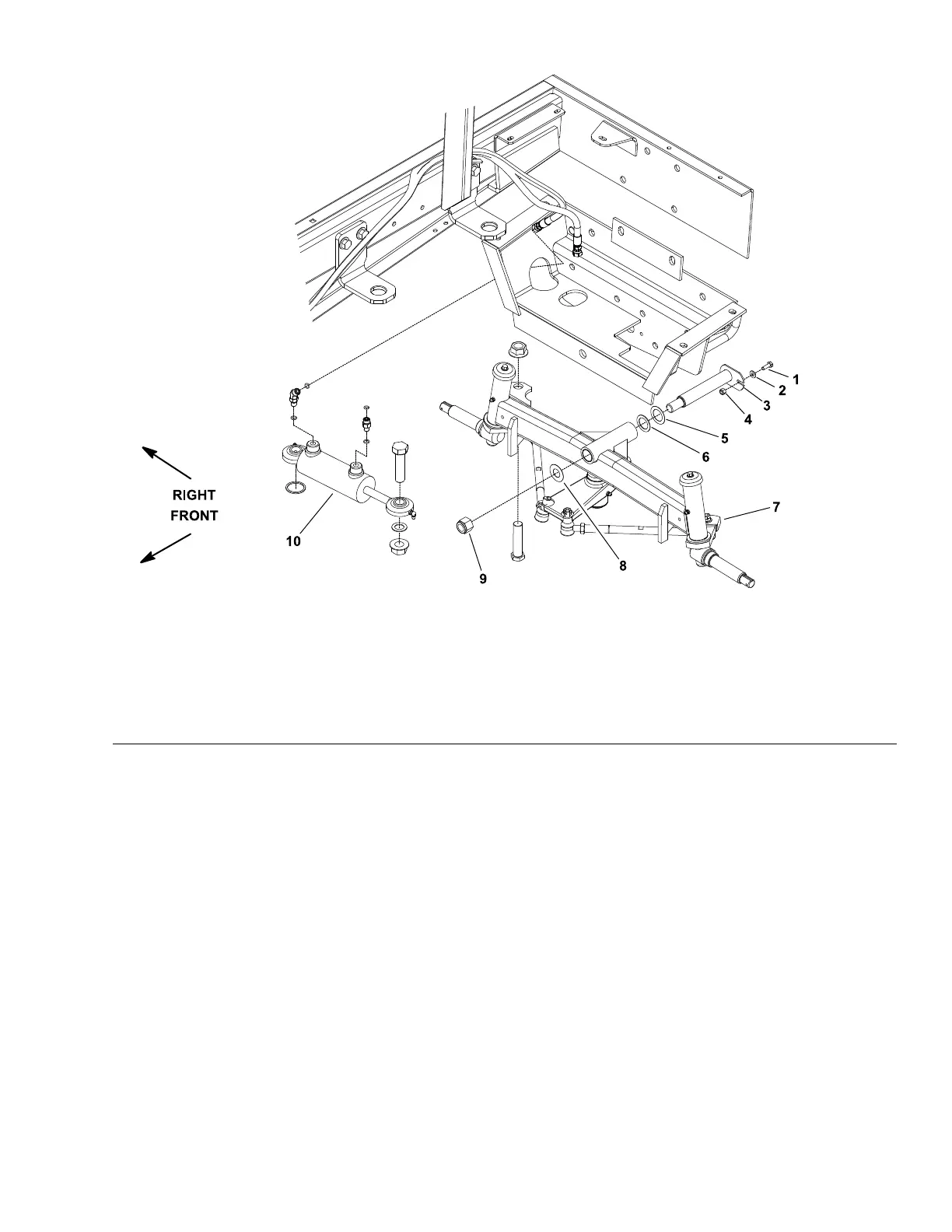

RearAxle(2-WheelDrive)

g223700

Figure181

1.Bolt4.Locknut7.Rearaxle

10.Steeringcylinder

2.Flatwasher5.Flatwasher

8.Thrustwasher(0.766

inchinnerdiameter)

3.Pivotpin

6.Thrustwasher(1.030

inchinnerdiameter)

9.Locknut

Note:Forrepairinformationregardingtherearaxleon4-wheeldrivemachines;

refertoChapter8:DriveAxles(page8–1).

RemovingtheRearAxle

1.Parkthemachineonalevelsurface,lowerthecuttingdeck(orimplement),

shutofftheengine,settheparkingbrake,andremovethekeyfromthe

keyswitch.

Note:Forassemblypurposes,tagthehydraulichosestoshowtheircorrect

positiononthesteeringcylinder.

2.Disconnectthehydraulichosesfromthesteeringcylinder.Installcleancaps

orplugsonthehydraulichosesandttingstopreventsystemcontamination.

3.Removethelocknut(item9inFigure181)thatsecurestheendoftheaxle

pivotpintotherearframe.

4.Raisethemachine(justaheadoftherearwheels)untilpressureistaken

offtheaxlepivotpin.Supportthemachinewithjackstandstopreventit

fromfalling.

5.Removethelocknut(item4inFigure181),bolt,andatwasherthatsecure

thepivotpintotherearframe.

Groundsmaster

3280-D/3320

Page7–11

Chassis:ServiceandRepairs

05138SLRevB
