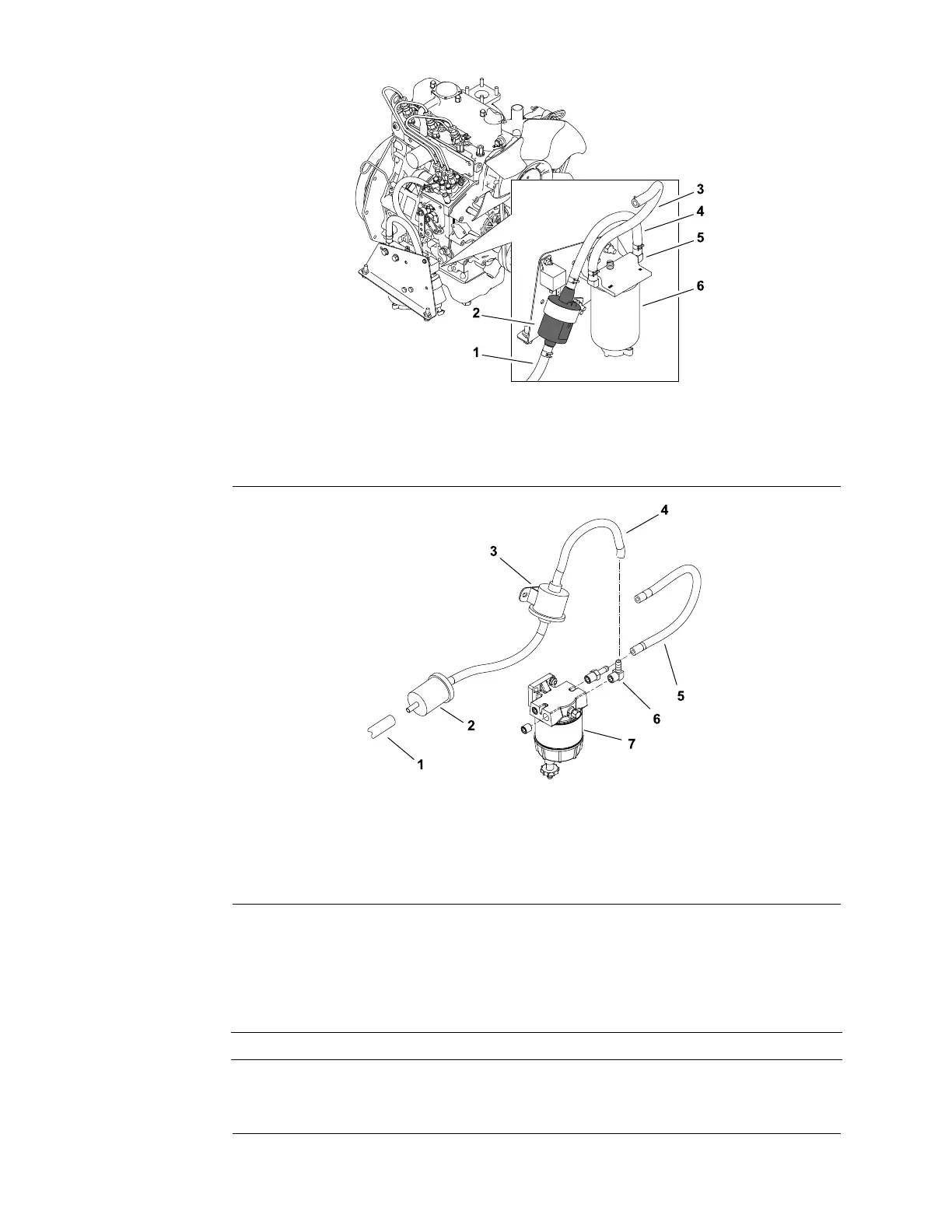

FuelPump(Groundsmaster3280-D)

g225173

Figure170

1.Fuelhose(fromtank)3.Fuelhose(fromengine)5.Inlettting

2.Fuelpump4.Pumpdischargehose

6.Fuel/waterseparator

g230997

Figure171

1.Fuelhose(fromtank)

4.Pumpdischargehose

7.Fuel/waterlter

2.Fuellter5.Fuelhose(toengine)

3.Fuelpump

6.Inlettting

ThefuelpumpusedontheGroundsmaster3280-D(forModels30344and

30345)isattachedtothesupportbracketinsidetherightsideframenearthe

fuel/waterseparator(Figure170).ThefuelpumpusedontheGroundsmaster

3280-D(exceptModels30344and30345)isattachedtothesupportbracket

insidetherightsideframenearthefuel/waterlter(Figure171).

IMPORTANT

Whentestingthefuelpump,ensurethatthepumpisnotoperated

withoutfuel.

ElectricalSystem:TestingtheElectricalComponents

Page6–70

Groundsmaster

3280-D/3320

05138SLRevB
