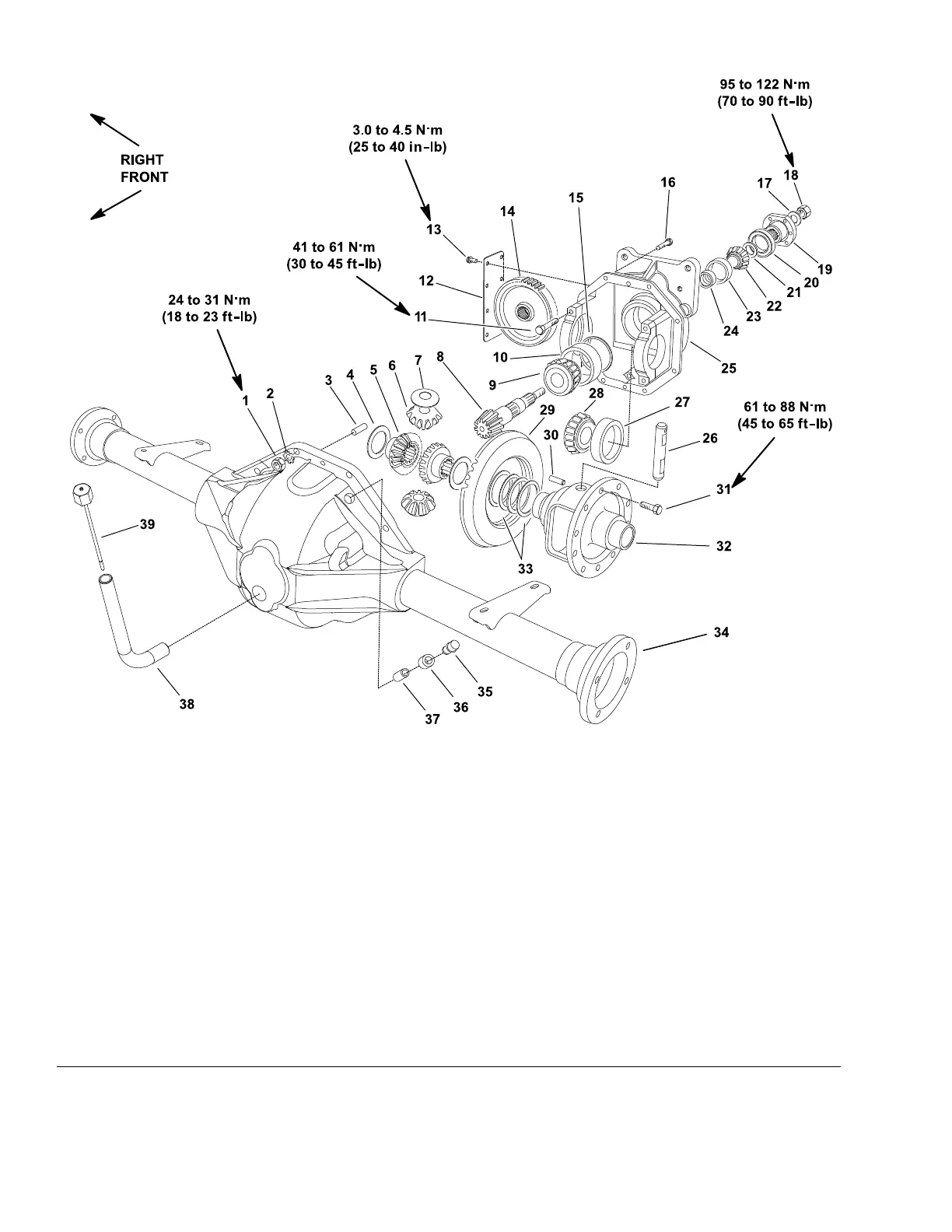

ServicingtheFrontAxle

g226662

Figure214

1.Hexnut(8each)14.Spurgear27.Differentialbearingcup(2each)

2.Lockwasher(8each)

15.Shim28.Differentialbearingcone(2each)

3.Dowelpin(2each)16.Bolt(8each)

29.Ringgear

4.Thrustwasher(2each)

17.Washer30.Lockpin

5.Sidebevelgear(2each)

18.Nut

31.Bolt(5each)

6.Pinionmatebevelgear(2each)

19.Flangecoupler

32.Differentialcase

7.Sphericalthrustwasher(2each)

20.Seal33.Shimpack

8.Drivepinion

21.Shimpack

34.Frontaxlehousing

9.Bearingcone

22.Outerbearingcone

35.Vent

10.Bearingcup

23.Outerbearingcup

36.Fitting

11.Bolt(4each)

24.Bearingspacer37.Pipenipple

12.Gearcover25.Rearaxle(carrier)housing38.Oillltube

13.Screw(8each)26.Pinionmateshaft

39.Dipstick

DriveAxles:ServiceandRepairs

Page8–22

Groundsmaster

3280-D/3320

05138SLRevB
